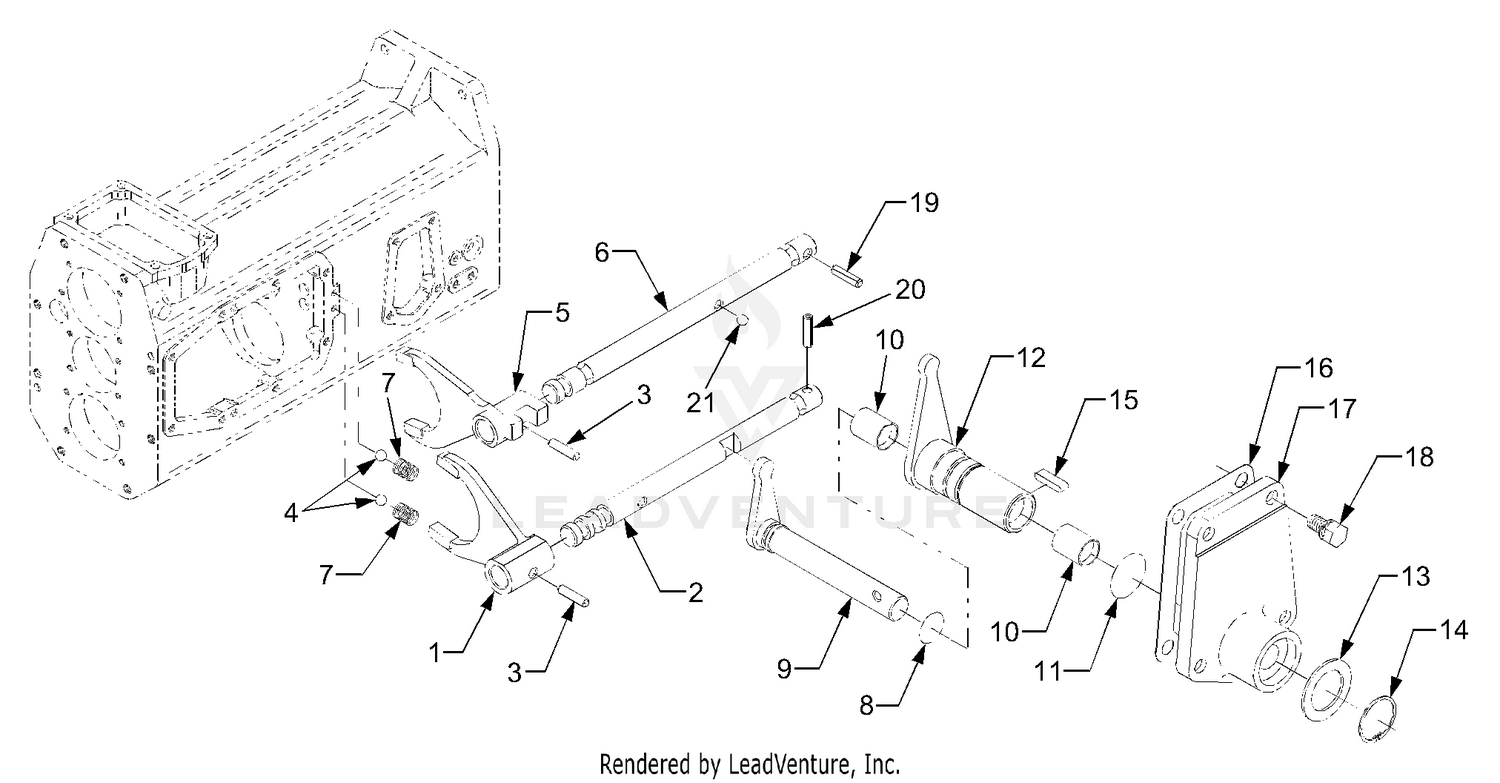

Hi-Low Fork Lever Group
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106860X | TINE ASSY RH Price: Call Us |
| 1 | 76-4950 | NUT-FLANGE Price: $12.75 |
| 1 | DD-T4620-23112 | FORK-SHIFT HI-LO Not Available Price: |
| 2 | 4921H | SPRING.RETAINER Price: Call Us |
| 2 | 76-4940 | PULLEY-PUMP Price: $196.38 |
| 2 | DD-T4620-23125 | ROD-HI LO SHIFT Not Available Price: |
| 3 | 106858X | TINE ASSY RH Price: Call Us |
| 3 | 94-3220 | DISCONTINUED Price: Call Us |
| 3 | DD-05411-00625 | SPRING PIN Not Available Price: |
| 4 | 106857X | TINE INN LH TI Price: Call Us |
| 4 | 94-3225 | SCREW-HH Price: $2.10 |
| 4 | DD-07715-00803 | DETENT BALL Not Available Price: |
| 5 | 106859X | TINE ASS'Y LH Price: Call Us |
| 5 | 76-4930 | WASHER Price: $0.93 |
| 5 | DD-T4620-23154 | FORK-SHIFT CREEP Not Available Price: |
| 6 | 94-3165 | NUT-HEX Price: $2.34 |
| 6 | DD-T4620-23164 | ROD-CREEP SHIFT Not Available Price: |
| 7 | 74-8610 | PIN-SPRING Price: $2.73 |
| 7 | DD-T4620-23363 | DETENT SPRING Not Available Price: |
| 8 | 74-8630 | BUSHING-FLANGE Price: $6.93 |
| 8 | DD-04811-00160 | O-RING Not Available Price: |
| 9 | 94-3224 | WASHER-PLATE Price: $0.57 |
| 9 | DD-T4620-23262 | SHIFT ARM HI-LO Not Available Price: |
| 10 | 94-3164 | WASHER-SPRING Price: $1.20 |
| 10 | DD-08511-01825 | SHIFT ARM BUSHING Not Available Price: |
| 11 | 94-3221 | SCREW-HH Price: $9.64 |
| 11 | DD-04811-06260 | O-RING Not Available Price: |
| 12 | 74-8650 | PACER Price: $2.36 |
| 12 | DD-T4620-23277 | SHIFT ARM CREE Not Available Price: |
| 13 | 74-8670 | FUEL INLET ASM Price: $66.08 |
| 13 | DD-T4240-23141 | Washer Price: Call Us |
| 14 | 74-8680 | GASKET Price: $5.51 |
| 14 | DD-04612-50300 | SNAP RING Not Available Price: |
| 15 | 48-7880 | NUT-HEX This part replaces 94-3251. Price: $0.25 |
| 15 | DD-05912-00520 | SQUARE KEY Not Available Price: |
| 16 | 3255-10 | WASHER-LOCK / EXT This part replaces 74-8710. Price: $0.25 |
| 16 | DD-T4620-23221 | GASKET-HI LO SHIFT Not Available Price: |
| 17 | 98-8806 | SOLENOID VALVE This part replaces 93-5856. Price: $251.17 |
| 17 | DD-T4620-23213 | COVER-HI LO SHIFT Not Available Price: |
| 18 | 94-3274 | O-RING Price: $4.19 |
| 18 | DD-01133-51030 | HEX BOLT Not Available Price: |
| 19 | 94-3219 | DISCONTINUED Price: Call Us |
| 19 | DD-05411-00625 | SPRING PIN Not Available Price: |
| 20 | 94-3222 | KEY Price: $5.03 |
| 20 | DD-05411-00625 | SPRING PIN Not Available Price: |
| 21 | 74-8870 | DISCONTINUED Price: Call Us |
| 22 | 94-3249 | TUBE-OUTLET Price: $52.36 |
| 23 | 94-3250 | SCREW Price: $78.40 |
| 24 | 94-3161 | DISCONTINUED Price: Call Us |
| 25 | 94-3223 | SCREW-HH Price: $11.01 |
| 26 | 76-4910 | STUD Price: $1.24 |
| 27 | 94-9969 | SCREW-CONNECTION Price: $16.10 |
