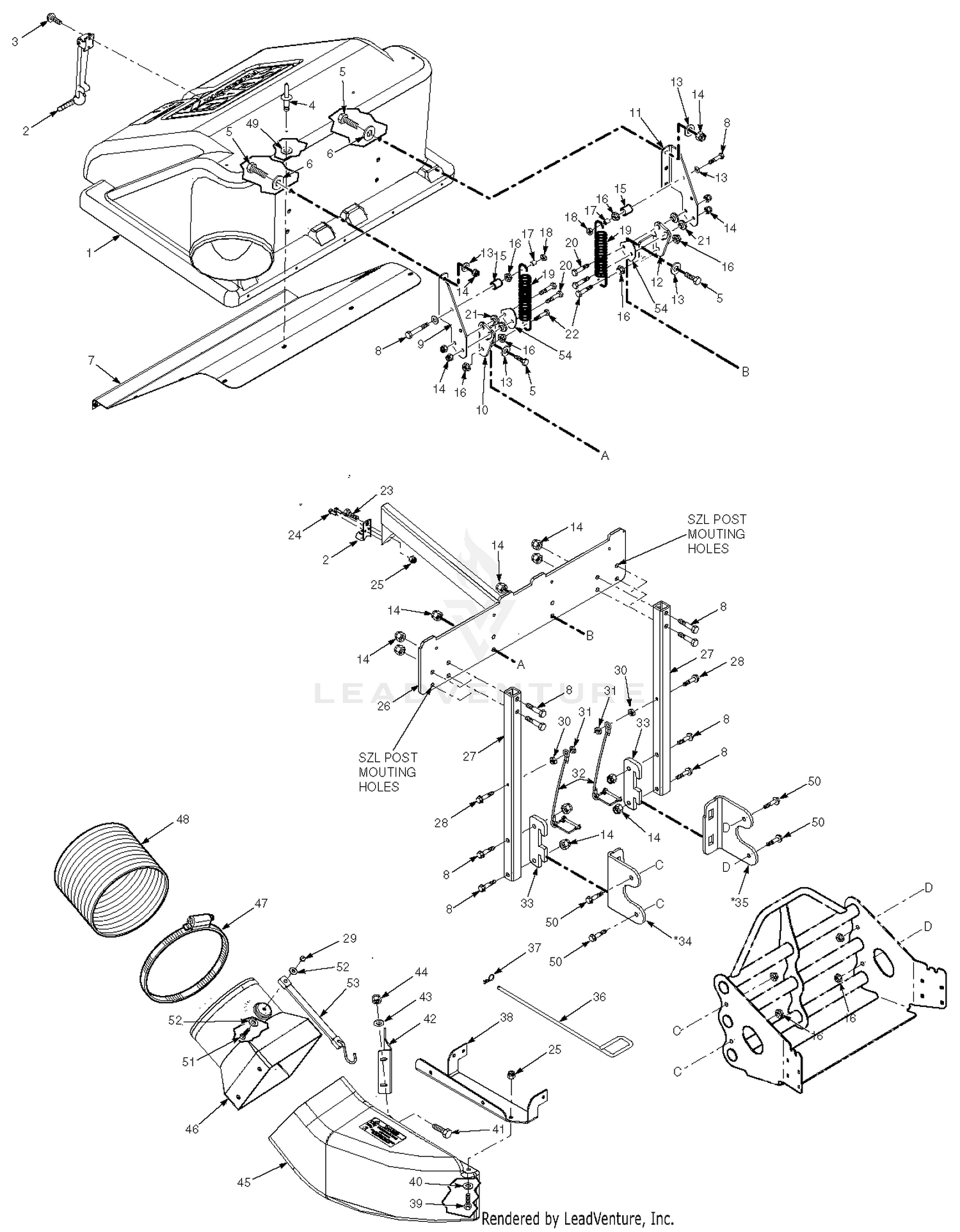

| Ref | Part Number | Description |
|---|
| 2 |
482409 |
Latch Price: Call Us |
| 3 |
04010-25 |
Screw, #10-32 x 3/4" Price: Call Us |
| 3 |
04021-01 |
Nut, Elastic Stop #10-32 Price: Call Us |
| 3 |
04041-09 |
Flatwasher, 3/8-.193 x .496 x .048 Price: Call Us |
| 4 |
04090-02 |
Pop Rivet, 3/16 x .652 Price: Call Us |
| 5 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 6 |
04041-11 |
Flatwasher, 3/8-.406 x 1.5 x 7 Ga. Price: Call Us |
| 7 |
424731 |
Screen, GC Hood Price: Call Us |
| 8 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 9 |
425831 |
Hinge, Upper RH Price: Call Us |
| 10 |
425829 |
Hinge, Lower RH Price: Call Us |
| 11 |
425830 |
Hinge, Upper LH Price: Call Us |
| 12 |
425828 |
Hinge, Lower LH Price: Call Us |
| 13 |
04041-01 |
Flatwasher, 3/8-391 x .938 x .105 Price: Call Us |
| 14 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 15 |
43277 |
Spacer Price: Call Us |
| 16 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 17 |
43212 |
Spacer, Deck Assist Price: Call Us |
| 18 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 19 |
482304 |
Spring Price: Call Us |
| 20 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 21 |
43546 |
Bushing, Hopper Pivot Price: Call Us |
| 22 |
04001-135 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 23 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 24 |
04090-03 |
Pop Rivet, 3/16 x .402 Price: Call Us |
| 25 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 26 |
451959 |
Frame Weldment, Bag Support Price: Call Us |
| 27 |
424750 |
Tube, Grass Catcher Mount Price: Call Us |
| 28 |
04001-03 |
Bolt, Hex Head 1/4-20 x 2" Price: Call Us |
| 29 |
04021-08 |
Nut, Elastic Stop 1/4-20 Price: Call Us |
| 30 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 31 |
04021-02 |
Nut, Center Lock 1/4-20 Price: Call Us |
| 32 |
485859 |
Snap Pin Assembly w/Lanyard Price: Call Us |
| 33 |
424752 |
Latch, GC Price: Call Us |
| 36 |
44166 |
Latch Pin, GC Chute Price: Call Us |
| 37 |
04062-02 |
Hair Pin Cotter Price: Call Us |
| 38 |
424734 |
Bracket, GC Boot - 48", 52" & 61" Deck Price: Call Us |
| 38 |
424915 |
Bracket, GC Boot - 36" Deck Price: Call Us |
| 39 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 40 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 Price: Call Us |
| 41 |
04001-14 |
Bolt, Hex Head 1/4-20 x 1" Price: Call Us |
| 42 |
424348 |
Baffle, Boot Deflector - 61" Deck Price: Call Us |
| 42 |
424735 |
Baffle, Boot Deflector - 48" Deck Price: Call Us |
| 42 |
424754 |
Baffle, Boot Deflector - 36" Deck Price: Call Us |
| 43 |
04040-14 |
Flatwasher, 1/4-.312 x .750 x .065 Price: Call Us |
| 44 |
04021-08 |
Nut, Elastic Stop 1/4-20 Price: Call Us |
| 45 |
462048 |
Boot Assembly Price: Call Us |
| 46 |
461723 |
Adapter w/Strap Price: Call Us |
| 47 |
48136-02 |
Clamp, 8.62" Max Dia. Price: Call Us |
| 48 |
48135-09 |
Hose. 8" x 53" Price: Call Us |
| 49 |
04041-19 |
Flatwasher, 3/16-.196 x .469 x .048 Price: Call Us |
| 50 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 51 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 52 |
04040-14 |
Flatwasher, 1/4-.312 x .750 x .065 Price: Call Us |
| 53 |
48137-04 |
Rubber Strap Price: Call Us |
