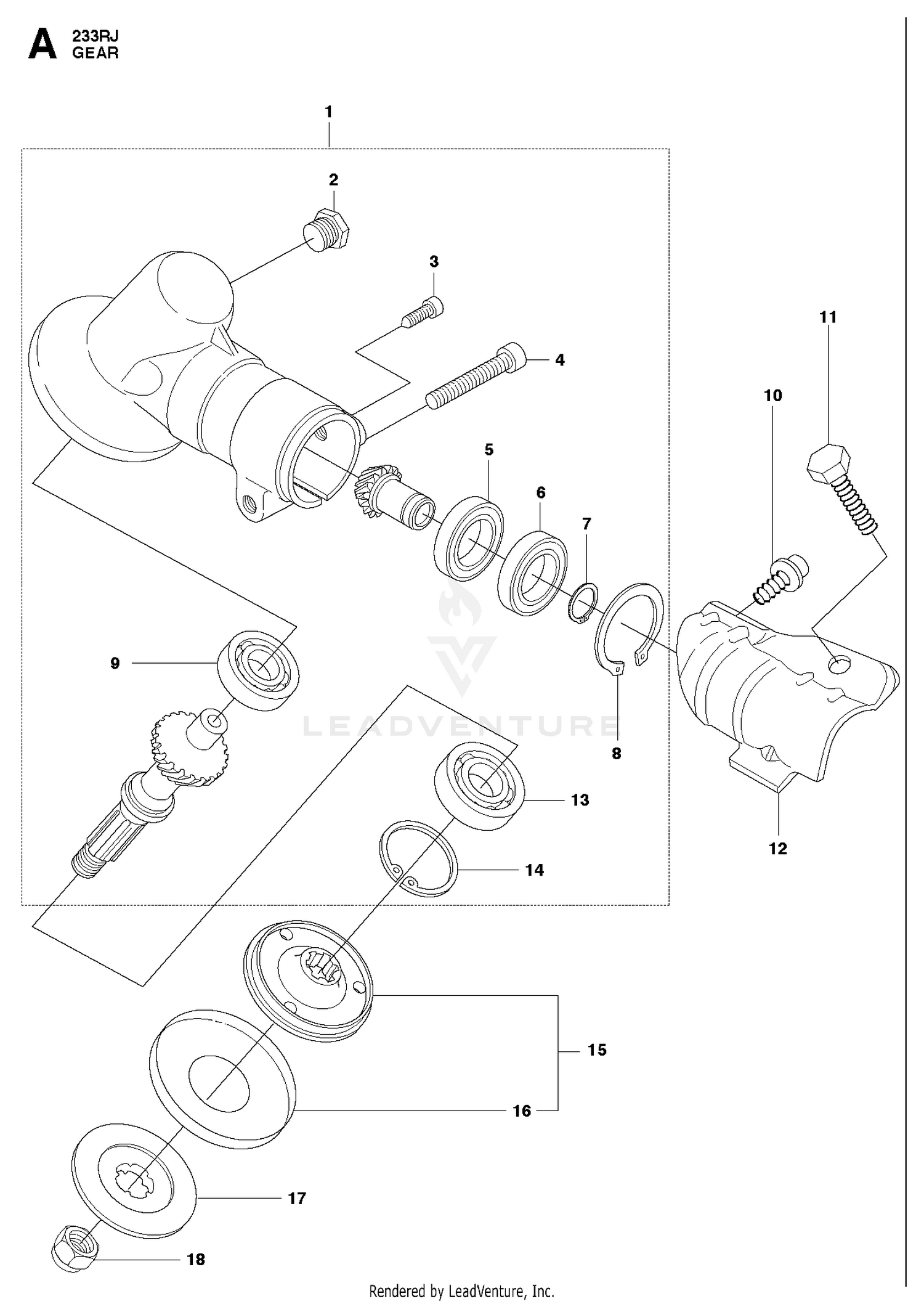

| Ref | Part Number | Description |
|---|
| 1 |
21-1880 |
GRIP-HANDLE Price: $11.67 |
| 1 |
537333202 |
GEARCASE-A Price: $109.99 |
| 2 |
42-3560 |
BOLT-SHOULDER Price: $4.85 |
| 2 |
503201501 |
PLUG Price: $4.99 |
| 3 |
106-8860-03 |
ARM-CONTROL, DEPTH Price: $35.01 |
| 4 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 5 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 5 |
738219900 |
BALL BEARING 24X9X1/609ZR Price: $6.99 |
| 6 |
738219902 |
BEARING Price: $17.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
735311100 |
RETAINING RING Price: $2.99 |
| 8 |
735312510 |
RETAINING RING Price: $2.99 |
| 8 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 9 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 9 |
738219800 |
BALL BEARING 8X22X7/608Z Price: $6.99 |
| 10 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 11 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 12 |
574306904 |
CLAMP This part replaces 503935501. Price: $11.99 |
| 12 |
66-9010 |
SPRING-COMPRESSION Price: $18.60 |
| 13 |
106-8865-03 |
SUPPORT-CONTROL, DEPTH Price: $70.17 |
| 13 |
525831801 |
HOLDER BALL BEARING This part replaces 503252401. Price: $14.99 |
| 14 |
108-2129 |
HOUSING-CONTROL, DEPTH Price: $279.10 |
| 14 |
735312810 |
RETAINING RING SGH 28 Price: $3.99 |
| 15 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
537234901 |
DRIVE DISC Price: $19.99 |
| 16 |
106-8864 |
ACTUATOR-SWITCH Price: $20.04 |
| 16 |
537234901 |
DRIVE DISC This part replaces 537292601. Price: $19.99 |
| 17 |
106-8863 |
SPACER-CONTROL, DEPTH Price: $27.87 |
| 17 |
537285601 |
SUPPORT FLANGE Price: $9.99 |
| 18 |
106-8871 |
BEARING-BALL Price: $25.32 |
| 18 |
503856301 |
GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 19 |
106-8872 |
RING-RETAINING Price: $10.32 |
| 20 |
106-8861-03 |
ARM-ACTUATOR, SWITCH Price: $28.43 |
| 21 |
3230-33 |
SCREW-CARR Price: $0.47 |
| 22 |
237-33 |
O-RING Price: $11.26 |
