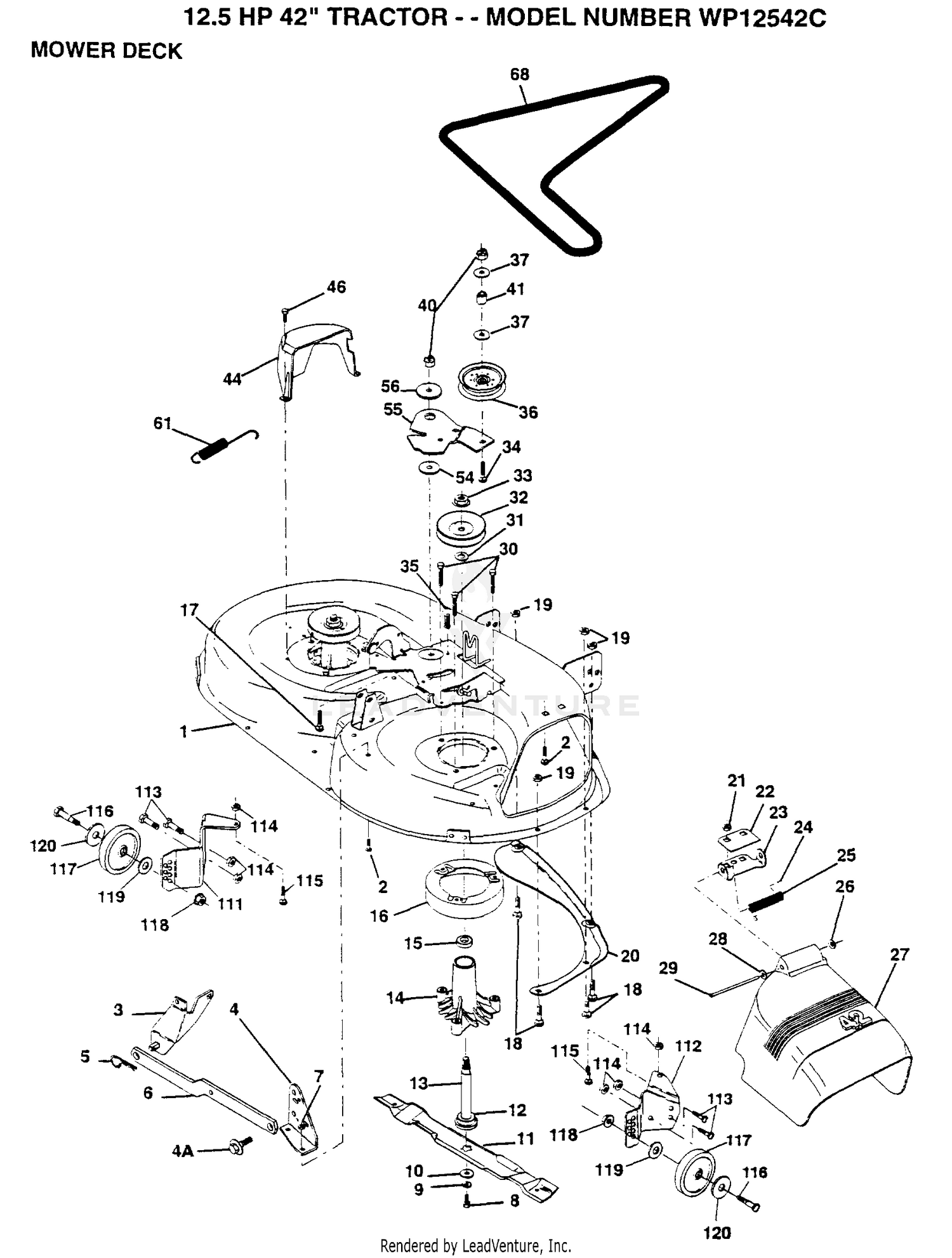

| Ref | Part Number | Description |
|---|
| 1 |
140081 |
SUB= 144393 Price: Call Us |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 4A |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 5 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 7 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 7 |
7380050 |
NUT LK HEX W/INS 5/16-18 UNC P Price: Call Us |
| 8 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 11 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 16 |
140389 |
STRIPPER Price: Call Us |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 17 |
72110622 |
BOLT Price: Call Us |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
105-0138-03 |
STABILIZER Price: $159.95 |
| 19 |
73800500 |
NUT Price: Call Us |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 21 |
73800500 |
NUT Price: Call Us |
| 22 |
100-3868-03 |
BRACKET-TIPPER Price: $64.55 |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
75-5390 |
ROLLER Price: $56.69 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
129861 |
SUB= 153535 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 40 |
73800600 |
NUT Price: Call Us |
| 41 |
132823 |
SUB= 532132823 Price: Call Us |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
140084 |
SUB= 151785 Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 61 |
131950 |
SPRING.EXTENSION Price: Call Us |
| 68 |
140067 |
BELT-V MWR 82.625 Price: Call Us |
| 111 |
140353 |
SUB= 155197 Price: Call Us |
| 112 |
132262 |
SUB= 155198 Price: Call Us |
| 113 |
74760512 |
BOLT Price: Call Us |
| 114 |
73510500 |
NUT Price: Call Us |
| 115 |
72110504 |
SUB= 872110504 Price: Call Us |
| 116 |
4898H |
BOLT M Price: Call Us |
| 117 |
105455X |
WHEEL.GAGE.BLK.PL Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 120 |
19171512 |
WASHER Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
