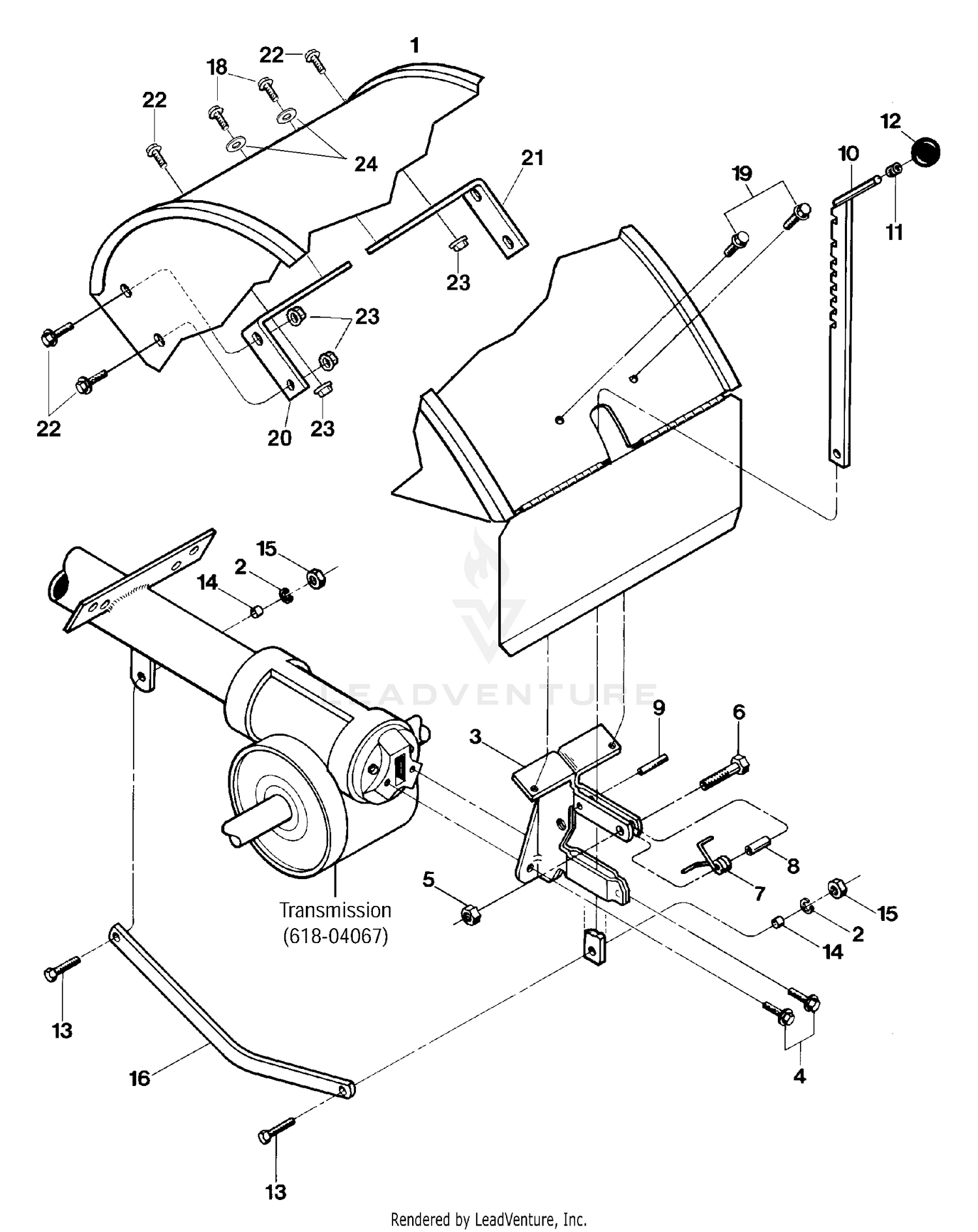

| Ref | Part Number | Description |
|---|
| 1 |
986-04021 |
HOOD W/DECALS RED Not Available This part replaces 686-04021. Price: |
| 2 |
736-0169 |
Lockwasher, 3/8 Price: $3.33 |
| 3 |
GW-2527 |
Bracket, Hood & Depth Regulator Price: $139.01 |
| 5 |
712-0291 |
Hex Lock Nut, 1/4-20 Price: $3.93 |
| 7 |
732-04320 |
Torsion Spring This part replaces GW-9384. Price: $3.85 |
| 8 |
GW-9534 |
Spacer Price: $3.70 |
| 9 |
715-04034 |
ROLL PIN This part replaces 1185469. Price: $6.01 |
| 10 |
1916186001 |
BAR ASSEMBLY, DEPTH ADJUSTMENT Not Available Price: |
| 11 |
GW-9120 |
Retaining Ring (Tolerance Ring) Price: $5.94 |
| 12 |
GW-9119 |
Knob, Depth Regulator Price: $10.22 |
| 14 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces GW-1113-1. Price: $4.53 |
| 15 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 16 |
1916185001 |
DRAG BAR Not Available This part replaces GW-20775. Price: |
| 20 |
1916700001 |
BRACKET- SUPPORT, LEFT Not Available Price: |
| 21 |
1916701001 |
BRACKET- SUPPORT, RIGHT Not Available Price: |
| 22 |
710-04049 |
Flange Screw, 5/16-18,.625, Gr5 This part replaces 1186328. Price: $4.11 |
| 23 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 24 |
736-0242 |
Bell Washer Price: $3.75 |
