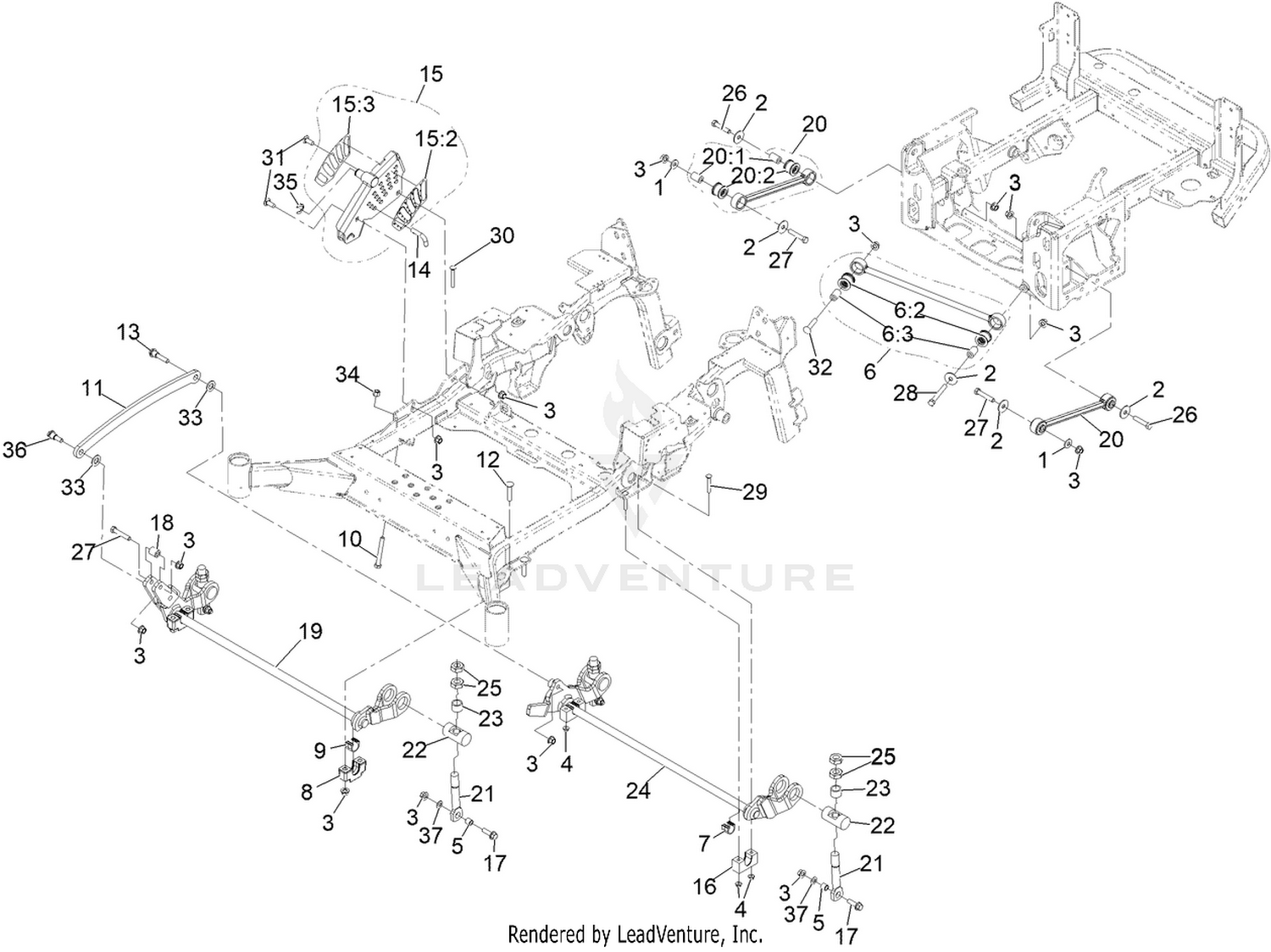

| Ref | Part Number | Description |
|---|
| 1 |
1-513435 |
WASHER-SPRING Price: $4.99 |
| 2 |
86-1990 |
WASHER-THRUST Price: $3.69 |
| 3 |
99-5107 |
Nut-Lock 1/2-13 Price: $1.69 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.19 |
| 5 |
108-8483 |
SPACER-PLAIN Price: $9.99 |
| 6 |
109-5013 |
PANHARD ROD ASM Price: $135.99 |
| 7 |
109-7173 |
BEARING-CROSS SHAFT, REAR Price: $4.79 |
| 8 |
109-9409 |
SUPPORT-CROSS SHAFT, BEARING Price: $13.99 |
| 9 |
109-9410 |
BEARING-CROSS SHAFT, FRON Price: $4.79 |
| 10 |
116-0559 |
BOLT-TAP Price: $5.89 |
| 11 |
116-0797-03 |
LINK-LIFT, DECK Price: $126.99 |
| 12 |
116-1700 |
Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck Price: $4.79 |
| 13 |
116-2022 |
SCREW-HHF, SHOULDER Price: $8.29 |
| 14 |
116-5584 |
PIN-HOC Price: $4.69 |
| 15 |
126-7866 |
HOC ASM Price: $297.99 |
| 16 |
142-8321 |
SUPPORT-CROSS SHAFT Price: $59.99 |
| 17 |
130-6481 |
SCREW-HHF Price: $4.29 |
| 18 |
135-1215 |
SPACER-PIVOT Price: $12.99 |
| 19 |
142-8093-03 |
DECKLIFT-FRONT, 144 [BLACK] Price: $533.99 |
| 20 |
142-4003 |
DECK STRUT ASM 85A Price: $38.99 |
| 21 |
142-7187 |
LINK, DECK LIFT ADJUSTER Price: $100.99 |
| 22 |
142-7188 |
TRUNNION, DECK LIFT Price: $68.99 |
| 23 |
142-7192 |
SPACER, DECK LINK Price: $14.99 |
| 24 |
142-7197-03 |
WLD, DECK LIFT-REAR Price: $533.99 |
| 25 |
142-7212 |
NUT-HEX Price: $2.29 |
| 26 |
325-10 |
SCREW-HH Price: $5.09 |
| 27 |
325-11 |
SCREW-HH Price: $2.89 |
| 28 |
325-17 |
SCREW-HH Price: $5.69 |
| 29 |
3231-31 |
SCREW-CARR Price: $6.59 |
| 30 |
3231-10 |
SCREW-CARR Price: $4.19 |
| 31 |
3233-26 |
SCREW-CARR, SHORT NECK Price: $1.59 |
| 32 |
3233-34 |
SCREW-CARR Price: $8.99 |
| 33 |
3256-28 |
WASHER-FLAT Price: $3.29 |
| 34 |
3296-23 |
NUT-LOCK, NI Price: $0.89 |
| 35 |
32151-91 |
RING-RETAINING Price: $2.19 |
| 36 |
116-0780 |
SCREW-SHOULDER, HHF 1/2-13 X 1.12 Price: $7.99 |
