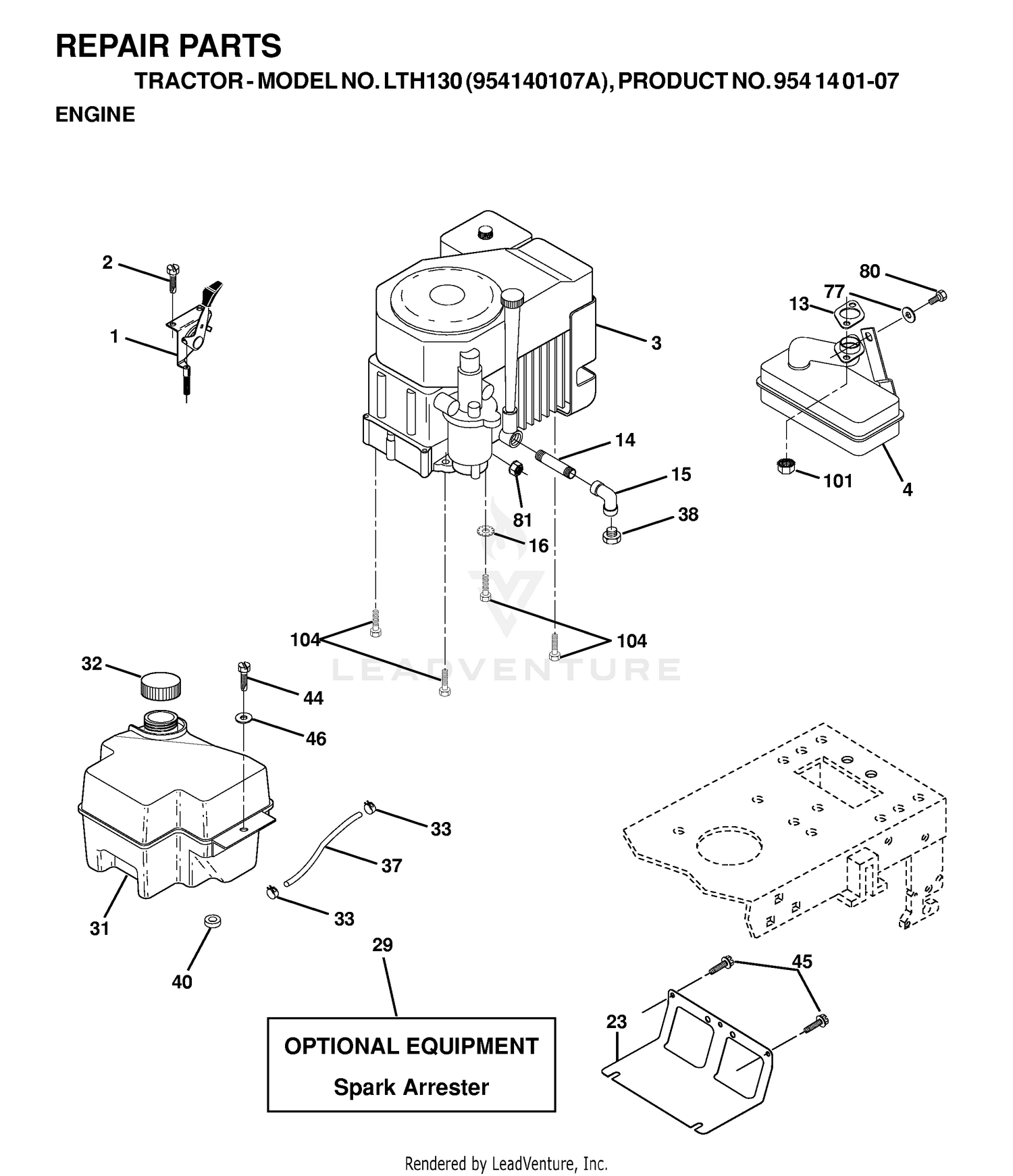

| Ref | Part Number | Description |
|---|
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
532159420 |
MUFFLER.KOHL.CV.SINGLE.W/PORT Price: $99.99 |
| 14 |
813280328 |
Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2 Price: $4.99 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532161911. Price: $59.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 80 |
874760508 |
Bolt, Hex Head, Fin. 5/16-18 x 1/2 Price: $3.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 104 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
