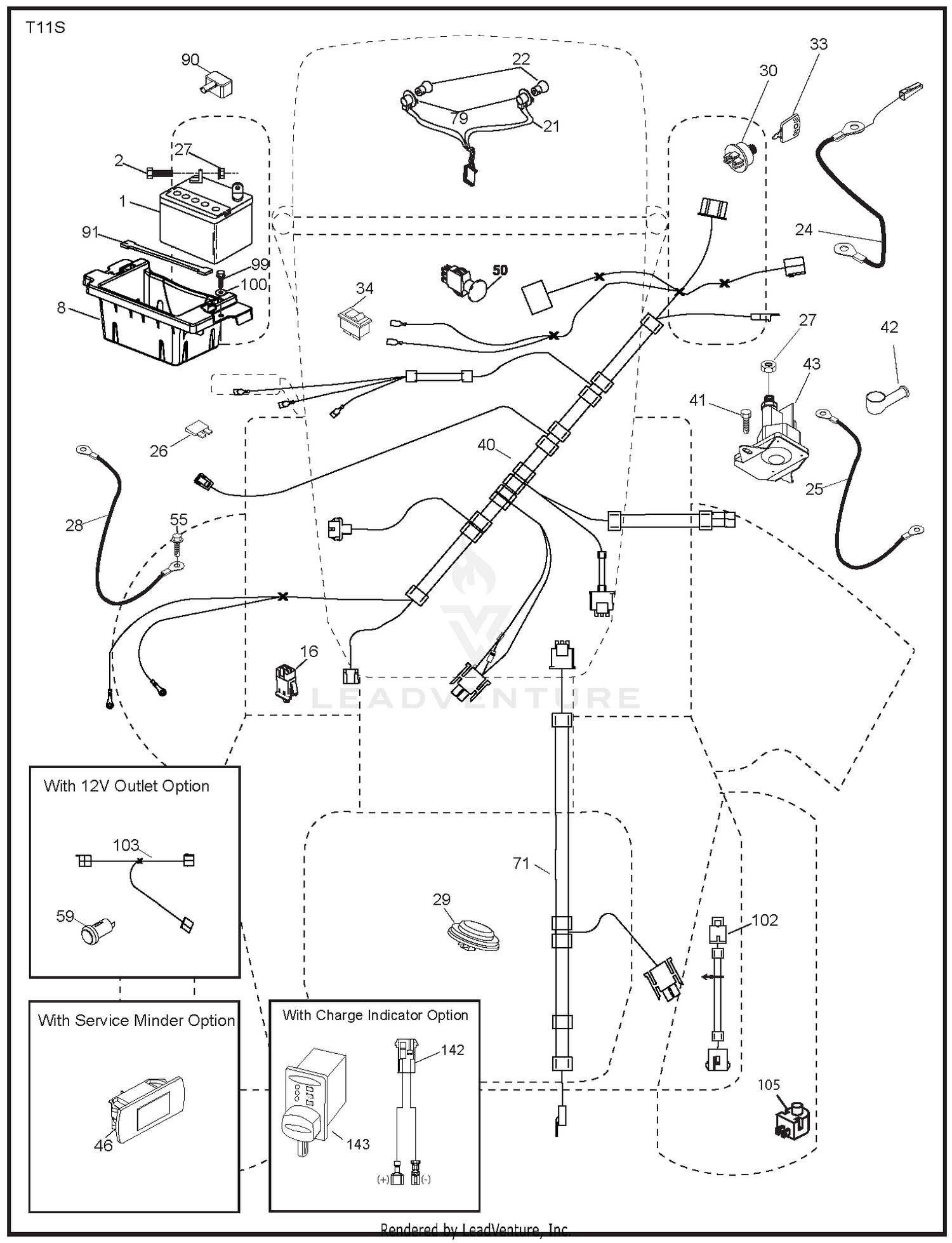

| Ref | Part Number | Description |
|---|
| 1 |
122-0723 |
HARNESS-WIRE, HEADLINER Price: $1,442.69 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
125-9606-03 |
BRACKET-FUSE BLOCK Price: $17.40 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
104-2408 |
SCREW-HSBH Price: $2.19 |
| 4 |
120-4578 |
NUT-HF Price: $0.41 |
| 5 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 6 |
130-0588 |
NUT-SWITCH Price: $2.99 |
| 7 |
42863 |
STRIP-JUMPER Price: $2.90 |
| 8 |
42862 |
BLOCK-TERMINAL, GROUND Price: $19.58 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 10 |
107-1013 |
NUT-SPEED Price: $2.89 |
| 11 |
609900 |
NUT-SPEED Price: $7.99 |
| 12 |
125-9603-03 |
PLATE-COVER, FUSE Price: $14.06 |
| 13 |
125-7438 |
KNOB-SCREW, THUMB Price: $2.73 |
| 14 |
32115-15 |
PUSHNUT-RETAINER, BOLT This part replaces 106-8737. Price: $0.99 |
| 15 |
121-8481 |
PANEL-AIR/HEAT Price: $48.23 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
122-0150 |
SWITCH, ROTARY Price: $26.70 |
| 18 |
125-9510 |
KNOB-CONTROL Price: $4.99 |
| 19 |
99-7420 |
PLUG-HOLE Price: $7.64 |
| 20 |
95-8999 |
SWITCH Price: $42.14 |
| 21 |
125-9691-03 |
PANEL-SWITCH, LIGHTS Price: $11.73 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
125-9688 |
DECAL-WASHER Price: $3.04 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
119-8355 |
SWITCH-ROCKER Price: $108.05 |
| 24 |
125-7437 |
LIGHT-DOME Price: $52.67 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
130-5867 |
COVER-LIGHT, REAR Price: $23.83 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
132-3600 |
DECAL-PANEL, FUSE Price: $4.13 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
130-0436 |
PANEL-SWITCH Price: $4.11 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
92-9698 |
SCREW-SHOULDER Price: $3.63 |
| 32 |
94-8196 |
WASHER-NYLON Price: $4.44 |
| 33 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
104-7201 |
NUT-HF Price: $0.69 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
581022701 |
HARNESS.IGN.DASH.HUSQ/PRED Price: $44.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532407962 |
HARNESS PIGTAIL 12V OUTLET Price: $8.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
| 142 |
583593501 |
CTEK CHARGE PORT W/HARNESS This part replaces 532448057. Price: $27.99 |
