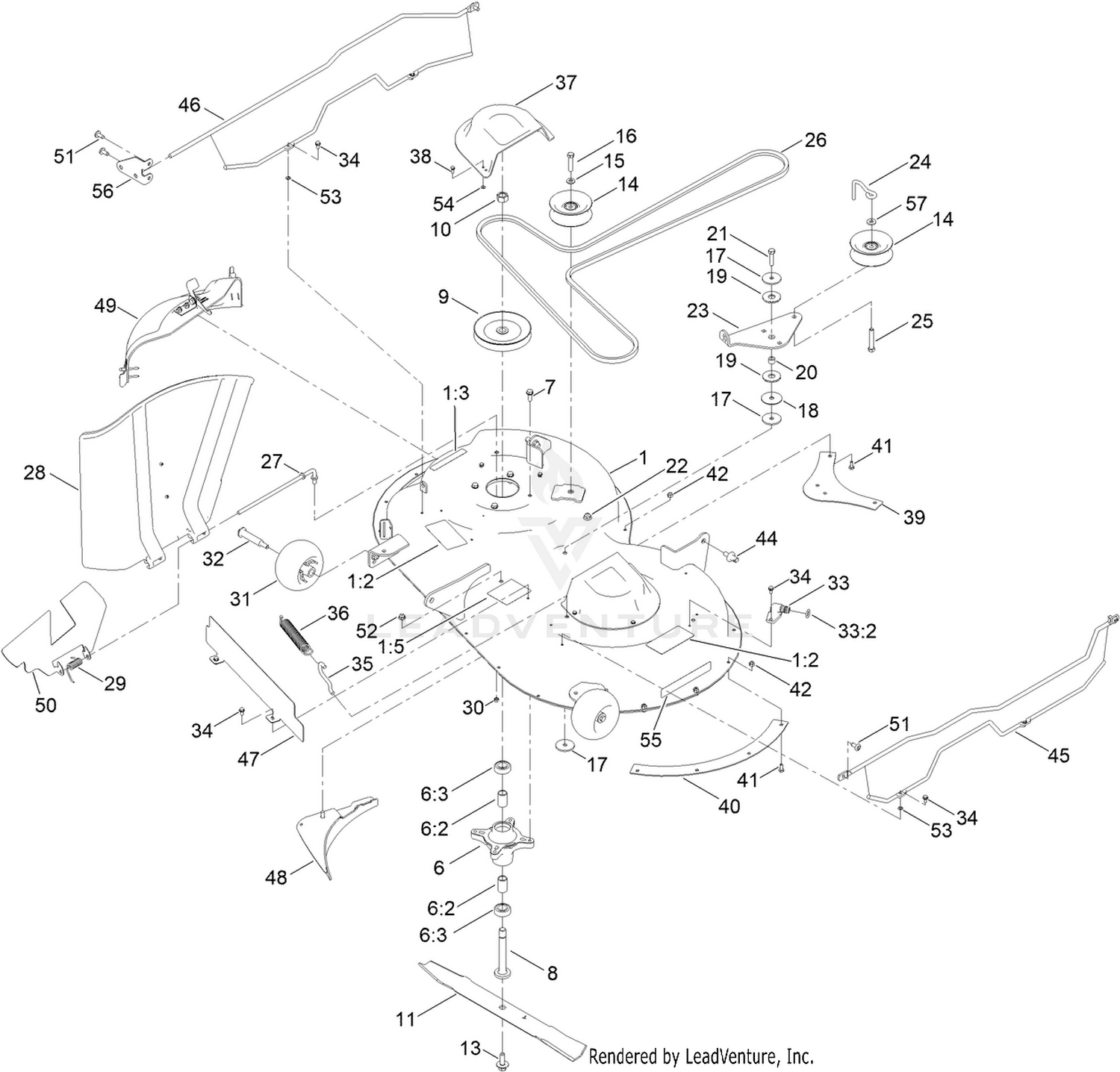

| Ref | Part Number | Description |
|---|
| 6 |
139-3214 |
SPINDLE ASM Price: $51.71 |
| 7 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 8 |
117-7268 |
SHAFT-SPINDLE Price: $19.98 |
| 9 |
139-2433 |
PULLEY Price: $26.14 |
| 10 |
139-2578 |
NUT-HEX Price: $0.90 |
| 11 |
117-5376-03 |
BLADE-MULCH Price: $20.79 |
| 13 |
145-0411 |
BOLT-BLADE, SEMS Price: Call Us |
| 14 |
132-9420 |
PULLEY-IDLER, FLAT Price: $25.16 |
| 15 |
115-1166 |
WASHER-FLAT Price: $3.08 |
| 16 |
138-0722 |
SCREW-HH Price: $0.80 |
| 17 |
139-1726 |
WASHER-REBOUND Price: $1.46 |
| 18 |
120-2229 |
WASHER Price: $1.27 |
| 19 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 20 |
115-4986 |
SPACER Price: $1.39 |
| 21 |
137-3070 |
SCREW-HH Price: $3.34 |
| 22 |
119-4042 |
NUT-HF, NI Price: $0.69 |
| 23 |
138-7262 |
ARM-IDLER Price: $12.02 |
| 24 |
138-7270 |
GUIDE-BELT, IDLER Price: $1.69 |
| 25 |
139-2589 |
SCREW-HH Price: $0.90 |
| 26 |
147-2924 |
V-BELT Price: Call Us |
| 27 |
137-2019 |
ROD-PIVOT Price: $8.15 |
| 28 |
137-7046 |
DEFLECTOR Price: $50.30 |
| 29 |
138-7268 |
SPRING-TORSION Price: $1.69 |
| 30 |
121-4600 |
NUT-HEX Price: $0.78 |
| 31 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 32 |
139-2551 |
BOLT-SHOULDER Price: $3.74 |
| 33 |
133-9289 |
FITTING-WASHOUT Price: $3.86 |
| 34 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 35 |
138-7267 |
HOOK-SPRING, RETURN Price: $1.12 |
| 36 |
138-7265 |
SPRING EXTENSION Price: $4.88 |
| 37 |
108-7889 |
COVER-BELT Price: $21.61 |
| 38 |
139-1713 |
SCREW-TAPTITE Price: $0.21 |
| 39 |
137-2036-03 |
BAFFLE-BLOWOUT, REAR Price: $11.94 |
| 40 |
137-2037-03 |
BAFFLE-BLOWOUT, SIDE Price: $6.91 |
| 41 |
137-3041 |
SCREW-HH Price: $0.39 |
| 42 |
137-3088 |
NUT-HEX Price: $0.39 |
| 44 |
139-5871 |
PIN-DECK Price: $1.66 |
| 45 |
140-0368 |
LEFT GUARD ASM Price: $31.32 |
| 46 |
140-0369 |
RIGHT GUARD ASM Price: $31.32 |
| 47 |
137-2039-03 |
SHIELD-FROUNT Price: $14.79 |
| 48 |
137-7034-03 |
BAFFLE-CLIPPING Price: $36.97 |
| 50 |
138-2555-03 |
DEFLECTOR INSERT Price: $17.19 |
| 51 |
138-9753 |
SCREW Price: $0.39 |
| 52 |
119-4041 |
NUT-HF Price: $0.48 |
| 53 |
1-803037 |
NUT-RETAINING Price: $1.39 |
| 54 |
132-0900 |
NUT-RETAINING Price: $0.36 |
| 55 |
119-2368 |
DECAL-RECYCLER Price: $3.60 |
| 56 |
140-5183-01 |
PLATE-MOUNT, GUARD Price: $9.51 |
