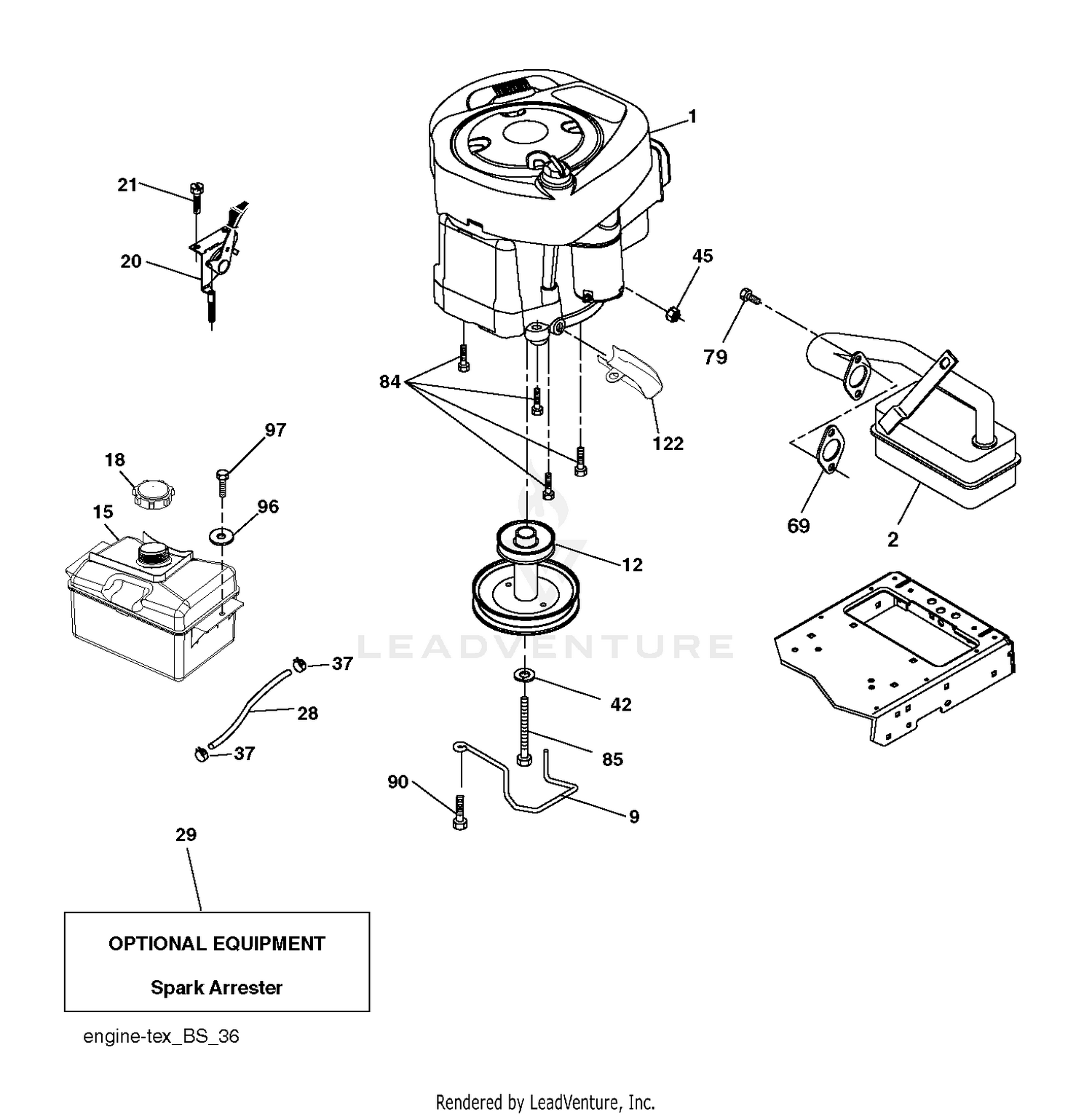

| Ref | Part Number | Description |
|---|
| 1 |
32128-23 |
NUT-HF Price: $1.51 |
| 2 |
532179758 |
MUFFLER.B&S.MODEL.21.11HP.OHV Price: $69.99 |
| 2 |
74-6260 |
DISCONTINUED Price: Call Us |
| 3 |
74-6270 |
TUBE - ASSY STR RH Price: $140.99 |
| 4 |
237-22 |
O-RING Price: $2.43 |
| 5 |
74-6450 |
BRACKET-BULKHEAD, STEERING Price: $44.73 |
| 6 |
340-70 |
NUT-LOCK Price: $2.10 |
| 7 |
76-6550 |
HOSE-HYD Price: $100.82 |
| 8 |
76-6900 |
DISCONTINUED Price: Call Us |
| 9 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
76-4260 |
BUSHING Price: $6.38 |
| 11 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 12 |
532140186 |
PULLEY.ENG.CL.MECH.SLVR.LT/YT Price: $99.99 |
| 12 |
76-6570 |
THRUST WASHER Price: $1.42 |
| 13 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 14 |
325-20 |
SCREW-HH Price: $6.29 |
| 15 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 16 |
76-4170 |
PLATE - AXLE PIVOT *B Price: $186.71 |
| 17 |
3234-27 |
SCREW-HHF Price: $5.97 |
| 18 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 20 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 22 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 23 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 24 |
74-5000 |
DISCONTINUED Price: Call Us |
| 25 |
74-5330 |
DISCONTINUED X-REF Price: Call Us |
| 26 |
253-129 |
SEAL Price: $21.73 |
| 27 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 28 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
21-2820 |
HUB Price: $269.34 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
74-5560 |
TIRE (20X8-10) 6-PLY Price: $118.04 |
| 31 |
217-122 |
DISCONTINUED Price: Call Us |
| 32 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 33 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 35 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 36 |
76-8740 |
DISCONTINUED Price: Call Us |
| 37 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 39 |
32136-13 |
NUT-SHH Price: $2.85 |
| 40 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 41 |
76-8990 |
BOLT - CYLINDER Price: $43.49 |
| 42 |
328-25 |
SCREW-HH Price: $4.07 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
74-5530 |
DISCONTINUED Price: Call Us |
| 44 |
237-78 |
O-RING Price: $3.85 |
| 45 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 46 |
2411-46-03 |
LH TIE ROD ASM This part replaces 2411-46. Price: $128.10 |
| 47 |
32152-5 |
NUT-HEX Price: $0.54 |
| 48 |
105-7815 |
TIE ROD ASM This part replaces 2412-122. Price: $573.88 |
| 49 |
3210-7 |
SCREW-HH Price: $0.61 |
| 50 |
105-7815 |
TIE ROD ASM This part replaces 2412-123. Price: $573.88 |
| 51 |
74-5250 |
DISCONTINUED Price: Call Us |
| 52 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 53 |
3296-45 |
NUT-HEX Price: $3.79 |
| 54 |
321-8 |
SCREW-HH Price: $0.34 |
| 55 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 56 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
