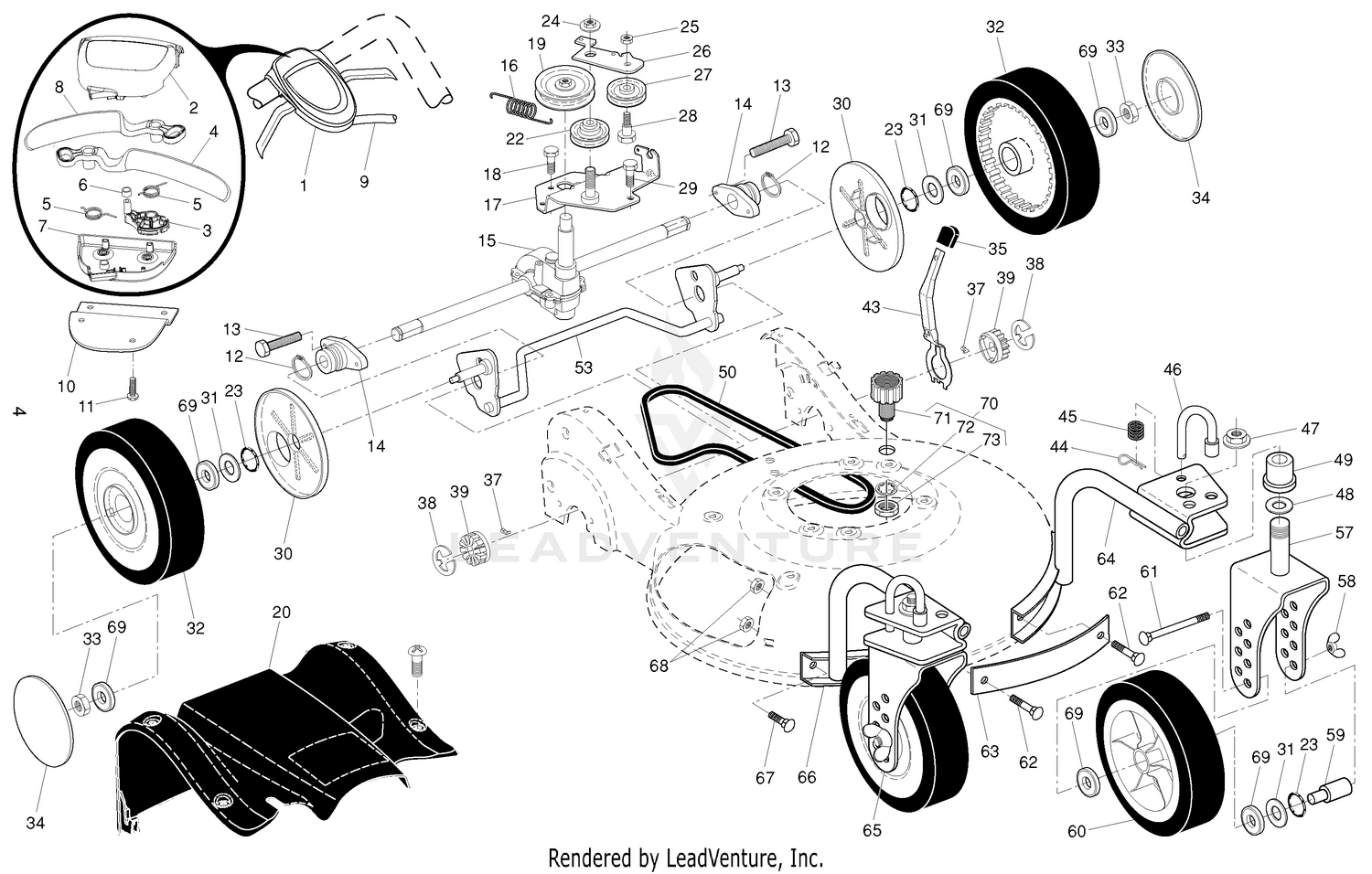

| Ref | Part Number | Description |
|---|
| 1 |
99-8704 |
PLATE-VALVE This part replaces 94-3022. Price: $457.47 |
| 2 |
532431638 |
RP CASE.CONT.ROL.TOP.HUSQV. Price: $19.99 |
| 3 |
532432286 |
CAM.GEN2.DUAL.TRIGGER Price: $3.99 |
| 3 |
93-6372 |
RING-QUAD This part replaces 94-3036. Price: $5.92 |
| 4 |
532432977 |
LEVER.CONTROL.RH.22+.CURV.BLAC Price: $11.99 |
| 4 |
94-3037 |
RING-RETAINING Price: $1.78 |
| 5 |
94-3038 |
ACTUATOR-DUMP VALVE Price: $159.36 |
| 6 |
532432273 |
BUSHING.CONTROL.CAM Price: $3.99 |
| 7 |
532433057 |
COVER.DR.CONTROL.LOWER.GRAY Price: $12.99 |
| 7 |
94-9999 |
VALVE-RELIEF This part replaces 94-3024. Price: $768.40 |
| 8 |
532433087 |
LEVER.CONTROL.LH.22+.CURVE.BLA Price: $11.99 |
| 8 |
94-3016 |
BACKPLATE ASM Price: $1,534.96 |
| 9 |
532431656 |
CABLE.CONTROL.HIVAC.GEN2 Price: $59.99 |
| 9 |
94-3035 |
DISCONTINUED Price: Call Us |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 10 |
94-3023 |
COUPLER Price: $196.98 |
| 11 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 12 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 12 |
94-3017 |
CHARGE ADAPTER ASM Price: $1,110.47 |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
532088652 |
HINGE SCREW Price: $3.99 |
| 14 |
532408027 |
BEARING / AXLE SUPPORT Price: $14.99 |
| 14 |
60-6220 |
SCREW-HH This part replaces 94-3028. Price: $5.33 |
| 15 |
532419211 |
TRANSMISSION.21.HV.RWGD.AW/EZ Price: $89.99 |
| 16 |
532406558 |
SPRING Price: $6.99 |
| 17 |
532408005 |
BRACKET, GEAR CASE / DRIVE Price: $12.99 |
| 18 |
532163409 |
SCREW Price: $3.99 |
| 19 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 21 |
94-3029 |
DISCONTINUED Price: Call Us |
| 22 |
532193791 |
PULLEY.IDLER.V-BELT Price: $12.99 |
| 23 |
532197480 |
O-RING..070X.487.NEOPRENE This part replaces 532188152. Price: $3.99 |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
532416736 |
ARM.IDLER.BZP Price: $3.99 |
| 27 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 28 |
3217-5 |
NUT-HEX Price: $0.25 |
| 28 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 29 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 29 |
94-3031 |
ARM-CONTROL Price: $32.40 |
| 30 |
3274-59 |
SCREW-HSH Price: $1.15 |
| 30 |
532183457 |
DUST COVER, WHEEL Price: $4.99 |
| 31 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 31 |
94-3040 |
ORIFICE Price: $37.14 |
| 32 |
532192622 |
WHEEL.9X2.25.LP.TIGER.BLACK Price: $69.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 33 |
94-3032 |
FOLLOWER-PISTON Price: $574.71 |
| 34 |
532183442 |
HUBCAP.WHEEL.5.SPOKE.SILVER Price: $4.99 |
| 35 |
532425242 |
KNOB.SELECTOR.SPRING.BLACK(3 2 Price: $4.99 |
| 35 |
94-3021 |
ROTATING KIT ASM Price: $2,396.18 |
| 36 |
94-3026 |
CAMPLATE ASM Price: $1,164.81 |
| 37 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 38 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 39 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 41 |
94-3025 |
SERVO PISTON ASM Price: $392.53 |
| 43 |
105-9853 |
PLATE-COVER This part replaces 94-3034. Price: $142.29 |
| 43 |
532188508 |
LEVER, SELECTOR, HEIGHT, REAR This part replaces 532190520. Price: $7.99 |
| 44 |
3256-77 |
WASHER-FLAT Price: $1.60 |
| 44 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 45 |
3274-81 |
SCREW-HSH Price: $0.74 |
| 45 |
532185051 |
SPRING Price: $4.99 |
| 46 |
3220-3 |
NUT-HJ Price: $0.28 |
| 46 |
532185054 |
ROD, LOCK Price: $7.99 |
| 47 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 47 |
94-3030 |
WASHER Price: $6.24 |
| 48 |
532188906 |
WASHER.FLAT.1/2 Price: $6.99 |
| 48 |
94-3027 |
WASHER-SEAL Price: $32.38 |
| 49 |
532195996 |
BUSHING. Price: $3.99 |
| 50 |
532408031 |
BELT, DRIVE Price: $12.99 |
| 50 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 51 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 52 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 53 |
532416740 |
SHAFT.ASM.REAR.TORQUE.HV.BZP Price: $32.99 |
| 53 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 54 |
105-3331 |
SEAL-SHAFT This part replaces 94-3008. Price: $35.63 |
| 55 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 56 |
94-3020 |
SHAFT-DRIVE Price: $627.17 |
| 57 |
532417063 |
BRACKET.WHEEL.ASM.LT.CASTER.OR Price: $44.99 |
| 58 |
532187248 |
NUT.WING.5/16-18.YELLOW Price: $7.99 |
| 58 |
94-3018 |
DISCONTINUED Price: Call Us |
| 59 |
532185111 |
SPACER Price: $3.99 |
| 59 |
94-3033 |
PLATE-COVER Price: $121.09 |
| 60 |
532192234 |
WHEEL.9X2.25.LP.TIGER.SILVER Price: $37.99 |
| 61 |
872270528 |
CARRIAGE BOLT Price: $4.99 |
| 62 |
532187474 |
BOLT Price: $3.99 |
| 63 |
532188475 |
STRAP.FRONT.CASTER.ORANGE Price: $22.99 |
| 63 |
94-3041 |
ORIFICE-CONTROL (.028 DIA) Price: $26.81 |
| 64 |
532414070 |
SUPPORT.TUBE.ASM.LT Price: $109.99 |
| 64 |
94-3040 |
ORIFICE Price: $37.14 |
| 65 |
532417064 |
BRACKET.WHEEL.ASM.RIGHT.ORANGE Price: $37.99 |
| 65 |
93-6306 |
CONTROL ASM This part replaces 94-3019. Price: $1,822.55 |
| 66 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 66 |
532414069 |
SUPPORT.TUBE.ASM.RT Price: $59.99 |
| 67 |
532187555 |
BOLT Price: $2.99 |
| 68 |
596583702 |
Nuts This part replaces 532187263. Price: $2.99 |
| 69 |
532751068 |
BEARING.8".WHEEL Price: $6.99 |
| 70 |
532421114 |
KIT.WASH-OUT.PORT Price: $14.99 |
| 71 |
532421114 |
KIT.WASH-OUT.PORT This part replaces 532419735. Price: $14.99 |
| 72 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
