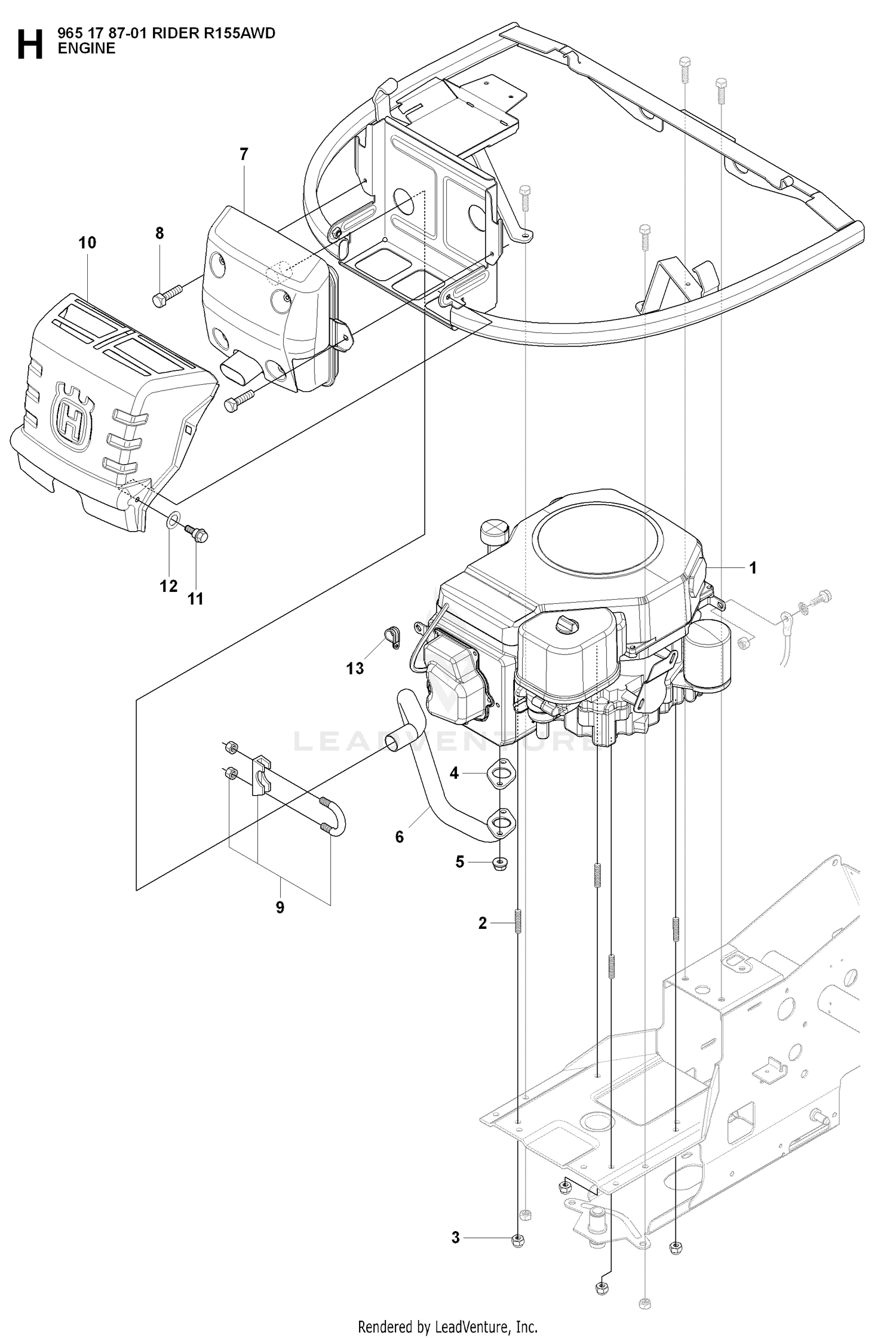

ENGINE
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-9697 | BASE-MOUNT Price: Call Us |
| 1 | 535490001 | Price: Call Us |
| 2 | 121-8381 | SHAFT-BAFFLE, RH Price: $60.59 |
| 3 | 121-8382 | SHAFT-BAFFLE, LH Price: $60.59 |
| 3 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 4 | 125-9698 | BAFFLE-AIR Price: Call Us |
| 4 | 535415103 | EXHAUST GASKET Price: $6.99 |
| 5 | 3256-51 | WASHER-FLAT Price: $0.19 |
| 5 | 535415104 | NUT Price: $4.99 |
| 6 | 125-9696 | LINK-BAFFLE Price: Call Us |
| 6 | 544013401 | EXHAUST PIPE ASSY Price: $159.99 |
| 7 | 121-8374 | MOUNT-CABLE Price: Call Us |
| 7 | 544335701 | MUFFLER ASSY Price: $159.99 |
| 8 | 121-8256 | CLAMP-CONDUIT Price: $0.68 |
| 8 | 725236461 | SCREW Price: $2.99 |
| 9 | 108-2992 | PIN-HAIR Price: $0.82 |
| 9 | 501152201 | CLAMP ASSY EXHAUST This part replaces 506668401. Price: $2.99 |
| 10 | 1-807513 | BOLT-CARR Price: $1.14 |
| 10 | 544248301 | HEAT PROTECTOR Price: $119.99 |
| 11 | 120-4578 | NUT-HF Price: $0.41 |
| 11 | 506597401 | BOLT Price: $5.99 |
| 12 | 115-9830 | SCREW-HSBH Price: $0.42 |
| 12 | 506839401 | SPRINGWASHER Price: $3.99 |
| 13 | 3290-271 | RIVET-POP Price: $0.25 |
| 13 | 502494501 | NEEDS DESCRIPTION Price: Call Us |
