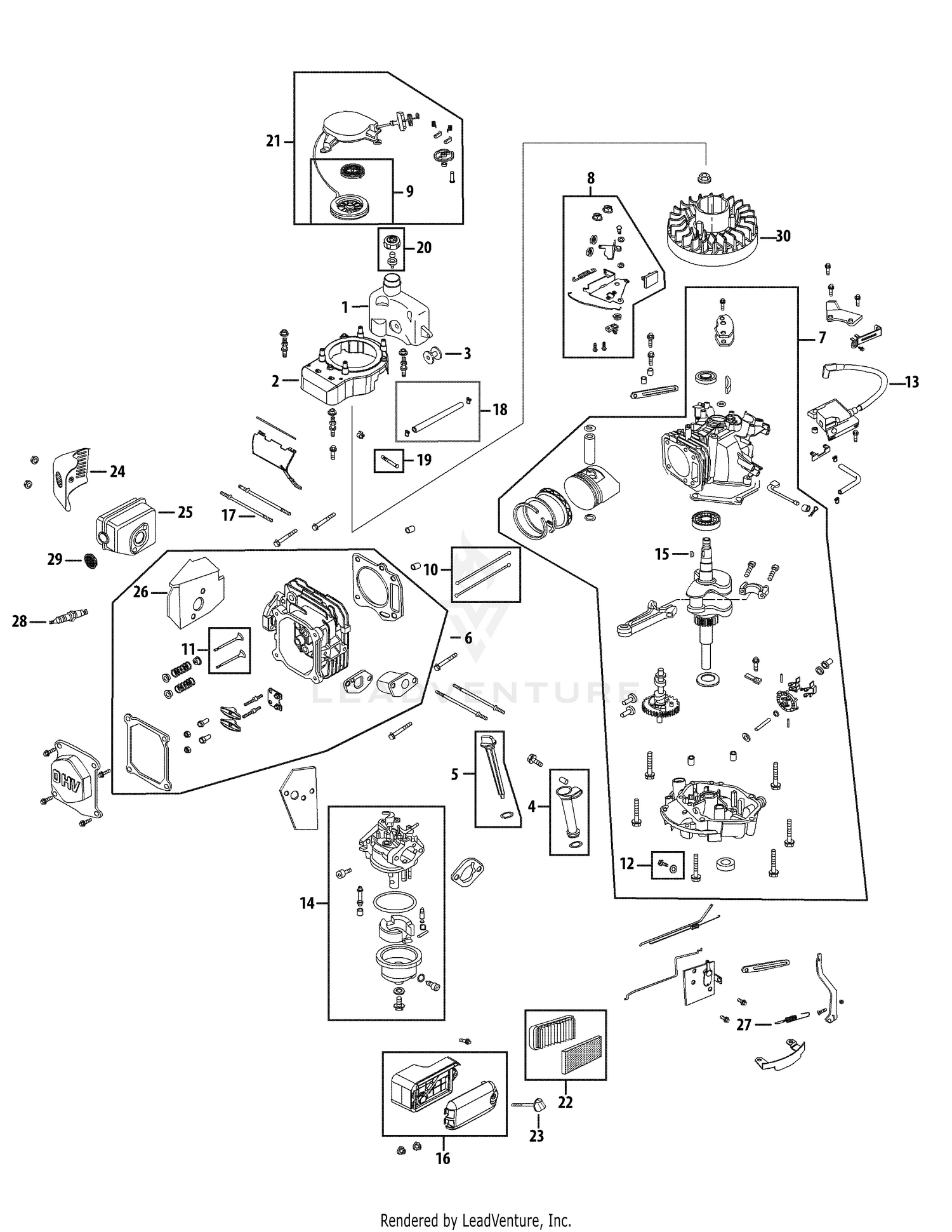

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 1 |
951-12739 |
FUEL TANK ASSEMBLY Not Available This part replaces 951-10368. Price: |
| 2 |
74760412 |
Bolt Hex Head 1/4-20 x 3/4 Price: Call Us |
| 2 |
951-10764 |
FLYWHEEL SHROUD Not Available Price: |
| 3 |
951-10335 |
Rubber Fuel Tank Mounting Washer Price: $4.90 |
| 4 |
951-10334 |
Oil Filler Tube Assembly Price: $20.69 |
| 5 |
951-10333 |
Dipstick Assembly Price: $15.70 |
| 6 |
951-10413B |
Cylinder Head Assembly This part replaces 951-10413. Price: $164.33 |
| 7 |
951-12724 |
SHORTBLOCK ASSEMBLY Not Available This part replaces 951-10414. Price: |
| 8 |
7603J |
Tray, Bat tery Price: Call Us |
| 8 |
951-10321A |
Stop Switch and Brake Ass'y Not Available This part replaces 951-10321. Price: |
| 9 |
951-10319 |
Recoil Spring and Pulley Assembly Price: $44.50 |
| 010 |
112-7018 |
VALVE-INLET This part replaces 98-9494. Price: $41.87 |
| 10 |
145211 |
Bolt Btr Frt 1/4-20 x 7.5 zinc Price: Call Us |
| 10 |
951-10344 |
Push Rod Kit Price: $16.42 |
| 11 |
150109 |
Holdown Battery Front Mount Price: Call Us |
| 11 |
951-10345 |
Valve Kit Not Available Price: |
| 12 |
145769 |
Nut Push Nylon 1/4" Price: Call Us |
| 12 |
951-10370 |
Oil Drain Plug and Washer Assembly Price: $7.96 |
| 13 |
951-10366 |
Ignition Coil Price: $96.78 |
| 14 |
951-10765 |
Carburetor Assembly Price: $90.60 |
| 15 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 16 |
176138 |
Switch Interlock Push-In Price: Call Us |
| 16 |
951-10412B |
Air Cleaner Housing Assy Comp This part replaces 951-10412A. Price: $34.32 |
| 17 |
951-10342 |
Muffler Stud Assembly Price: $8.66 |
| 18 |
951-10364 |
Fuel Line Kit - Inc. hoses & clamps Price: $25.25 |
| 19 |
951-12296A |
FUEL FILTER This part replaces 951-10358. Price: $8.68 |
| 020 |
120-2564 |
VALVE-EXHAUST This part replaces 98-9495. Price: $34.21 |
| 20 |
951-10300 |
Fuel Cap Assembly Price: $10.24 |
| 21 |
175688 |
Harness Headlight w/Bulbs Price: Call Us |
| 21 |
951-10299A |
Recoil Starter This part replaces 951-10299. Price: $60.89 |
| 22 |
4152J |
Bulb Light Price: Call Us |
| 22 |
951-10298 |
Air Cleaner Kit Price: $15.94 |
| 23 |
951-10297 |
Air Cleaner Thumb Screw Price: $5.34 |
| 24 |
185464 |
Cable, Battery Price: Call Us |
| 24 |
951-10411 |
Muffler Guard Not Available Price: |
| 25 |
146149 |
Cable, Battery Price: Call Us |
| 25 |
951-10403 |
Muffler Price: $72.42 |
| 26 |
108824X |
Fuse Price: Call Us |
| 26 |
951-10402 |
Muffler Gasket /Heat Shield Price: $16.75 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 27 |
951-10387 |
Governor Return Spring Price: $6.54 |
| 28 |
170697 |
Cable, Ground Price: Call Us |
| 28 |
951-10292A |
SPARK PLUG (F6RTC/RN11YC/BPR6ES) This part replaces 951-10292. Price: $6.35 |
| 29 |
192749 |
Switch, Seat Price: Call Us |
| 29 |
951-10351A |
SPARK ARRESTOR This part replaces 951-10351. Price: $48.91 |
| 030 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 30 |
193350 |
Switch, Ign Price: Call Us |
| 30 |
951-11046 |
FLYWHEEL Not Available Price: |
| 33 |
140401 |
Key Price: Call Us |
| 34 |
110712X |
Switch light Price: Call Us |
| 040 |
107-9092 |
RETAINER-SPRING This part replaces 98-9498. Price: $2.58 |
| 40 |
193391 |
Harness, Ignition Price: Call Us |
| 41 |
17720408 |
Screw 1/4-20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover, Terminal Red Price: Call Us |
| 43 |
178861 |
Solenoid Price: Call Us |
| 45 |
122822X |
Ammeter Price: Call Us |
| 46 |
169635 |
Hourmeter Snap-In Price: Call Us |
| 050 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 50 |
174651 |
Switch, PTO Price: Call Us |
| 060 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 070 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 79 |
175242 |
Socket, Light Bulb Price: Call Us |
| 080 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 89 |
169639 |
Bracket Snap-In Price: Call Us |
| 090 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 92 |
193465 |
Harness Pigtail Reverse Switch Price: Call Us |
| 93 |
192540 |
Screw Plastite 10-14 x 2.0 Price: Call Us |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 160 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 200 |
98-9393 |
NUT Price: $2.72 |
