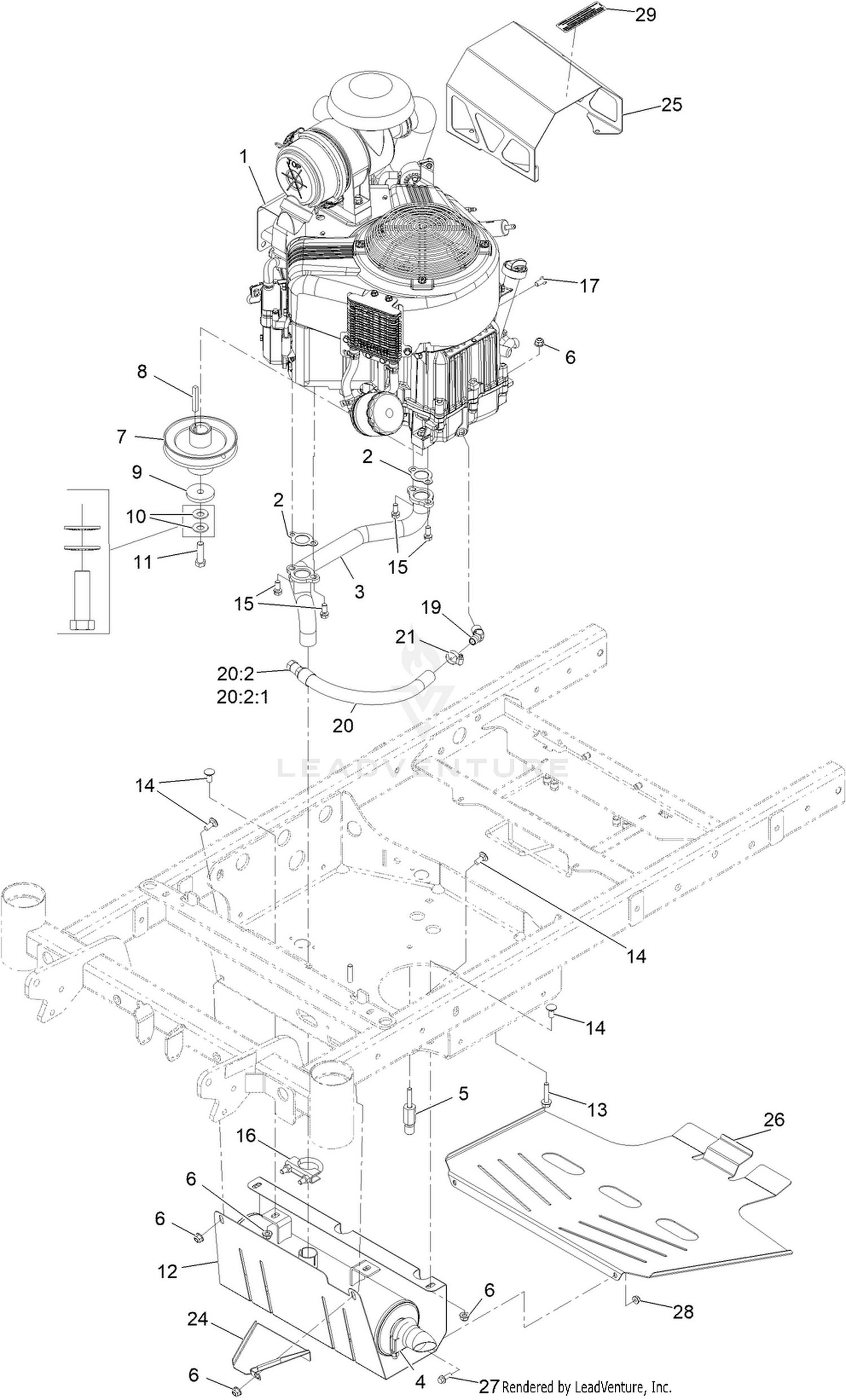

| Ref | Part Number | Description |
|---|
| 1 |
146-0661 |
ENGINE-VANGUARD, 23HP VERT. Price: $2,972.99 |
| 2 |
94-5844 |
GASKET This part replaces 94-3449. Price: $11.99 |
| 3 |
142-5567 |
MANIFOLD-MUFFLER Price: $123.99 |
| 4 |
142-5566 |
MUFFLER Price: $223.99 |
| 5 |
142-3849 |
PIN-SPRING ANCHOR Price: $22.99 |
| 6 |
135-6109 |
Nut-Hex Flange Price: $1.19 |
| 7 |
142-3845 |
PULLEY-ENGINE Price: $29.99 |
| 8 |
103-4177 |
KEY Price: $4.79 |
| 9 |
109-6919 |
WASHER-CLUTCH Price: $7.19 |
| 10 |
1-603610 |
WASHER-SPRING Price: $4.79 |
| 11 |
109-9761 |
SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE Price: $4.79 |
| 12 |
142-3842 |
GUARD-MUFFLER Price: $91.99 |
| 13 |
323-43 |
SCREW-HH This part replaces 142-0559. Price: $2.49 |
| 14 |
126-0695 |
SCREW-CARR Price: $1.19 |
| 15 |
3274-96 |
SCREW-HSBH Price: $2.57 |
| 16 |
2112-11 |
Clamp-Muffler Price: $6.09 |
| 17 |
110-0032 |
SCREW-BHTORX Price: $2.69 |
| 19 |
116-2570 |
ELBOW Price: $37.99 |
| 20 |
142-6685 |
OIL DRAIN HOSE W/PLUG Price: $30.99 |
| 21 |
2412-36 |
CLAMP-HOSE Price: $1.89 |
| 24 |
142-7578 |
PLATE-PAN, OIL Price: $18.99 |
| 25 |
142-7868 |
COVER-ENGINE Price: $66.99 |
| 26 |
146-0653 |
PAN-BELLY Price: $151.99 |
| 27 |
135-6221 |
Screw-HHF Price: $1.19 |
| 28 |
135-6108 |
Nut-Hex Flange Price: $1.39 |
