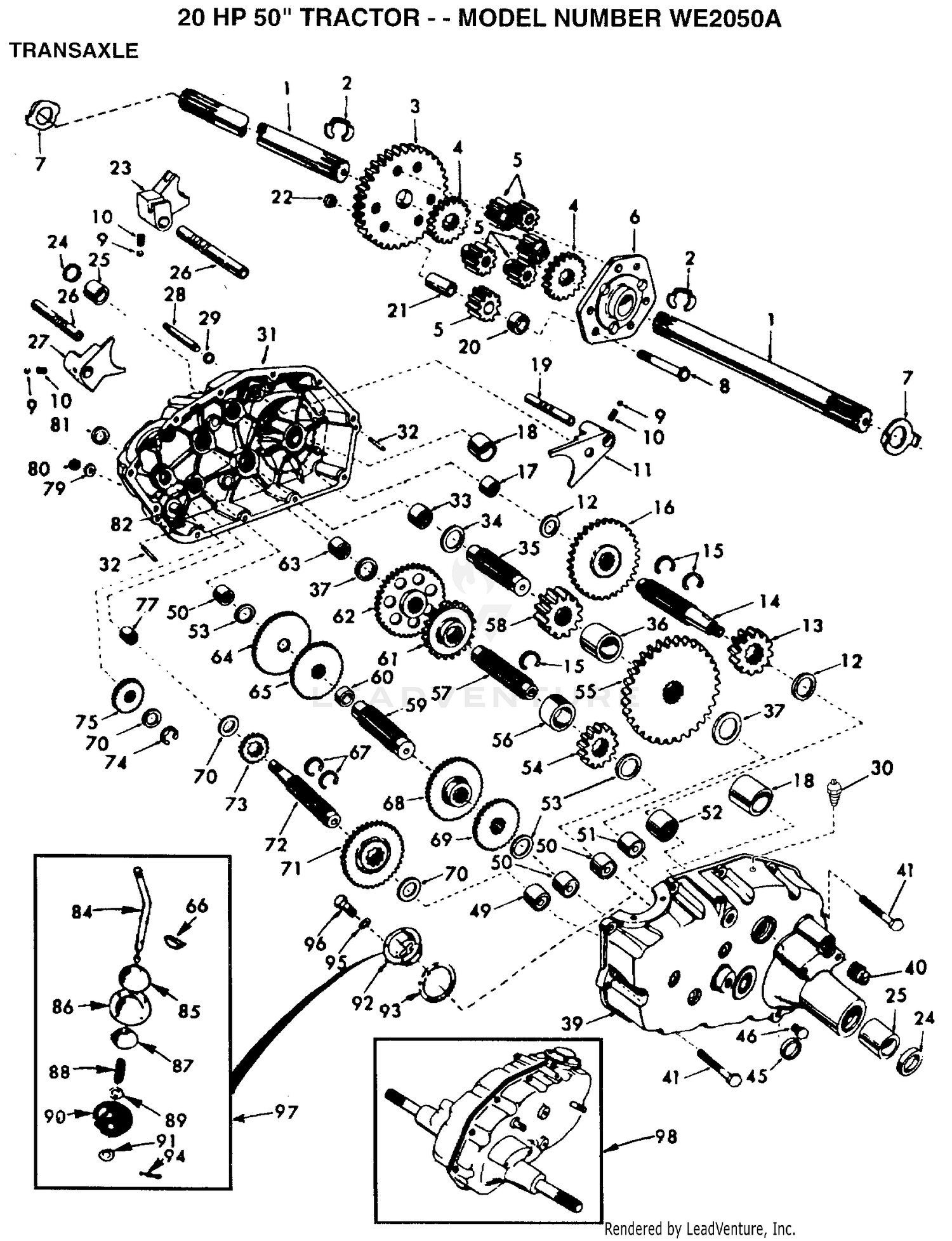

| Ref | Part Number | Description |
|---|
| 1 |
4197R |
SHAFT.AXLE.T Price: Call Us |
| 1 |
92-5671 |
STRIP-SEALING Price: $20.41 |
| 2 |
108-3283 |
HOSE-FUEL This part replaces 94-1348. Price: $4.60 |
| 2 |
12000034 |
KLIP RING Price: Call Us |
| 3 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 3 |
4199R |
FINAL GEAR T Price: Call Us |
| 4 |
4216R |
DIFF GEAR T Price: Call Us |
| 4 |
92-9266 |
STANDPIPE Price: $26.91 |
| 5 |
4215R |
DIFF PINION T Price: Call Us |
| 5 |
92-5670 |
STRIP-SEALING Price: $7.03 |
| 6 |
4217R |
DIFF CARRIER T Price: Call Us |
| 6 |
46-6560 |
BUSHING Price: $2.94 |
| 7 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 7 |
6256H |
WASHER T Price: Call Us |
| 8 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 8 |
74020652 |
BOLT Price: Call Us |
| 9 |
7392M |
SUB= 100482K Price: Call Us |
| 9 |
92-9267 |
SENDER-FUEL Price: $118.15 |
| 10 |
137261 |
SUB= 145359 Price: Call Us |
| 10 |
62-7650 |
GASKET Price: $4.28 |
| 11 |
4985R |
SHIFT FORK T Price: Call Us |
| 11 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 12 |
6266H |
WASHER .T Price: Call Us |
| 12 |
92-5674 |
NECK-FILL, FUEL Price: $188.78 |
| 13 |
4212R |
RED PINION T Price: Call Us |
| 13 |
92-5675 |
GROMMET Price: $21.90 |
| 14 |
137125 |
SHAFT BRAKE GT Price: Call Us |
| 14 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 15 |
6276H |
SNAP RING T Price: Call Us |
| 15 |
92-9272 |
HOSE-FILL, FUEL Price: $52.93 |
| 16 |
633A63 |
GEAR T Price: Call Us |
| 16 |
93-1402 |
TANK-FUEL Price: $602.12 |
| 17 |
104-5266-03 |
BODY-LOWER Price: $2,297.30 |
| 18 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 18 |
8740H1 |
BEARING Price: Call Us |
| 19 |
122238X |
SHAFT Price: Call Us |
| 19 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 20 |
4218R |
SPACER T Price: Call Us |
| 20 |
63-8410 |
WASHER Price: $1.76 |
| 21 |
323-5 |
SCREW-HH Price: $0.41 |
| 21 |
6252H1 |
PINION RS Price: Call Us |
| 22 |
52-9590 |
LATCH-SCREEN Price: $6.57 |
| 22 |
7810H |
GRIPCO NUT Price: Call Us |
| 23 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 23 |
6262H |
FORK T Price: Call Us |
| 24 |
7393R |
OIL SEAL STD Price: Call Us |
| 24 |
92-5654-03 |
PANEL-OUT, CLEAN Price: $113.82 |
| 25 |
992R1 |
BRNG. T Price: Call Us |
| 26 |
139111 |
SHIFT FORK SHAFT Price: Call Us |
| 27 |
4986R |
SHIFT FORK T Price: Call Us |
| 28 |
122254X |
SHIFT SHAFT Price: Call Us |
| 29 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 29 |
6269H |
SEAL T Price: Call Us |
| 30 |
321-2 |
SCREW-HH Price: $2.79 |
| 30 |
5855H |
VALVE M Price: Call Us |
| 31 |
139538 |
GEARCASE RH W/BER Price: Call Us |
| 31 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 32 |
6277H |
PIN T Price: Call Us |
| 32 |
92-5653-03 |
RING-CLAMP Price: $16.40 |
| 33 |
4225R |
NEEDLE BRNG T Price: Call Us |
| 33 |
92-5269 |
BELLOWS Price: $193.76 |
| 34 |
7396H |
RACE T Price: Call Us |
| 34 |
92-1242 |
DECAL Price: $20.82 |
| 35 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 35 |
4198R |
GEAR SHAFT T Price: Call Us |
| 36 |
240-9 |
GROMMET Price: $3.25 |
| 36 |
4200R |
SUB= 532004200 Price: Call Us |
| 37 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 37 |
7395H |
RACE T Price: Call Us |
| 38 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 39 |
139536 |
GEARCASE LH W/BER Price: Call Us |
| 39 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 40 |
110-4112 |
HOSE-FUEL This part replaces 92-9283. Price: $12.60 |
| 40 |
13320400 |
PLUG PIPE Price: Call Us |
| 41 |
17580520 |
BOLT.5/16-18X1.25 Price: Call Us |
| 41 |
92-6064 |
CLAMP-R Price: $2.04 |
| 42 |
322-3 |
SCREW-HH Price: $0.79 |
| 43 |
92-6069-03 |
SHIELD-EXHAUST Price: $27.08 |
| 44 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 45 |
32128-33 |
NUT-HF Price: $0.25 |
| 45 |
6271H |
SEAL T Price: Call Us |
| 46 |
13060200 |
SUB= 13020200 Price: Call Us |
| 47 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 50 |
4222R |
NEEDLE BRNG T Price: Call Us |
| 51 |
1529R |
NEEDLE BRNG T Price: Call Us |
| 51 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 52 |
94-8270 |
BOLT-SHOULDER Price: $17.58 |
| 53 |
4220R |
BRNG RACE Price: Call Us |
| 53 |
63-4220 |
SPRING-COMPRESSION Price: $16.11 |
| 54 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 54 |
4209R |
RED PINION T Price: Call Us |
| 55 |
4213R |
RED GEAR T Price: Call Us |
| 55 |
94-8258 |
STRIP-SEAL Price: $3.70 |
| 56 |
4442R |
PINION SPACER T Price: Call Us |
| 57 |
110-5688 |
HOSE-FUEL This part replaces 100-6588. Price: $34.27 |
| 57 |
4195R |
GEAR SHAFT T Price: Call Us |
| 58 |
4214R |
FINAL PINION T Price: Call Us |
| 58 |
60-4350 |
GROMMET Price: $4.46 |
| 59 |
4194R |
GEAR SHAFT T Price: Call Us |
| 60 |
7528R |
SPACER T Price: Call Us |
| 60 |
98-7612 |
FILTER-FUEL Price: $10.48 |
| 61 |
4208R |
RED PINION T Price: Call Us |
| 62 |
4207R |
RED GEAR T Price: Call Us |
| 63 |
7398H |
RACE T Price: Call Us |
| 64 |
4203R |
LOW SPEED GEA T Price: Call Us |
| 65 |
4204R |
REVERSE GEAR T Price: Call Us |
| 66 |
2898J |
KEY T Price: Call Us |
| 67 |
12000033 |
KLIP RING Price: Call Us |
| 68 |
4205R |
INTERMED GEAR T Price: Call Us |
| 69 |
4206R |
SUB= 532004206 Price: Call Us |
| 71 |
633A69 |
CLUSTER GEAR T Price: Call Us |
| 72 |
139120 |
SHAFT INPUT Price: Call Us |
| 73 |
4201R |
LO SPEED PINION T Price: Call Us |
| 74 |
12000008 |
KLIP RING Price: Call Us |
| 75 |
1153R |
IDLER GEAR T Price: Call Us |
| 77 |
6803J |
NEEDLE BEARING TI Price: Call Us |
| 79 |
1167R |
WASHER T Price: Call Us |
| 80 |
73360700 |
NUT Price: Call Us |
| 81 |
6270H |
SEAL STD Price: Call Us |
| 82 |
136984 |
SHAFT REVERSE IDL Price: Call Us |
| 84 |
5384J |
GEAR SHIFT LVR T Price: Call Us |
| 85 |
2978J |
CAP T Price: Call Us |
| 86 |
633A85 |
COVER AND PIN T Price: Call Us |
| 87 |
8739H1 |
GUIDE BALL T Price: Call Us |
| 88 |
4924H |
SPRING TI Price: Call Us |
| 89 |
19151516 |
WASHER Price: Call Us |
| 90 |
110542X |
SEAL T Price: Call Us |
| 91 |
19181511 |
WASHER Price: Call Us |
| 92 |
75J |
GEAR SHIFT GA T Price: Call Us |
| 93 |
6274H |
GASKET T Price: Call Us |
| 94 |
76020412 |
COTTER PIN Price: Call Us |
| 95 |
10040500 |
LOCKWASHER Price: Call Us |
| 96 |
74760514 |
BOLT Price: Call Us |
| 97 |
633A109 |
GEAR SHFT LVR T Price: Call Us |
