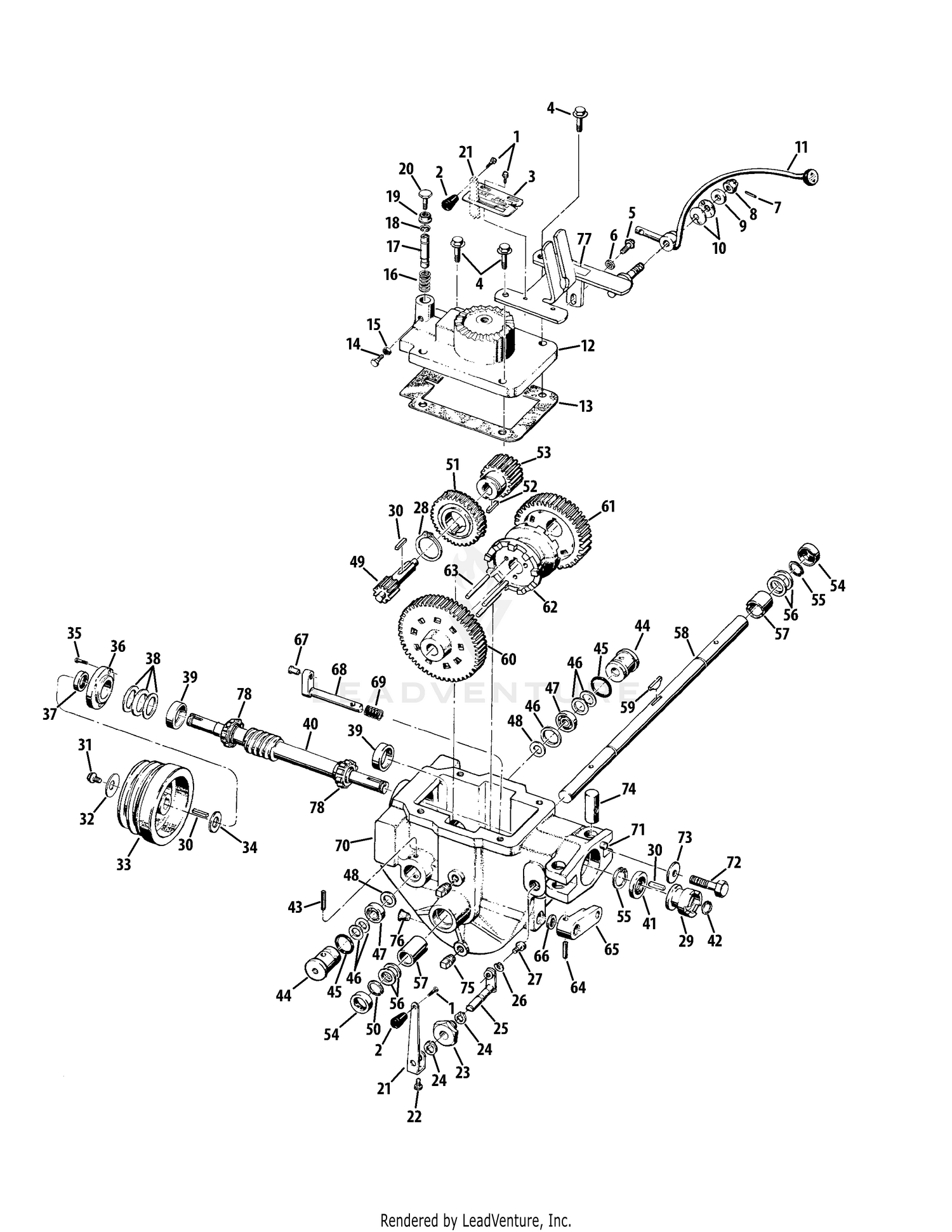

| Ref | Part Number | Description |
|---|
| 1 |
710-04454 |
HEX SCREW #10-32 Price: $3.71 |
| 2 |
GW-9463 |
Knob Price: $10.32 |
| 3 |
GW-2263 |
Plate Price: $45.91 |
| 4 |
1186349 |
Hex Flange Bolt, 3/8-16 x 1-1/2" Price: $3.11 |
| 5 |
710-04043 |
Hex Flange Bolt, 5/16-18 x 3/4" Price: $3.96 |
| 6 |
736-0275 |
FLAT WASHER This part replaces 936-0275. Price: $5.99 |
| 7 |
GW-9362 |
Spring Pin, 1/8" Price: $3.82 |
| 8 |
712-3012A |
HEX NUT This part replaces 912-3012. Price: $11.49 |
| 8 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 936-0326. Price: $3.89 |
| 9 |
GW-9934 |
Shoulder Washer, 1.25 x .50 x .25 Price: $13.73 |
| 10 |
GW-9932 |
Disc Spring Washer, 1.97 x 1.0 x .118 Price: $21.54 |
| 11 |
GW-2628 |
Wheel Speed Shift Lever Price: $124.90 |
| 12 |
719-04015P |
Power Unit Transmission Cover Price: $204.95 |
| 13 |
GW-1123 |
Transmission Cover Gasket Price: $7.44 |
| 14 |
710-0376 |
Hex Head Screw, 5/16-18 x 1" Price: $3.66 |
| 15 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 16 |
1901439 |
Plunger Spring Price: $10.67 |
| 17 |
GW-1035 |
Plunger Price: $33.23 |
| 18 |
1901440 |
Clip Ring Price: $4.79 |
| 19 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 20 |
1902004 |
Screw, 3/8-16 x 1-1/2" Price: $7.46 |
| 21 |
786-04002 |
Tines/PTO Clutch Lever Price: $49.65 |
| 22 |
710-3013 |
Hex Head Screw, 1/4-20 x 1/2" Price: $4.02 |
| 23 |
741-04008 |
Tines/PTO Clutch Bushing Price: $25.38 |
| 24 |
GW-9516 |
External Retaining Ring Price: $3.56 |
| 25 |
GW-2461 |
Tines/PTO Clutch Shaft Price: $34.31 |
| 26 |
GW-9911 |
Hi-Collar Lockwasher, 1/4" Price: $5.23 |
| 27 |
710-04354 |
Socket Head Screw, 1/4-20 x 3/8" Price: $3.38 |
| 28 |
716-0101 |
Retaining Ring-external This part replaces 916-0101. Price: $3.37 |
| 29 |
718-04615 |
Dog Clutch Price: $46.92 |
| 30 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces GW-9301099. Price: $3.46 |
| 31 |
710-0157 |
Hex Head Screw, 5/16-24 x 3/4" Price: $3.90 |
| 32 |
736-04193 |
Spring Washer, .827 x .331 x .098 Price: $5.94 |
| 33 |
GW-2107 |
Transmission Drive Pulley Price: $127.93 |
| 34 |
GW-50027 |
Flat Washer, 1.25 x .687 x .075 Price: $5.94 |
| 35 |
1186310 |
Flange Nut, 1/4-20 x .75 Price: $3.11 |
| 36 |
718-04007 |
Front Bearing Cap Price: $16.60 |
| 37 |
921-04044 |
Oil Seal Price: $8.80 |
| 38 |
736-04305 |
Flat Washer, 1.175 x 1.5 x .062 Price: $3.52 |
| 38 |
736-04306 |
Flat Washer, 1.175 x 1.5 x .005 Price: $3.85 |
| 38 |
736-04307 |
Flat Washer, 1.175 x 1.5 x .03 Price: $3.85 |
| 38 |
736-04308 |
Flat Washer, 1.175 x 1.5 x .01 Price: $3.85 |
| 39 |
941-04299 |
Cup Bearing Price: $6.01 |
| 40 |
GW-2655 |
Main Drive Shaft Price: $193.24 |
| 41 |
921-04030 |
Oil Seal Price: $11.33 |
| 42 |
716-04102 |
Retaining Ring Price: $3.85 |
| 43 |
715-0121 |
Roll Pin (Spirol), 1/4" x 2 Price: $5.95 |
| 44 |
718-04006 |
Pinion Bearing Price: $43.49 |
| 45 |
GW-9604 |
O-Ring Price: $4.62 |
| 46 |
736-04310 |
Flat Washer, 1.234 x 1.015 x .062 Price: $3.95 |
| 46 |
736-04386 |
Washer, 1.00 x 1.50 x .03, SS This part replaces GW-1132-1. Price: $6.01 |
| 46 |
GW-1132-3 |
Flat Washer, 1.234 x 1.015 x .01 Price: $5.95 |
| 47 |
GW-9404 |
Ball Bearing Price: $24.30 |
| 48 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 936-0272. Price: $4.37 |
| 49 |
GW-1222 |
Pinion Stem Price: $122.90 |
| 50 |
716-04119 |
External Retaining Ring, 1.387 ID Price: $12.96 |
| 51 |
GW-2656 |
Worm Gear Price: $129.55 |
| 52 |
GW-9300 |
Key, 3/16" x 5/8" Price: $3.22 |
| 53 |
GW-1233 |
Fast Speed Pinion Gear Price: $125.18 |
| 54 |
921-04031 |
Oil Seal Price: $9.58 |
| 55 |
716-04104 |
External Retaining Ring Price: $3.85 |
| 56 |
736-04257 |
Flat Washer, 1.375 x 1.015 x .005 Price: $3.48 |
| 56 |
736-04258 |
Flat Washer, 1.375 x 1.015 x .01 Price: $3.48 |
| 56 |
736-04259 |
Flat Washer, 1.375 x 1.015 x .015 Price: $5.94 |
| 56 |
736-04260 |
Flat Washer, 1.375 x 1.015 x .03 Price: $5.94 |
| 56 |
736-04309 |
Flat Washer, 1.375 x 1.015 x .062 Price: $3.85 |
| 57 |
941-04300 |
Bushing, 1.25 x 1.005 x 1.5 Price: $15.25 |
| 58 |
711-04258 |
SEAT PIVOT ROD Not Available Price: |
| 59 |
714-04014 |
Hi-Pro Key, .250 x 1.8125 Price: $18.36 |
| 60 |
GW-1223 |
Slow Speed Gear Price: $196.25 |
| 61 |
GW-1232 |
Faste Gear Speed Price: $135.63 |
| 62 |
GW-1237 |
Dog Clutch Price: $142.70 |
| 63 |
GW-1112 |
Clutch Guide Pin, 1/4" Price: $4.06 |
| 64 |
1911372 |
SPRING PIN .188X1. Not Available Price: |
| 65 |
619-04000-0637 |
Wheel Speed Shifting Lever Price: $53.27 |
| 66 |
921-04034 |
Oil Seal Price: $9.37 |
| 67 |
738-04448 |
PIN Price: $7.14 |
| 68 |
611-04003 |
Wheel Speed Shifting Shaft Price: $78.82 |
| 69 |
GW-1441 |
Spring Price: $3.61 |
| 70 |
GW-2109099 |
HOUSING-POWER UNIT TRA Price: $822.57 |
| 71 |
GW-9359 |
Alignment Pin Price: $3.22 |
| 72 |
1100067 |
HEX HEAD CAP SCREW Not Available Price: |
| 73 |
GW-9928 |
Disc Spring Washer Price: $11.23 |
| 74 |
GW-2126 |
Post Price: $27.91 |
| 75 |
1105620 |
Pipe Plug, 1/4" Price: $3.66 |
| 76 |
GW-9122 |
Plug-Red Plastic Price: $8.93 |
| 77 |
1900870001 |
Clutch Bracket Price: $156.99 |
| 78 |
941-04298 |
Cone Bearing Price: $14.84 |
