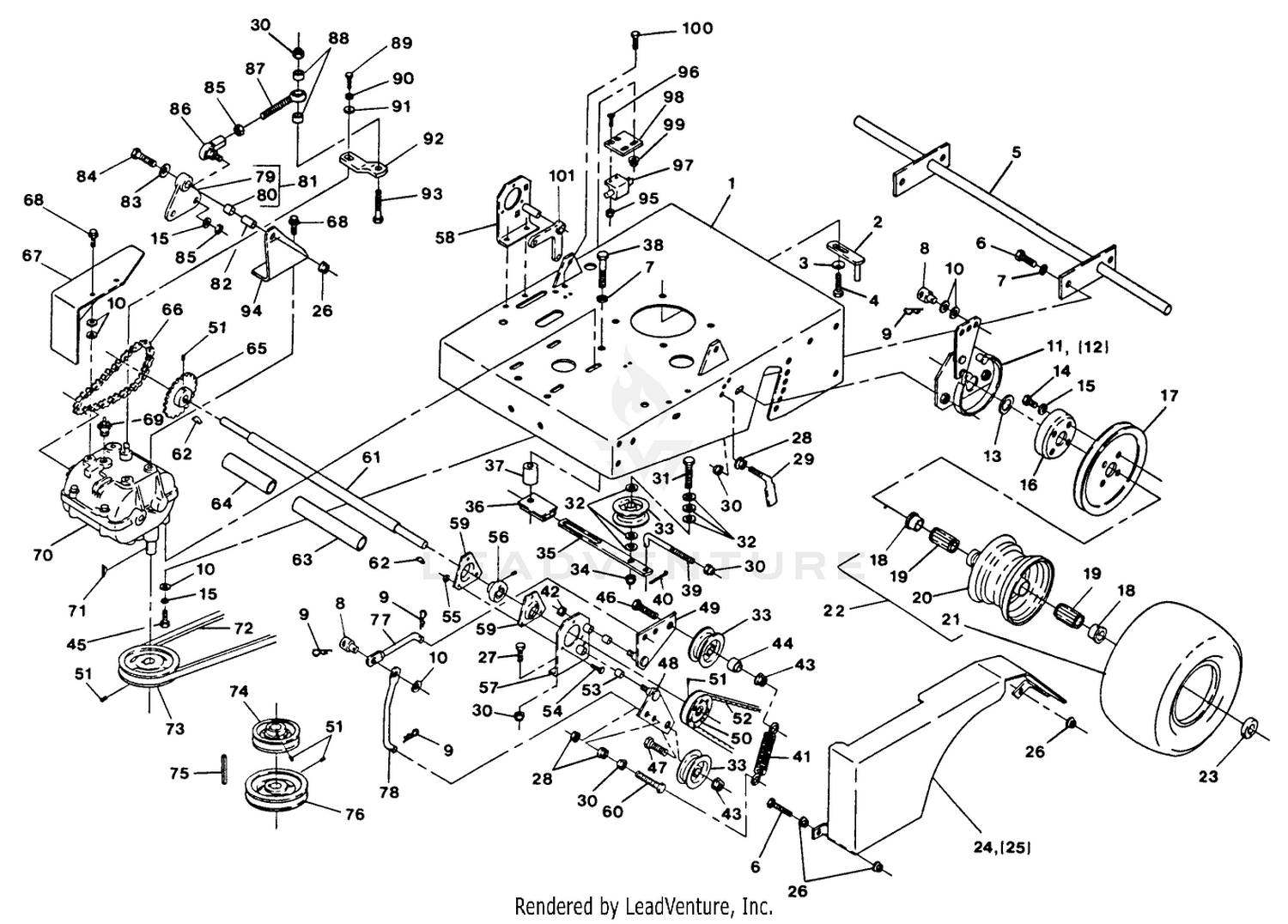

| Ref | Part Number | Description |
|---|
| 1 |
322079 |
Rear Deck Weld - 5 -Speed Price: Call Us |
| 2 |
322012 |
Belt Guide Weldment Price: Call Us |
| 3 |
303334 |
Washer, Disc Spring 5/16 Price: Call Us |
| 4 |
809018 |
M8 x 1.25 x 30 mm HH Capscrew (Kawasaki) Price: Call Us |
| 5 |
302035 |
Axle Assembly Price: Call Us |
| 6 |
800292 |
Screw, Hex Cap 3/8-16x1 Price: Call Us |
| 7 |
805006 |
Washer, 3/8 Heavy Spring Price: Call Us |
| 8 |
303168 |
Adjust Swivel - Shor Price: Call Us |
| 9 |
806003 |
Pin, Hair Cotter .0585 #2 Price: Call Us |
| 10 |
805258 |
Washer, Flat Std 5/16 Price: Call Us |
| 11 |
302117 |
Brake Assembly - Rigth Price: Call Us |
| 13 |
303062 |
Wheel Spacer Price: Call Us |
| 14 |
800273 |
Screw, Hex Cap 5/16-18x1 Price: Call Us |
| 15 |
805005 |
Washer, Lock Hlcl Spg 5/16 Hvy Price: Call Us |
| 16 |
303463 |
Brake Drum Price: Call Us |
| 17 |
303464 |
Sheave - 9" B Split Steel Price: Call Us |
| 18 |
303123 |
Flange Bearing Price: Call Us |
| 19 |
303122 |
Roller Bearing Price: Call Us |
| 20 |
302160 |
Wheel & Hub Price: Call Us |
| 21 |
303125 |
Tire - 13 x 6.50-6, 2 Ply Price: Call Us |
| 22 |
303469 |
Wheel & Tire - 13 x 6.50-6 Price: Call Us |
| 24 |
322077 |
RH Fender Weld - Gray Price: Call Us |
| 25 |
322076 |
LH Fender Weld - Gray Price: Call Us |
| 26 |
809007 |
Nut, Whizlock 3/8-16 Price: Call Us |
| 27 |
800271 |
Screw, Hex Cap 5/16-18x3/4 Price: Call Us |
| 28 |
809001 |
Nut, Whizlock 5/16-18 Price: Call Us |
| 29 |
303151 |
Scraper Price: Call Us |
| 30 |
804256 |
Nut, Nylock 5/16-18 Price: Call Us |
| 31 |
800297 |
Screw, Hex Cap 3/8-16x2-1/4 Price: Call Us |
| 32 |
805260 |
Washer, Flat Std 3/8 Price: Call Us |
| 33 |
303076 |
Idler Pulley Price: Call Us |
| 34 |
804257 |
Nut, Nyloc 3/8-16 Price: Call Us |
| 35 |
303175 |
Slide Bar Price: Call Us |
| 36 |
302041 |
Bracket Slide Price: Call Us |
| 37 |
323037 |
Slide Spacer Price: Call Us |
| 39 |
323038 |
Tightening Arm Price: Call Us |
| 41 |
323071 |
Spring 5sp/Dr Idler Price: Call Us |
| 42 |
803013 |
Torque Nut - 5/16-18 Price: Call Us |
| 43 |
809001 |
Nut, Whizlock 5/16-18 Price: Call Us |
| 44 |
323119 |
Spacer Price: Call Us |
| 47 |
800294 |
Screw, Hex Cap 3/8-16x1 1/2 Price: Call Us |
| 48 |
322038 |
Arm Weldment - Idler Price: Call Us |
| 49 |
322040 |
Arm Weldment - Idler Price: Call Us |
| 50 |
303409 |
Pulley - Wheel Drive Price: Call Us |
| 51 |
803310 |
Screw, Set 5/16-18x3/8 Price: Call Us |
| 52 |
323051 |
Cog Belt Price: Call Us |
| 53 |
303143 |
Bronze Sleeve Bearing Price: Call Us |
| 54 |
800251 |
Screw, Hex Cap 1/4-20x5/8 Price: Call Us |
| 55 |
804255 |
Nut, Nyloc 1/4-20 Price: Call Us |
| 56 |
303067 |
Shaft Bearing with Collar Price: Call Us |
| 57 |
322041 |
RH Caliper Support w/Bushings Price: Call Us |
| 58 |
322042 |
LH Caliper Support w/Bushings Price: Call Us |
| 59 |
303066 |
Shaft Flange Price: Call Us |
| 60 |
800019 |
Full Thread Bolt, 5/16 - 18 x 2-1/4 Price: Call Us |
| 61 |
323109 |
JackShaft Price: Call Us |
| 63 |
323117 |
JackShaft Cover - RH 7.13 Price: Call Us |
| 64 |
323108 |
JackShaft Cover - LH 4.7 Price: Call Us |
| 65 |
323110 |
Sprocket Price: Call Us |
| 66 |
323111 |
Drive Chain Price: Call Us |
| 67 |
323035 |
Chain Guard Price: Call Us |
| 68 |
809013 |
Screw, Hex Tap 5/16-18x3/4 Price: Call Us |
| 69 |
303282 |
Switch, Neutral Start Price: Call Us |
| 70 |
322057 |
Trans, w/#40 Sprocket Price: Call Us |
| 71 |
807009 |
Key Woodruff #9 3/4x3/16 Price: Call Us |
| 72 |
403018 |
Vee Belt - Transmission Price: Call Us |
| 73 |
403019 |
Transmission Pulley Price: Call Us |
| 74 |
323070 |
Transmission Drive Pulley Price: Call Us |
| 75 |
807264 |
Key, Machine 1/4x1/4x2-5/8 Price: Call Us |
| 76 |
303073 |
Pulley - Cast Iron Price: Call Us |
| 77 |
323082 |
Linkage - Upper Caliper Price: Call Us |
| 78 |
323084 |
Linkage - Lower RH Caliper Price: Call Us |
| 79 |
602432 |
Bellcrank Weld - Shift Price: Call Us |
| 80 |
513034 |
Pivot, Bearing Price: Call Us |
| 81 |
602522 |
Bellcrank Assy w/Bushing Price: Call Us |
| 82 |
603369 |
Bushing 3/8 x 5/8 Price: Call Us |
| 83 |
805259 |
Washer, Flat 3/8 SAE Price: Call Us |
| 84 |
800295 |
Screw, Hex Cap 3/8-16x1-3/4 Price: Call Us |
| 85 |
804521 |
Nut - 5/49-24 Hex Price: Call Us |
| 86 |
513132 |
Joint, Ball Price: Call Us |
| 87 |
603372 |
Ball Joins 5/16 Male Price: Call Us |
| 88 |
603500 |
Spacer .313 X .260 Price: Call Us |
| 90 |
805004 |
Washer, Lock 1/4 Price: Call Us |
| 91 |
805256 |
Washer, Flat Std 1/4 Price: Call Us |
| 92 |
323126 |
Lever - Transmission Price: Call Us |
| 94 |
323131 |
Mount - Bellcrank Price: Call Us |
| 95 |
804252 |
Nut, Nyloc #10-24 Price: Call Us |
| 96 |
803017 |
Machine Screw-10-24 x .63 Cir. Price: Call Us |
| 97 |
513051 |
Switch, Neutral Lockout Price: Call Us |
| 98 |
323128 |
Brkt - Safety Switch Price: Call Us |
| 99 |
809012 |
Nut, Whizlock 1/4-20 Price: Call Us |
| 100 |
800252 |
Screw, Hex Cap 1/4-20x3/4 Price: Call Us |
| 303429 |
Disc |
Spring - 3/8 (Brgs. Vngrd.) Price: Call Us 303429 |
| 809035 |
Screw, |
Hex Taptite 3/8x16x1 Price: Call Us 809035 |
