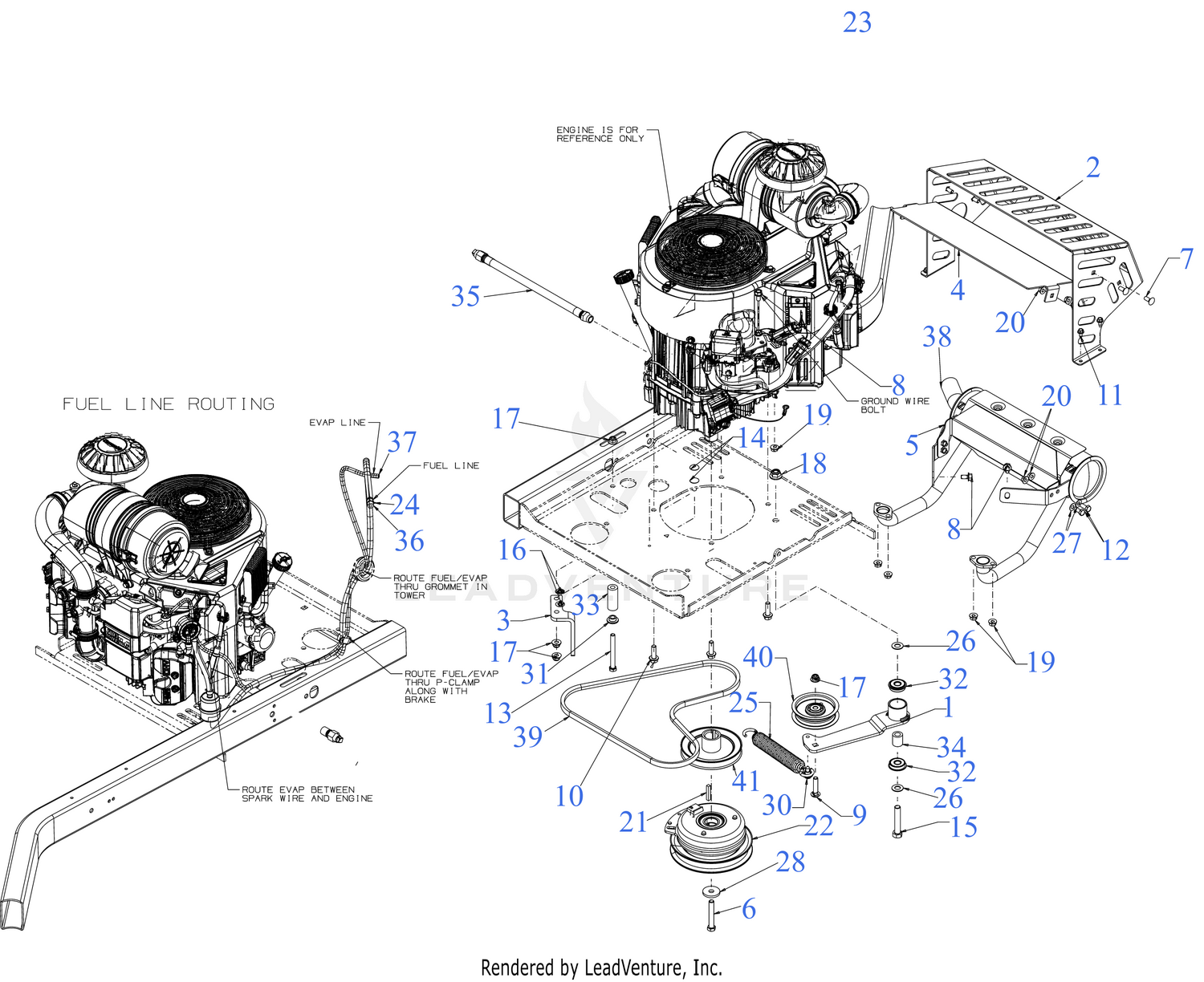

| Ref | Part Number | Description |
|---|
| 1 |
680E00714 |
IDLER BRACKET ASSEMBLY Price: $58.49 |
| 2 |
680-02747 |
MUFFLER SHIELD Price: $142.42 |
| 3 |
703E12821A |
CLUTCH BRACKET Price: $54.90 |
| 5 |
703-27018A |
MUFFLER SHIELD Price: $25.71 |
| 6 |
710-04377 |
SCREW 7/16-20:2.75 GR5 Price: $9.74 |
| 7 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 8 |
710-04748 |
SCREW M8 x 1.25 x 16MM GR8.8 Price: $3.74 |
| 9 |
710-05376 |
CARRIAGE BOLT 3/8-16 x 1.75 GR5 Price: $3.74 |
| 10 |
710-06359A |
SCREW 3/8-16 x 1.25 GR5 Price: $4.13 |
| 11 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 12 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 13 |
710-3085 |
SCREW 3/8-16 x 3.50 GR5 Price: $3.90 |
| 14 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 15 |
710-3230 |
SCREW 1/2-13 x 2.75 GR5 Price: $10.75 |
| 16 |
712-0229 |
PUSH NUT Price: $3.14 |
| 17 |
712-04065 |
NUT Price: $3.68 |
| 18 |
712-04150 |
NUT Price: $3.74 |
| 19 |
712-04312 |
HEX FLANGE NUT Price: $3.37 |
| 20 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 21 |
714-0118 |
SQUARE KEY 1/4 x 1.50 Price: $6.06 |
| 22 |
917-05184 |
ELECTRIC PTO CLUTCH Price: $438.37 |
| 24 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 25 |
732-05360C |
SPRING 1.25" DIA x 8.5" LONG This part replaces 732-05360A. Price: $30.00 |
| 26 |
736-0272 |
FLAT WASHER .510 x .995 Price: $4.37 |
| 27 |
736-0278 |
FLAT WASHER Price: $4.99 |
| 28 |
736-3082A |
FLAT WASHER .45 x 1.5 x .172 HT Price: $9.09 |
| 30 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 31 |
738-04503 |
SHOULDER SPACER Price: $3.70 |
| 32 |
741-05247 |
ROLLER BEARING .5X1.37X.44 Price: $11.38 |
| 33 |
750-04198A |
SPACER .41 x .875 x 2.19 Price: $10.30 |
| 34 |
750-06330 |
SPACER 0.51 x 0.88 x 1.00 Price: $5.78 |
| 35 |
751-10291D |
OIL DRAIN HOSE W/VIBRA SEAL This part replaces 751-10291C. Price: $46.52 |
| 36 |
751-22813-36 |
FUEL HOSE 1/4-36" This part replaces 751-10349-36. Price: $41.21 |
| 37 |
751-12089-51 |
VENT HOSE 3/16 ID 51"LG Price: $14.11 |
| 38 |
751-22410 |
MFLR:FX850:STAND ON Price: $239.28 |
| 39 |
754P05914A |
BELT SEC A x 51.18 Price: $36.02 |
| 40 |
756-06243 |
FLAT IDLER PULLEY 3.5 Price: $26.58 |
| 41 |
756-06263 |
DRIVE PUMP PULLEY Price: $86.04 |
