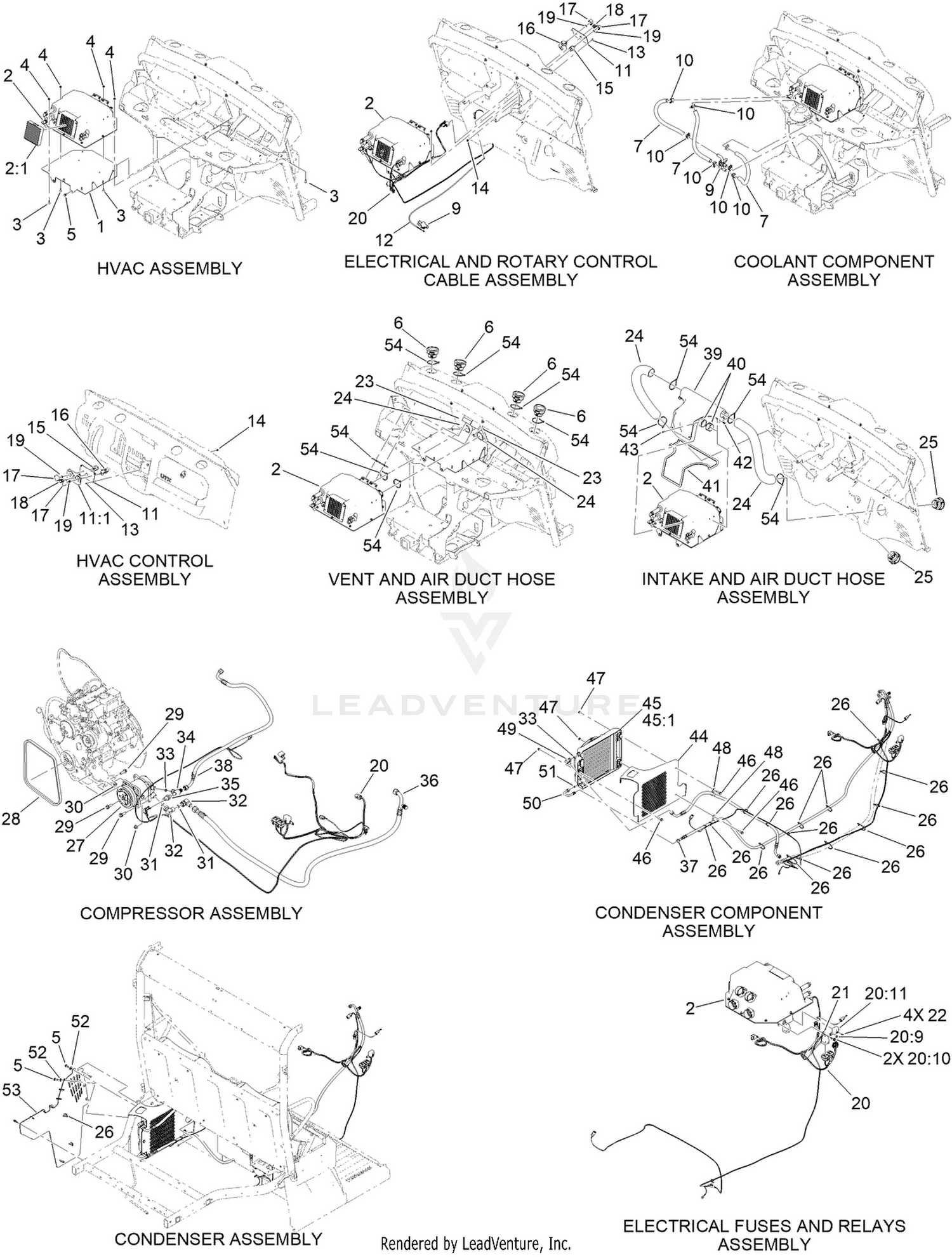

| Ref | Part Number | Description |
|---|
| 1 |
145-2173-03 |
MOUNT-BRACKET, HVAC Price: $92.31 |
| 3 |
1-807512 |
BOLT-CARR Price: $1.29 |
| 4 |
104-7201 |
NUT-HF Price: $0.69 |
| 5 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 7 |
130-6146 |
HOSE-HEATER Price: $14.84 |
| 10 |
144-2248 |
CLAMP-SC BAND Price: $2.10 |
| 11 |
147-2814 |
HVAC CONTROL ASM Price: $32.99 |
| 12 |
120-5035 |
CABLE-CONTROL, HEATER Price: $33.55 |
| 13 |
3274-39 |
SCREW-HSBH Price: $4.34 |
| 14 |
138-0719 |
NUT-HF Price: $0.34 |
| 15 |
122-0150 |
SWITCH, ROTARY Price: $26.70 |
| 16 |
144-3572 |
CONTROL-ROTARY, LINEAR Price: $136.60 |
| 17 |
145-2159 |
KNOB-ROTARY CONTROL Price: $8.71 |
| 18 |
122-2925 |
SWITCH-ROCKER, ON-OFF, LIGHT Price: $13.33 |
| 19 |
130-0588 |
NUT-SWITCH Price: $2.99 |
| 20 |
122-1785 |
HARNESS-WIRE, UTX, A/C Price: $497.96 |
| 21 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 22 |
139-8960 |
SCREW-TORX PH THD ROLL Price: $0.21 |
| 23 |
147-8055 |
HOSE-VENT Price: $10.24 |
| 24 |
147-8065 |
HOSE-VENT Price: $15.37 |
| 25 |
145-7973 |
VENT-HVAC, NON-ADJUSTABLE Price: $35.89 |
| 26 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 27 |
119-0103 |
COMPRESSOR Price: $1,361.16 |
| 28 |
161-5972 |
BELT-V Price: Call Us |
| 29 |
119-4061 |
SCREW-HHF Price: $0.75 |
| 30 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 31 |
117-2780 |
O-RING Price: $3.33 |
| 32 |
119-0128 |
FITTING-ELBOW, 90 DEG Price: $41.31 |
| 33 |
117-2779 |
O-RING Price: $3.85 |
| 34 |
145-2191 |
FITTING-TEE Price: $78.20 |
| 35 |
119-4501 |
SWITCH-FUNCTION, DUAL Price: $66.48 |
| 36 |
145-2185 |
HOSE-ASSEMBLY Price: $348.35 |
| 37 |
145-2186 |
HOSE-ASSEMBLY Price: $383.42 |
| 38 |
145-2187 |
HOSE-ASSEMBLY Price: $237.23 |
| 39 |
145-7964 |
INTAKE-AIR, HVAC Price: $74.36 |
| 40 |
145-7971 |
ADAPTER-FLANGE, 2 INCH Price: $4.99 |
| 41 |
147-2816 |
SEAL-FOAM, HVAC INTAKE Price: $4.28 |
| 42 |
139-3430 |
SCREW-BHF Price: $3.32 |
| 43 |
119-7577 |
SCREW-BHCS Price: $3.87 |
| 44 |
145-2212-03 |
BRACKET-MOUNT, AC CONDENSER Price: Call Us |
| 46 |
132-3837 |
SCREW-HHF Price: $0.76 |
| 47 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 48 |
2412-4 |
CLAMP-R Price: $4.22 |
| 49 |
119-0129 |
FITTING-ELBOW, 90 DEG Price: $33.41 |
| 50 |
147-8075 |
FITTING-180 DEG Price: $46.13 |
| 51 |
117-2778 |
O-RING Price: $3.85 |
| 52 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 53 |
147-2812 |
SKIRT-SIDE, HVAC Price: $76.92 |
