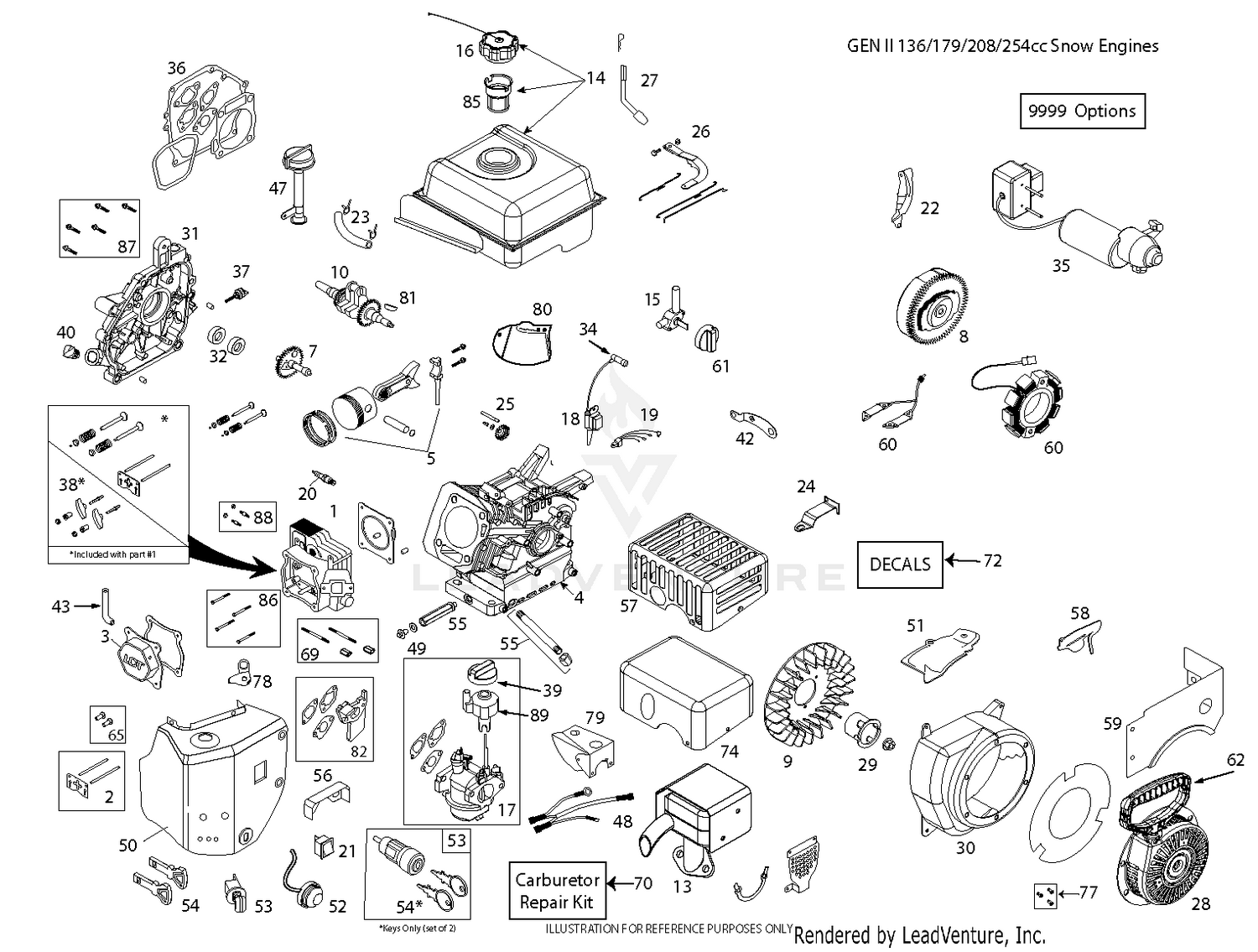

| Ref | Part Number | Description |
|---|
| 1 |
582045701 |
CYLINDER HEAD.208CC.EPA W/GASK This part replaces 532420578. Price: $159.99 |
| 1 |
63-8090-03 |
LOWER HOUSING ASM This part replaces 63-8090. Price: $1,548.75 |
| 2 |
3219-2 |
NUT-HEX Price: $0.37 |
| 2 |
532420579 |
KIT.PUSH.ROD.SRV(SK208-1001) Price: $34.99 |
| 3 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 3 |
587176901 |
VALVE COVER LCT 179/208 This part replaces 532420580. Price: $44.99 |
| 4 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
587147501 |
CYLINDER LCT.208 GEN II SNO Price: $139.99 |
| 5 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 5 |
532420582 |
KIT.PISTON.SRV(SK208-1400) Price: $119.99 |
| 6 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 7 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 7 |
582051401 |
CAMSHAFT.208CC.EPA This part replaces 532420584. Price: $89.99 |
| 8 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 8 |
595012401 |
FLYWHEEL ELECTRIC START W/6 MA This part replaces 532443892. Price: $109.99 |
| 9 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 9 |
532420586 |
FLYWHEEL FAN 420586 Price: $9.99 |
| 10 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 10 |
584362101 |
CRNKSHFT-KYD#14.208CCSKSNO8001 This part replaces 532446642. Price: $129.99 |
| 11 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 13 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 13 |
587737801 |
MUFFLER KIT LCT SKSN2205.1 This part replaces 587147701. Price: $49.99 |
| 14 |
532436564 |
FUEL.TK.ASSY.GENII.SKSN0311.1 Price: $129.99 |
| 14 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 15 |
12-5450 |
SCREW Price: $7.99 |
| 15 |
532429234 |
FUEL.PETCOCK.SNOW(SKSN4900) Price: $14.99 |
| 16 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 16 |
532424942 |
FUEL CAP OVERSIZED CLICK STYLE Price: $14.99 |
| 17 |
587147901 |
CARBURETTOR L10-1D.W/SP Price: $89.99 |
| 17 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 18 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 18 |
532443894 |
COIL.ING.CDI.HI TEMP.SKSNO416. Price: $37.99 |
| 19 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 20 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 20 |
532424939 |
SPARK.PLUG(2083810) Price: $14.99 |
| 21 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 21 |
532424957 |
SWITCH.ON/OFF(SKSN-0403) Price: $39.99 |
| 22 |
532424975 |
SHLD.ELEC.START.FLY(SKSN-0605) Price: $4.99 |
| 22 |
86-7190 |
UPPER HOUSING ASM Price: $889.26 |
| 23 |
3210-7 |
SCREW-HH Price: $0.61 |
| 23 |
532438014 |
KIT.FUEL.HOSE.208CC.SING/STAGE This part replaces 532432144. Price: $8.99 |
| 24 |
254-90 |
BEARING-CUP Price: $11.29 |
| 24 |
532429259 |
SPEED.CTRL.BRKT.(SKSN0150) Price: $11.99 |
| 25 |
254-91 |
CONE-BEARING Price: $18.65 |
| 25 |
532429646 |
GOVENOR.GEARS ASM(SK2082900) Price: $34.99 |
| 26 |
581768701 |
CARBURETTOR GOVERNOR LINK.ASM. Price: $7.99 |
| 26 |
68-7010 |
FLANGE Price: $306.32 |
| 27 |
532420602 |
KIT.GOVERNOR.CRANK(SK208-3100) Price: $5.99 |
| 27 |
71-4340 |
WASHER Price: $15.47 |
| 28 |
532436967 |
RECOIL.STRT.ROUND(BLK) SNOW Price: $39.99 |
| 28 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 28 |
72-3590 |
SHIM-BEARING, FRONT (.133) Price: $22.53 |
| 29 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 29 |
532436968 |
STRTER.CUP(NON-SLOT)SKSN0601.2 Price: $29.99 |
| 30 |
587154201 |
BLOWER HSG.LCT 254 GLOSS BLK S This part replaces 587148001. Price: $29.99 |
| 31 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 31 |
585772701 |
CRANKCASE.CVR.PRESS.IN.HI-OIL. This part replaces 587148101. Price: $37.99 |
| 32 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 32 |
532429599 |
SEAL KIT (2 PCS) Price: $14.99 |
| 33 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 34 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 34 |
532436966 |
SPARK.PLUG.BOOT.SNW,SKSN4691.1 Price: $14.99 |
| 35 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 35 |
532436466 |
ELEC.START.GEN2.SKSN0451.1 Price: $329.99 |
| 36 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 36 |
532429601 |
GASKET.KIT.208CC(SK2084300.1) Price: $49.99 |
| 37 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
532420961 |
DIPSTICK SMALL Price: $9.99 |
| 38 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 38 |
532429691 |
ROCKER ARM KIT Price: $59.99 |
| 39 |
532429224 |
CHOKE.KNOW.SNOW(SKSN4500) Price: $7.99 |
| 40 |
532429598 |
NON REMOVABLE PLUG Price: $11.99 |
| 40 |
72-9420 |
VENT Price: $6.85 |
| 42 |
532424936 |
CDI.BOX.BRACKET SNOW Price: $6.99 |
| 43 |
580353401 |
TUBE.BREATHER.LCT.208 Price: $3.99 |
| 45 |
289-6 |
NIPPLE-PIPE Price: $6.96 |
| 46 |
2810-1 |
COUPLING-PIPE Price: $4.55 |
| 47 |
532424969 |
HIGH OIL FILL DIPSTICK ASSEM Price: $24.99 |
| 47 |
71-4350 |
NUT Price: $3.46 |
| 48 |
532429262 |
WIRE.HARNESS.SNOW Price: $12.99 |
| 48 |
71-4330 |
SEAL Price: $36.26 |
| 49 |
532435495 |
KIT.OIL.DRAIN.PLUG(SK2089911 Price: $7.99 |
| 50 |
532436561 |
HEATER.BOX.ASY-GEN2 Price: $139.99 |
| 52 |
532424949 |
PRIMER.BULB.WITH HOSE (SNOW) Price: $11.99 |
| 53 |
532424954 |
SWITH.KEY.ASSEM.SNOW.SINGLE.ST Price: $24.99 |
| 54 |
532443059 |
KEY SET(2 KEYS) SKSN0407.1 Price: $11.99 |
| 55 |
587139901 |
OIL PIPE DRAIN EXTENDED.LCT SK Price: $22.99 |
| 56 |
532429260 |
SHIELD.VAPOR.SNOW Price: $14.99 |
| 57 |
532436672 |
SHIELD.MUFFLER.CE.COMPLIANT Price: $54.99 |
| 58 |
532424960 |
GOVERNOR.LINK.SHIELD PLATE Price: $8.99 |
| 59 |
532436562 |
FUEL.TNK.SKRT.GENII.SKSN0103.1 Price: $17.99 |
| 61 |
532432752 |
FUEL KNOB-SNOW Price: $7.99 |
| 62 |
532443899 |
HANDLE.RECOIL.DELUXE.LCT Price: $14.99 |
| 65 |
581372801 |
TAPPET.KIT.LCT.208CC Price: $19.99 |
| 69 |
532424951 |
CARB.STUDS & COUPLING KIT.SNOW Price: $12.99 |
| 70 |
580353601 |
CARB.REPAIR.KIT.LCT.SK9900.2 Price: $64.99 |
| 74 |
532436672 |
SHIELD.MUFFLER.CE.COMPLIANT This part replaces 587148201. Price: $54.99 |
| 77 |
532432688 |
BOLT.KIT.RECOIL.LCT.ALL.ENGINE Price: $3.99 |
| 78 |
581459301 |
BRACKET Price: $6.99 |
| 79 |
585773701 |
COVER.CARBURETOR.SNOW Price: $17.99 |
| 81 |
585297201 |
KEYS.FLYWHEEL.208/414CC.5PACK Price: $22.99 |
| 82 |
585020503 |
SPACER.CARBURETOR.208CC.LCT Price: $3.99 |
| 85 |
586325601 |
STRAINER.FUEL.TANK.LCT.208CC Price: $4.99 |
| 86 |
586327301 |
KIT.BOLT.CYLINDER.HEAD.(4PC) Price: $12.99 |
| 87 |
586326901 |
KIT.BOLT.CRANKCASE.COVER.6PC Price: $6.99 |
| 88 |
586326801 |
STUD.MUFFLER.KIT.LCT Price: $8.99 |
