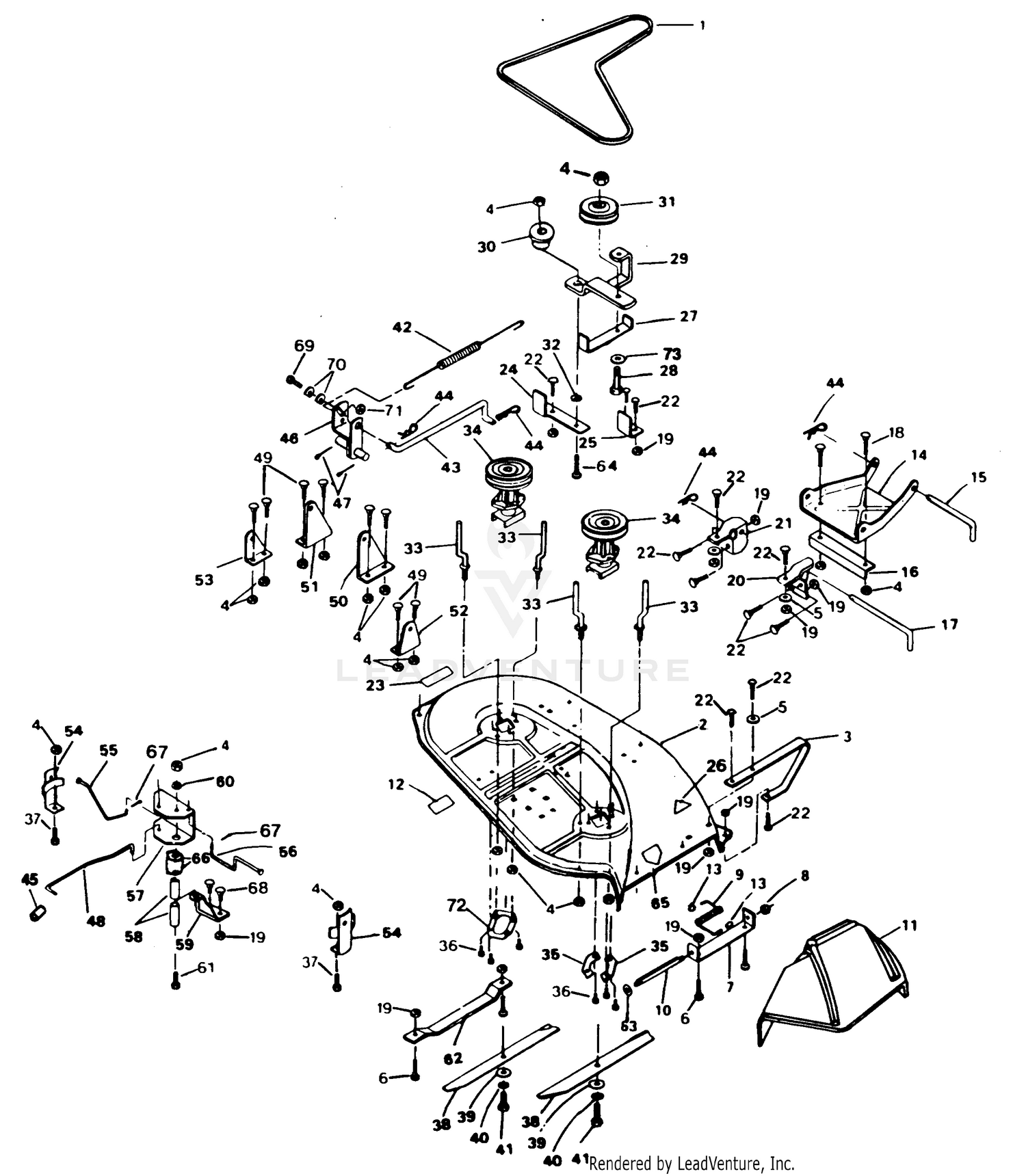

| Ref | Part Number | Description |
|---|
| 1 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 1 |
532106085 |
V-Belt (AYP part number) Price: $24.99 |
| 2 |
321-2 |
SCREW-HH Price: $2.79 |
| 2 |
532121259 |
Housing (AYP part number) Price: $139.99 |
| 3 |
27-7450 |
DISCONTINUED Price: Call Us |
| 3 |
532128772 |
Runner, RH (AYP part number) This part replaces 532008417. Price: $5.99 |
| 4 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 4 |
873680600 |
Crownlock Nut Price: $1.99 |
| 5 |
3217-7 |
NUT-HEX Price: $0.28 |
| 5 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 6 |
42-6390 |
GEAR BOX BASE ASM This part replaces 27-0720. Price: $98.18 |
| 6 |
872140505 |
Carriage Bolt (AYP part number) Price: $2.99 |
| 7 |
27-7430 |
DISCONTINUED Price: Call Us |
| 7 |
532137607 |
Bracket Assembly, Deflector (AYP part number) This part replaces 532105896. Price: $3.99 |
| 8 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 8 |
532110452 |
Pushnut (AYP part number) Price: $1.99 |
| 9 |
3245-9 |
SCREW-SET, HSH Price: $0.81 |
| 9 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 10 |
27-6140 |
BUSHING-LOCK, TAPER Price: $84.79 |
| 10 |
532106735 |
Hinge Rod (AYP part number) Price: $4.99 |
| 11 |
532106736 |
Shield Deflector (AYP part number) Price: $27.99 |
| 11 |
8-0909 |
DISCONTINUED This part replaces 27-0790. Price: Call Us |
| 12 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 12 |
532105814 |
V-Belt Mower Drive Decal (AYP part number) Price: $5.53 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 13 |
532105304 |
Cap (AYP part number) Price: $2.99 |
| 14 |
27-4520 |
UNIVERSAL JOINT Price: $609.22 |
| 14 |
532105662 |
Parallel Link (AYP part number) Price: $15.31 |
| 15 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 15 |
532105744 |
Front Hinge Pin (AYP part number) Price: $9.99 |
| 16 |
3274-1 |
SCREW-HSH Price: $5.52 |
| 16 |
532105872 |
Link Stop (AYP part number) Price: $2.61 |
| 17 |
27-6110 |
DISCONTINUED Price: Call Us |
| 17 |
532109835 |
Rear Hinge Pin (AYP part number) Price: $13.61 |
| 18 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 18 |
874760612 |
Bolt (AYP part number) Price: $1.99 |
| 19 |
27-1280 |
DISCONTINUED Price: Call Us |
| 19 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 20 |
42-6360 |
DISCONTINUED This part replaces 27-7440. Price: Call Us |
| 20 |
532109598 |
R.H. Lift Bracket (AYP part number) Price: $3.96 |
| 21 |
27-0760 |
DISCONTINUED Price: Call Us |
| 21 |
532109597 |
L.H. Lift Bracket (AYP part number) Price: $3.96 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 23 |
532003713 |
Caution Instruction Decal (AYP part number) Price: $13.98 |
| 24 |
532109503 |
Arm Support (AYP part number) Price: $2.42 |
| 25 |
532109504 |
Front Deck Stop (AYP part number) Price: $6.02 |
| 27 |
532126756 |
Guide, Belt (AYP part number) This part replaces 532123204. Price: $25.96 |
| 28 |
874930632 |
BOLT.375-16 This part replaces 874760632. Price: $3.99 |
| 29 |
532123553 |
Idler Arm (AYP part number) Price: $17.99 |
| 30 |
532106902 |
Retainer Spacer (AYP part number) Price: $2.99 |
| 31 |
532121316 |
Idler Pulley (AYP part number) Price: $22.99 |
| 32 |
532106513 |
Wear Washer (AYP part number) Price: $2.99 |
| 33 |
532102669 |
Keeper Belt (AYP part number) Price: $3.68 |
| 34 |
532121687 |
Mandrel Assembly (AYP part number) Price: $74.99 |
| 35 |
532100668 |
Mandrel Support Plate (AYP part number) Price: $2.38 |
| 36 |
817490614 |
Washer Hd. Hex Screw (AYP part number) Price: Call Us |
| 37 |
874760620 |
BOLT This part replaces 817490620. Price: $3.99 |
| 38 |
532143978 |
BLADE 38" This part replaces 532121263. Price: $14.99 |
| 39 |
819132012 |
Washer (AYP part number) Price: $2.99 |
| 40 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 41 |
874610624 |
Hex Bolt (AYP part number) Price: $3.99 |
| 42 |
532108250 |
Extension Spring (AYP part number) Price: $17.99 |
| 43 |
532108235 |
Mower Clutch Rod (AYP part number) Price: $10.06 |
| 44 |
532004921 |
Retainer Spring (AYP part number) Price: $3.99 |
| 45 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) This part replaces 876020312. Price: $1.99 |
| 46 |
532109892 |
ROCKSHAFT This part replaces 532124066. Price: $11.99 |
| 47 |
876020616 |
Cotter Pin (AYP part number) Price: Call Us |
| 48 |
532108247 |
Primary Brake Rod (AYP part number) Price: $5.99 |
| 49 |
872140606 |
Carriage Bolt (AYP part number) Price: $3.99 |
| 50 |
532108243 |
R.H. Pivot Bracket (AYP part number) Price: $16.38 |
| 51 |
532108241 |
L.H. Pivot Bracket (AYP part number) Price: $4.73 |
| 52 |
532105857 |
R.H. Rear Bracket Suspension (AYP part number) Price: $2.42 |
| 53 |
532108673 |
L.H. Rear Bracket Suspension (AYP part number) Price: $3.99 |
| 54 |
532106578 |
Brake Assembly (AYP part number) Price: $32.99 |
| 55 |
532106463 |
L.H. Secondary Brake Rod (AYP part number) Price: $4.91 |
| 56 |
532108249 |
R.H. Secondary Brake Rod (AYP part number) Price: $22.99 |
| 57 |
532106456 |
Pivot Brake Bracket (AYP part number) Price: $10.08 |
| 58 |
532100672 |
Brake Spacer (AYP part number) Price: $2.99 |
| 59 |
532100673 |
Support Bracket (AYP part number) Price: $5.17 |
| 60 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 61 |
874760688 |
Bolt (AYP part number) Price: $3.99 |
| 62 |
532007631 |
Runner, Mower LH (AYP part number) This part replaces 532125074. Price: $11.99 |
| 63 |
819111016 |
Washer (AYP part number) Price: $5.99 |
| 64 |
583611601 |
BOLT.3/8-14X1.25 This part replaces 872140610. Price: $3.99 |
| 65 |
532121343 |
Warning Decal (AYP part number) Price: $3.33 |
| 66 |
532122314 |
Spacer (AYP part number) Price: $3.23 |
| 67 |
876020308 |
Cotter Pin (AYP part number) Price: $1.99 |
| 68 |
872110506 |
Carriage Bolt (AYP part number) Price: $3.99 |
| 69 |
874760412 |
Hex Bolt (AYP part number) Price: $3.99 |
| 70 |
532109893 |
Special Washer (AYP part number) Price: $2.99 |
| 71 |
873680400 |
Crownlock Washer (AYP part number) Price: $2.99 |
| 72 |
532110445 |
L.H. Mandrel Support (AYP part number) Price: $7.99 |
| 73 |
819131316 |
Washer (AYP part number) Price: $2.99 |
