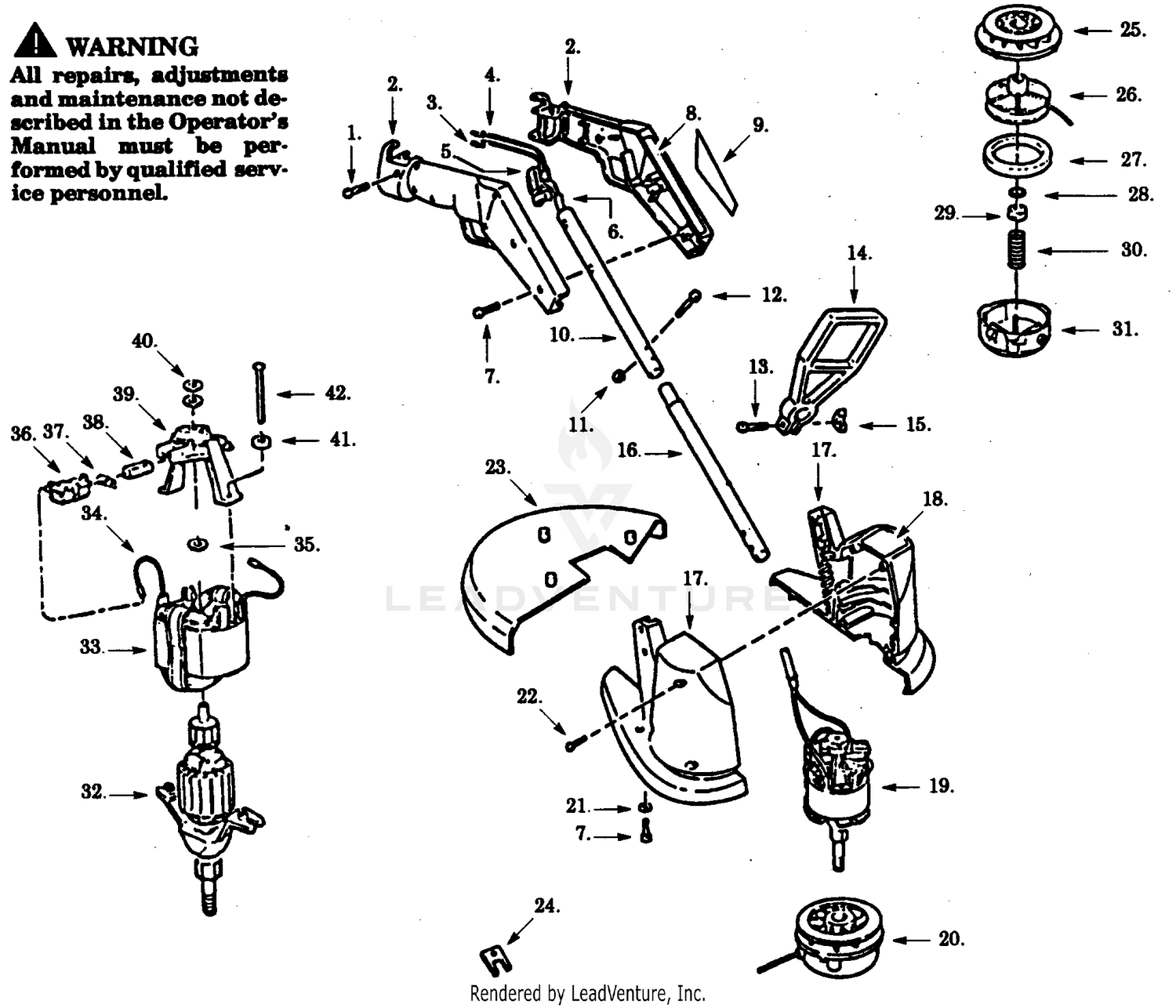

TRIMMER/BRUSHCUTTER ASSEMBLY
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-3488 | GROOMER SHAFT ASM Price: $440.69 |
| 1 | 534826802 | Screw Price: $0.99 |
| 2 | 140-5616 | SPACER-SS This part replaces 70-1350. Price: $2.60 |
| 2 | 534826502 | Handle Set Price: $5.99 |
| 3 | 140-5582 | BLADE-GR GROOMER, HELIX (0.015") This part replaces 127-6124. Price: $3.07 |
| 3 | 534825700 | Wire Terminal Ass'y. Price: $1.99 |
| 4 | 534827900 | Wire Terminal Ass'y. Price: $1.99 |
| 5 | 534193003 | Trigger Switch Price: $2.99 |
| 6 | 534866001 | Harness Ass'y. Price: $2.99 |
| 7 | 534826801 | Screw Price: $1.99 |
| 8 | 534795300 | Handle Label Price: $3.33 |
| 9 | 534837000 | Warning Label (Not a serviceable part) Price: $3.33 |
| 10 | 534828100 | Upper Tube Price: $5.99 |
| 11 | 534828300 | Stop Nut Price: $3.33 |
| 12 | 534829600 | Screw Price: $3.33 |
| 13 | 534828400 | Bolt Price: $1.99 |
| 14 | 534156405 | Assist Handle Price: $3.33 |
| 15 | 534828500 | Wing Nut Price: $3.33 |
| 16 | 534828200 | Lower Tube Price: $4.44 |
| 17 | 534826602 | Housing Set Price: $6.99 |
| 18 | 534795400 | Housing Top Label Price: $3.33 |
| 19 | 534780003 | Motor Ass'y. Price: $64.99 |
| 20 | 534167012 | Cutting Head Ass'y. Price: $3.33 |
| 21 | 534828700 | Washer Price: $1.99 |
| 22 | 534826800 | Screw Price: $1.99 |
| 23 | 534368003 | Guard & Blade Ass'y. Price: $3.33 |
| 24 | 534166800 | Wrench Price: $0.52 |
| 25 | 534832900 | Rear Plate/Baffle Ass'y Price: $3.33 |
| 26 | 534167815 | Spool & Line Price: $11.20 |
| 27 | 534167700 | Foam Pad Price: $3.33 |
| 28 | 534316200 | O-Ring Price: $0.99 |
| 29 | 534166700 | Adapter Nut Price: $1.99 |
| 30 | 534819200 | Spring Price: $1.99 |
| 31 | 534167935 | Hub Ass'y. Price: $3.33 |
| 32 | 534874303 | Armature Endbell Price: $3.33 |
| 33 | 534367803 | Field Ass'y. Price: $3.33 |
| 34 | 534810031 | Lead Wire Ass'y. Price: $3.33 |
| 35 | 534494616 | Washer Price: $1.99 |
| 36 | 534260007 | Brush Holder Ass'y. Price: $2.99 |
| 37 | 534570009 | Brush Spring Price: $1.99 |
| 38 | 534200018 | Brush Price: $1.99 |
| 39 | 534710641 | Endbell Ass'y. (Brush) Price: $4.99 |
| 40 | 534246701 | Retaining Ring Price: $0.99 |
| 41 | 534520020 | Lockwasher Price: $1.99 |
| 42 | 534500261 | Screw Price: $3.33 |
