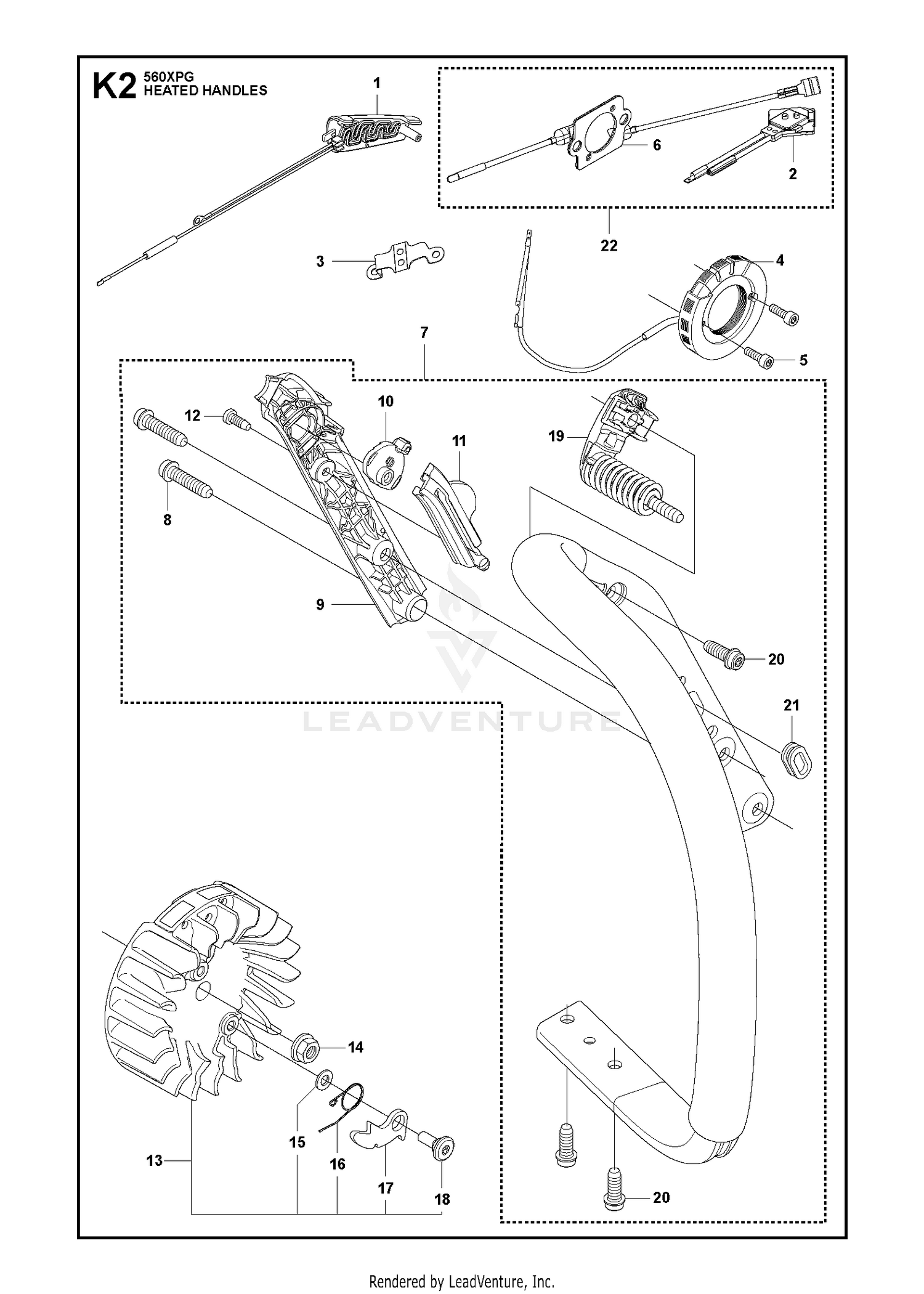

HANDLE HEATED
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 522741901 | HANDLE INSERT Price: $37.99 |
| 2 | 578864601 | THERMOSTAT ASSY Price: $64.99 |
| 3 | 537210801 | HOLDER Price: $2.99 |
| 4 | 587056601 | STATOR This part replaces 522611401. Price: $159.99 |
| 5 | 526818102 | SCREW ITXSCM M4X15 T27 12.9 T Price: $2.99 |
| 6 | 588168602 | FOIL ELEMENT Price: $54.99 |
| 7 | 575388904 | FRONT HANDLE Price: $109.99 |
| 8 | 525798103 | SCREW Price: $2.99 |
| 9 | 505157403 | COVER Price: $5.99 |
| 10 | 537252501 | HANDLE Price: $5.99 |
| 11 | 510097801 | CONTACT PLATE Price: $4.99 |
| 12 | 525887402 | SCREW CITXPANT Price: $2.99 |
| 13 | 504872402 | FLYWHEEL ASSY This part replaces 504872404. Price: $119.99 |
| 15 | 503230042 | WASHER Price: $3.99 |
| 16 | 501673501 | SPRING Price: $3.99 |
| 17 | 501673201 | PAWL Price: $6.99 |
| 18 | 501819901 | SCREW M5X14 This part replaces 506006901. Price: $2.99 |
| 19 | 505129705 | ANTIVIBRATION ELEMENT CYLINDER Price: $24.99 |
| 20 | 525798101 | SCREW ITXSCFT PL6X16 T27 10.9 Price: $2.99 |
| 21 | 537088301 | GROMMET Price: $4.99 |
