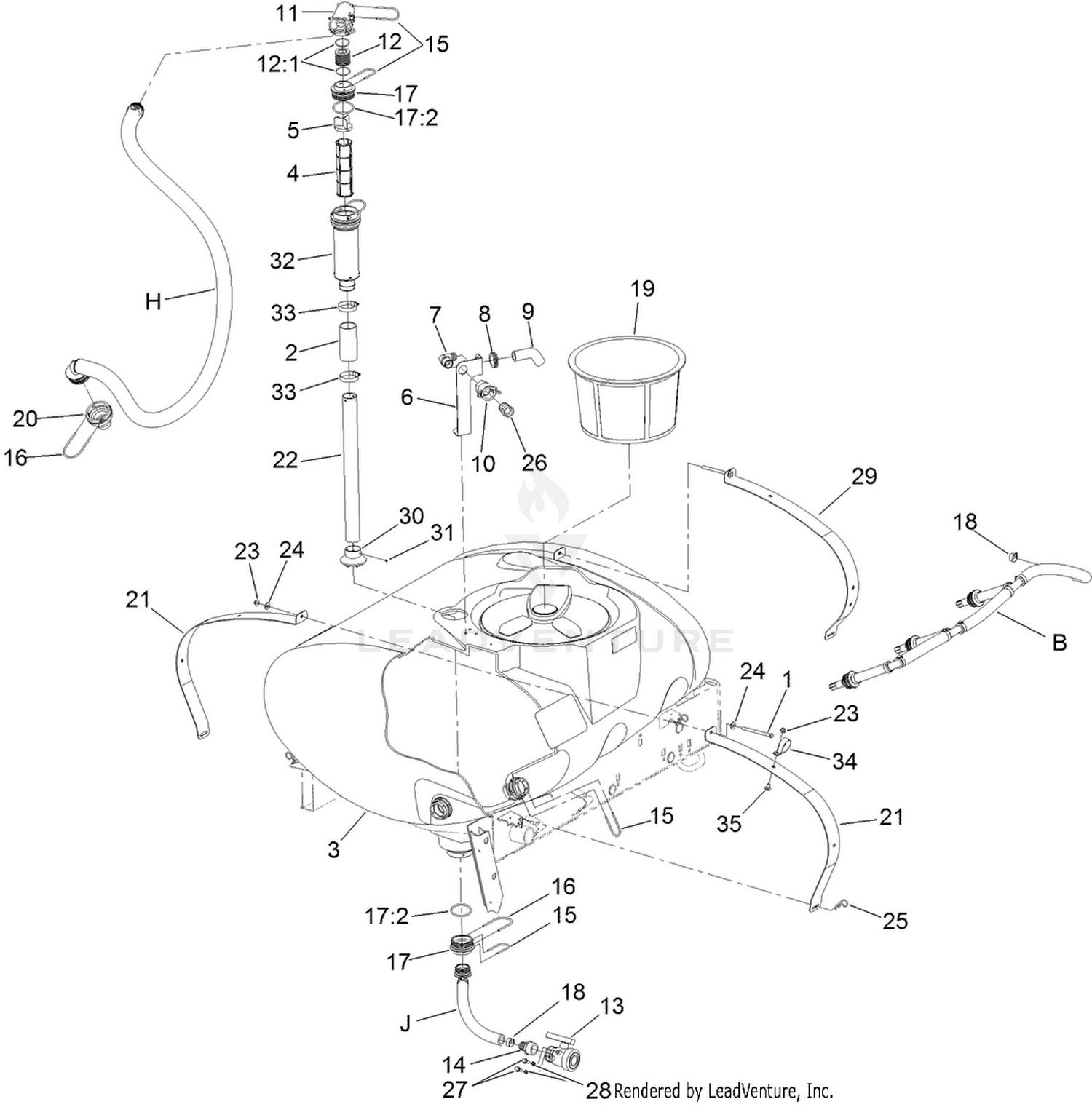

Spray Tank Assembly
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 323-59 | BOLT-CAP Price: $3.89 |
| 2 | 100-8649 | HOSE-SUCTION Price: $24.44 |
| 3 | 121-6491 | TANK ASM Price: $1,936.35 |
| 4 | 100-8642 | SCREEN-SUCTION Price: $64.17 |
| 5 | 100-8641 | VANE-SCREEN Price: $32.05 |
| 6 | 110-5082-03 | BRACKET-ANTI SIPHON Price: $55.49 |
| 7 | 41140 | ELBOW Price: $11.18 |
| 8 | 110-5090 | GROMMET Price: $7.08 |
| 9 | 110-5088 | HOSE-FILL Price: $18.92 |
| 10 | 100-6779 | COUPLING-FEMALE Price: $58.88 |
| 11 | 100-6704 | TEE Price: $103.01 |
| 12 | 106-4947 | CONNECTOR Price: $18.42 |
| 13 | 108-0069 | VALVE-BALL Price: $154.28 |
| 14 | 110-5224 | FITTING-BARBED, STRAIGHT Price: $5.40 |
| 15 | 100-8635 | FORK Price: $4.91 |
| 16 | 117-7996 | FORK Price: $9.74 |
| 17 | 117-7928 | ADAPTER ASM Price: $36.88 |
| 18 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 19 | 119-9419 | BASKET-FILTER Price: $119.92 |
| 20 | 117-7858 | FITTING-PUMP Price: $44.51 |
| 21 | 121-6477-03 | BAND-TANK Price: $66.85 |
| 22 | 125-7997 | TUBE-SUCTION Price: $46.69 |
| 23 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 24 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 25 | 3290-343 | PIN-HAIR Price: $0.76 |
| 26 | 41316 | ADAPTER-QUICK Price: $31.51 |
| 27 | 3234-29 | SCREW-HHF Price: $1.84 |
| 28 | 3296-47 | NUT-LOCK, NI Price: $3.59 |
| 29 | 125-0987-03 | BAND-TANK, REAR Price: $53.85 |
| 30 | 100-6714 | FOOT-TUBE, SUCTION Price: $13.39 |
| 31 | 108-3270 | SCREW-TAP Price: $1.90 |
| 32 | 130-7096 | FILTER ASM This part replaces 125-8006. Price: $109.22 |
| 33 | 2412-125 | CLAMP-HOSE Price: $5.22 |
| 34 | 2412-96 | CLAMP-R Price: $3.46 |
