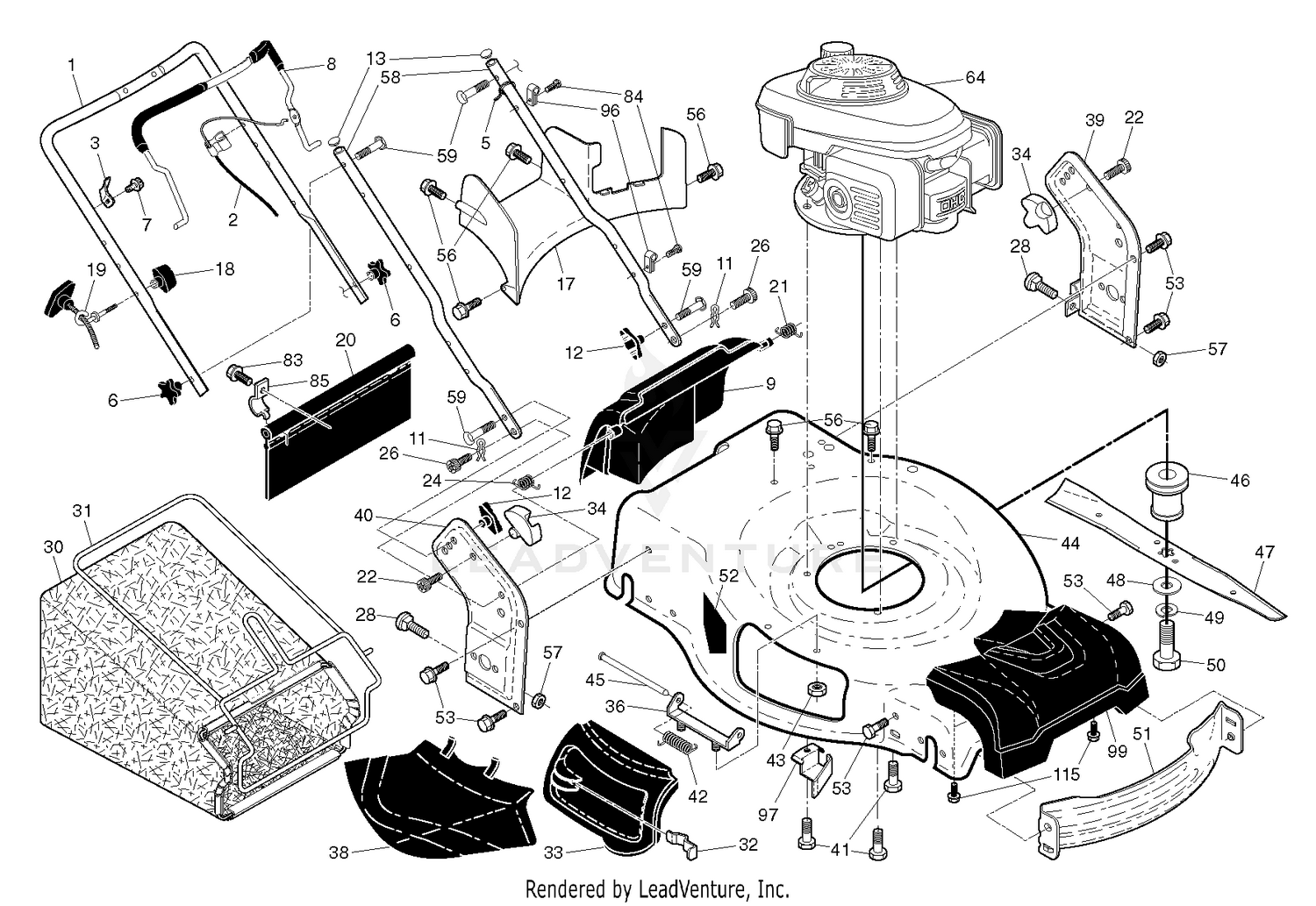

| Ref | Part Number | Description |
|---|
| 1 |
580638706 |
HANDLE.UPPER.3.POS.BS.AW2.GREY Price: $44.99 |
| 1 |
60-7160 |
DISCONTINUED Price: Call Us |
| 2 |
532427497 |
CABLE.MZR.50.SNAP-IN Price: $12.99 |
| 2 |
70-6360 |
DISCONTINUED Price: Call Us |
| 3 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 3 |
70-6340 |
COVER Price: $874.71 |
| 4 |
70-6330 |
DISCONTINUED Price: Call Us |
| 5 |
70-6320 |
WHEEL Price: $949.09 |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 6 |
70-6300 |
DISCONTINUED Price: Call Us |
| 7 |
532178848 |
SCREW Price: $3.99 |
| 7 |
70-6270 |
DISCONTINUED Price: Call Us |
| 8 |
580849102 |
BAIL.OVER.MOLD.ERGO.MZR.ORANGE Price: $44.99 |
| 8 |
70-6290 |
INSERT Price: $82.93 |
| 9 |
593304501 |
DOOR ASSY REAR;22+.HUSQVARNA N This part replaces 532431390. Price: $39.99 |
| 9 |
70-6280 |
DEFLECTOR Price: $9.13 |
| 10 |
70-6310 |
DISCONTINUED Price: Call Us |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 11 |
70-6410 |
SLEEVE Price: $83.86 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 12 |
70-6380 |
BEARING Price: $73.25 |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $3.99 |
| 13 |
70-6420 |
RING Price: $67.98 |
| 14 |
70-6370 |
BEARING Price: $30.84 |
| 15 |
70-6390 |
DISCONTINUED Price: Call Us |
| 16 |
70-6450 |
HOUSING Price: $2,006.73 |
| 17 |
70-6230 |
COUPLING ASSEMBLY Price: $133.26 |
| 18 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $3.99 |
| 18 |
70-6400 |
DISCONTINUED Price: Call Us |
| 19 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $3.99 |
| 19 |
70-6470 |
DISCONTINUED Price: Call Us |
| 20 |
532444501 |
SKIRT.REAR.22PLUS.RGD.LW(2 2MC Price: $11.99 |
| 20 |
70-6350 |
DISCONTINUED Price: Call Us |
| 21 |
532419949 |
SPRING.LH.BLACK Price: $4.99 |
| 21 |
70-6260 |
PLATE Price: $14.89 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 22 |
70-6460 |
DISCONTINUED Price: Call Us |
| 23 |
70-3010 |
DISCONTINUED Price: Call Us |
| 24 |
532419948 |
SPRING.RH.GRAY Price: $4.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $4.99 |
| 28 |
586212501 |
BOLT.CARRIAGE.LN.5/16-18X.5/8 Price: $2.99 |
| 30 |
580947302 |
GBAG.A3610010.BLK.GENERIC This part replaces 580947315. Price: $59.99 |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK Price: $17.99 |
| 32 |
532441192 |
LATCH.DOOR.ZINC Price: $3.99 |
| 33 |
594942002 |
DOOR.MULCH.22+.BLK This part replaces 532419927. Price: $5.99 |
| 34 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 38 |
532426129 |
DEFLECTOR.CLIPPING.22.BLACK Price: $9.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 44 |
532446261 |
HOUSING.22+.RWD.HUSQ.ORANGE Price: $179.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
581851501 |
ADAPTER.BLADE.25MM.3MPH Price: $14.99 |
| 47 |
532420463 |
BLADE.22PLUS Price: $19.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 51 |
532430599 |
BAFFLE.FRONT.22.PLUS Price: $12.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 58 |
532441197 |
HANDLE.LOWER.22+BT.2PC.GRY Price: $14.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 83 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $3.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 97 |
581313802 |
BRACKET.DRIVE.COVER.RGD. Price: $9.99 |
| 99 |
585668702 |
COVER.ASM.FRONT.HUSQ.22+RGD Price: $24.99 |
| 115 |
584299401 |
SCREW.HI-LO. 5/16 X 1.00 Price: $2.99 |
