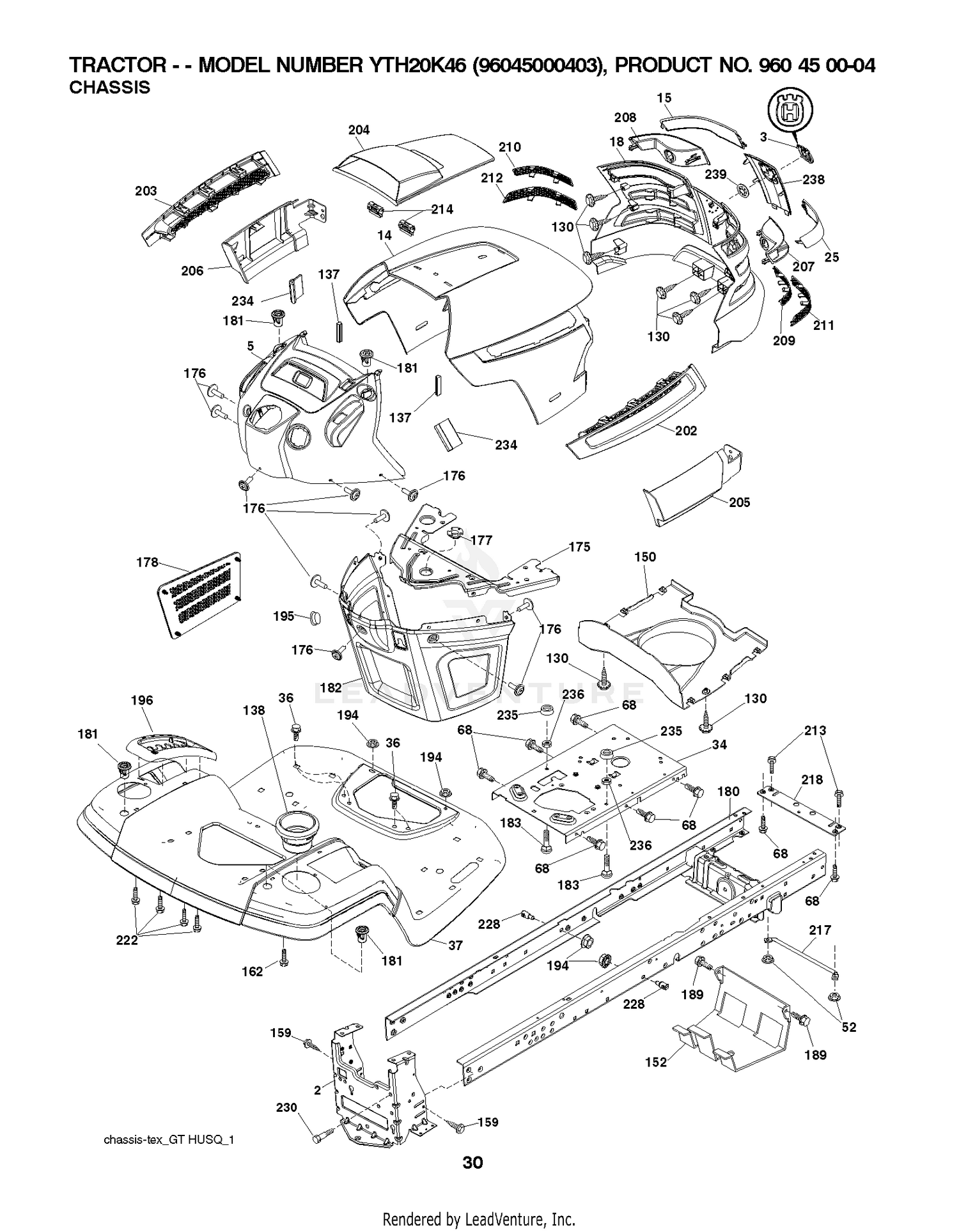

| Ref | Part Number | Description |
|---|
| 2 |
105-8122 |
SEAL-BOOT Price: $19.70 |
| 2 |
532194263 |
DRAWBAR.1PC.NSTL Price: $54.99 |
| 3 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H This part replaces 532405012. Price: $5.99 |
| 4 |
105-8120 |
BEARING-CONE Price: $98.15 |
| 4 |
532404472 |
HUSQ.GRILLE.CROWN.LOGO This part replaces 532199348. Price: $14.99 |
| 5 |
105-8119 |
BEARING-CUP Price: $130.48 |
| 5 |
532408703 |
DASH Price: $54.99 |
| 6 |
105-8124 |
STUD-WHEEL Price: $7.84 |
| 7 |
105-8125 |
BOLT-HEAD, SOCKET Price: $6.53 |
| 8 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 10 |
105-8121 |
PIN-DOWEL Price: $0.41 |
| 11 |
105-8117 |
BEARING-CUP Price: $114.89 |
| 12 |
105-8118 |
BEARING-CONE Price: $87.73 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532411046. Price: $149.99 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 16 |
105-8113 |
GEAR-RING Price: $633.38 |
| 17 |
105-8132 |
RING-RETAINING Price: $16.29 |
| 18 |
353-990 |
PLUG ASM Price: $10.01 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM Price: $129.99 |
| 19 |
105-8138 |
CAP-END Price: $92.32 |
| 21 |
105-8133 |
PLUG-THRUST Price: $36.88 |
| 22 |
105-8123 |
WASHER-THRUST Price: $20.15 |
| 23 |
105-8131 |
RING-RETAINING Price: $3.05 |
| 24 |
105-8114 |
GEAR-PRIMARY Price: $100.24 |
| 25 |
105-8115 |
SHAFT-DRIVE Price: $134.40 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 26 |
105-8129 |
CARRIER-PRIMARY Price: $691.83 |
| 27 |
105-8139 |
GEAR-SECONDARY Price: $146.04 |
| 28 |
105-8130 |
CARRIER-SECONDARY Price: $726.53 |
| 29 |
105-8136 |
SHIM KIT Price: $177.70 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
597652401 |
SERVICE KIT FENDER.TLT.CPH.615 This part replaces 532404794. Price: $219.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 138 |
532439747 |
HOLDER.CUP.LT.GREY This part replaces 532402954. Price: $4.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
579841501 |
KITS.CHASSIS.WELD.SERVICE This part replaces 532195457. Price: $219.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR This part replaces 532194787. Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
532414579 |
CONSOLE.ASM.DECKLFT.BL/RBT.TLT This part replaces 532402843. Price: $22.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532198904. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 222 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 230 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 238 |
532408606 |
TRIM.HUSQ.TG/CRD.SERVICE Price: $17.99 |
| 239 |
532110452 |
NUT PUSH M Price: $2.99 |
