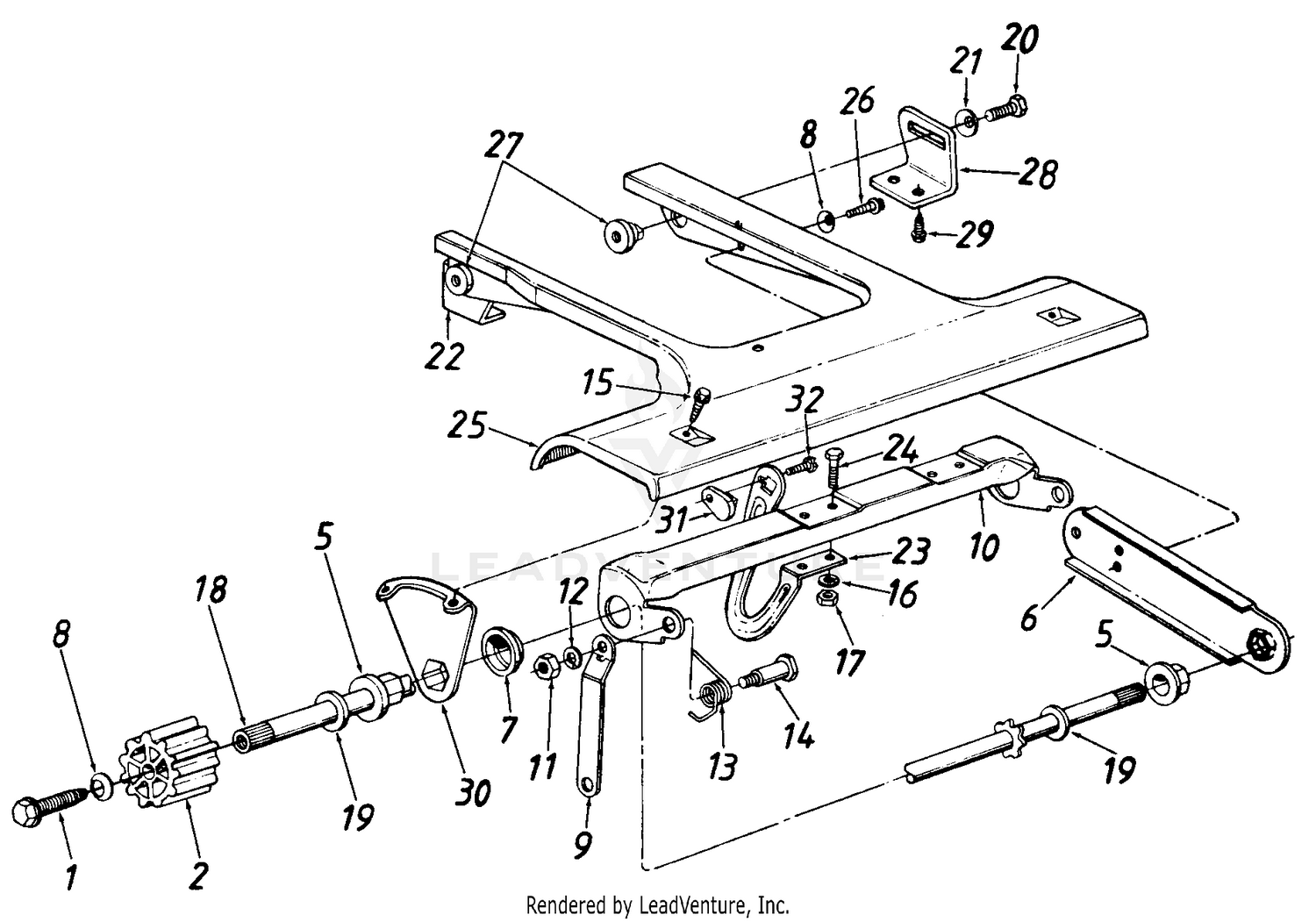

| Ref | Part Number | Description |
|---|
| 1 |
710-0642 |
Hex Wash. Hd. Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
| 2 |
931-0908 |
DRIVE PINION This part replaces 731-0908. Price: $15.30 |
| 5 |
741-0503 |
Hex Flange Brg. .504" I.D. Price: $2.93 |
| 6 |
17018 |
SUPPORT-BEARING Not Available Price: |
| 7 |
741-0504 |
FLANGE BEARING Not Available Price: |
| 8 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 9 |
16532 |
LINK-5.3 LG Not Available Price: |
| 10 |
16832 |
DRIVE ENGAGEMENT CAM Not Available Price: |
| 11 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 12 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 13 |
732-0569 |
TORSION SPRING (RH) Not Available Price: |
| 14 |
738-0754 |
Shoulder Bolt .437" Dia. Price: $3.76 |
| 15 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 16 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 17 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 18 |
738-0732 |
DRIVE SHAFT ASSEMBLY Not Available Price: |
| 19 |
736-0160 |
Fl-Wash. .531" I.D. x .93" O.D. Price: $3.90 |
| 20 |
710-0759 |
SCREW 5/16-18 x .625 GR5 Not Available Price: |
| 22 |
16531 |
PIVOT BRACKET Not Available Price: |
| 23 |
17185 |
ARM-ENGAGEMENT Not Available Price: |
| 24 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg. Price: $3.63 |
| 25 |
17021 |
COVER-FRON Not Available Price: |
| 26 |
710-0352 |
Hex B-Tap Scr. 1/4 x .38" Price: $4.05 |
| 27 |
738-0739 |
NUT-SHLD Not Available Price: |
| 28 |
14759 |
BRACKET-PIVOT LH Not Available Price: |
| 29 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 30 |
17017 |
BRACKET-AXLE BEARI Not Available Price: |
| 31 |
746-0606 |
HOLD DOWN-BARREL (RH) Not Available Price: |
