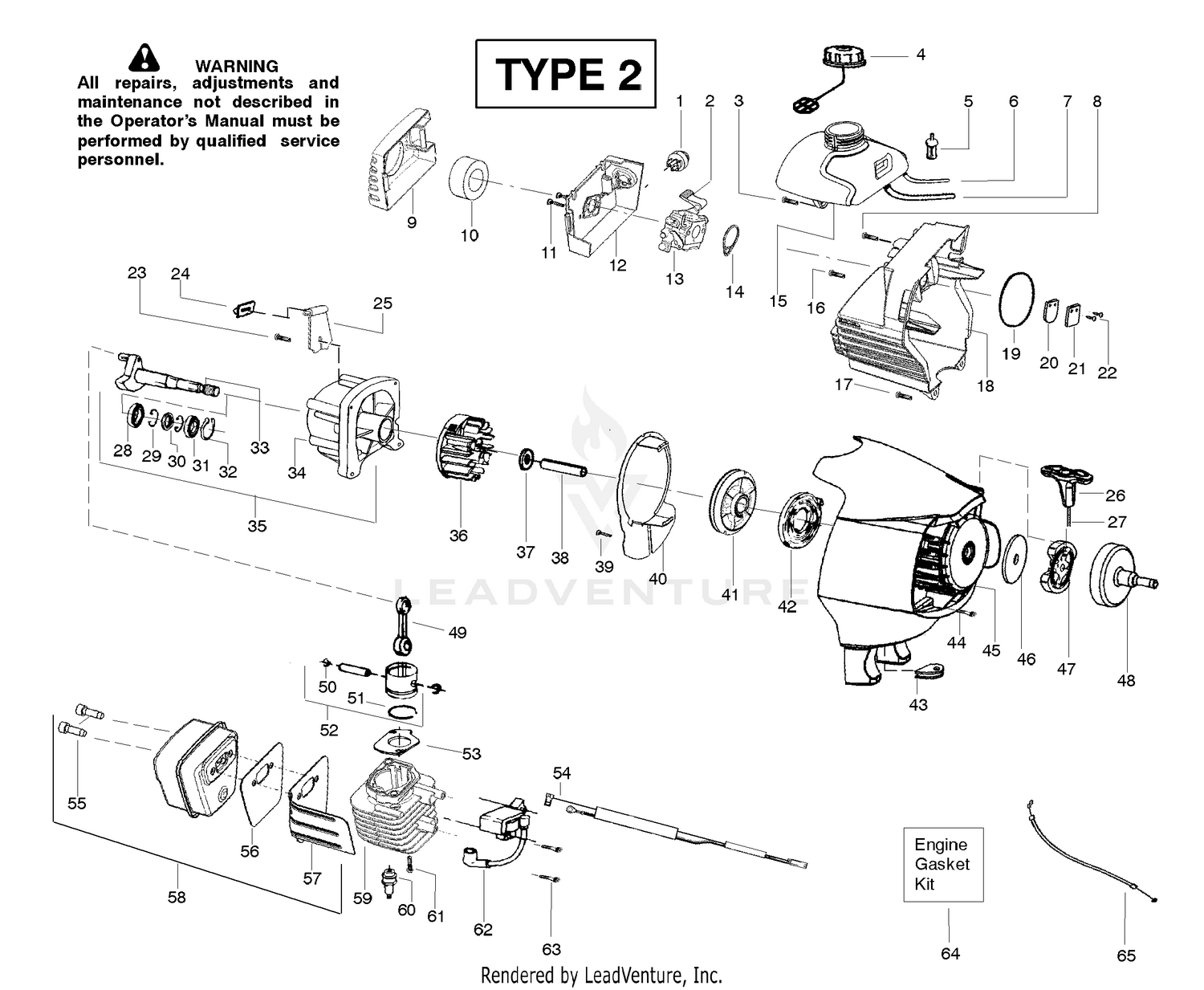

| Ref | Part Number | Description |
|---|
| 1 |
1940385 |
Frame Price: Call Us |
| 1 |
530047721 |
Bulb-Purge Price: $3.99 |
| 2 |
1946434 |
Brushes Price: Call Us |
| 2 |
530071717 |
Kit-Choke Lever Price: $7.99 |
| 3 |
1926618 |
Holder (Insulated) Price: Call Us |
| 3 |
530015843 |
Screw-tank Price: $1.99 |
| 4 |
1926622 |
Springs Price: Call Us |
| 4 |
530057973 |
Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 5 |
1940477 |
Holder (Ground) Price: Call Us |
| 5 |
530095646 |
Assy-Fuel pickup Price: $2.99 |
| 6 |
1938058 |
Brush Holder Pin Price: Call Us |
| 6 |
530069247 |
Kit-Fuel Line This part replaces 530071404. Price: $3.99 |
| 7 |
1960864 |
Lead (Ground) Price: Call Us |
| 7 |
530069216 |
Kit-Fuel/Purge line Price: $3.99 |
| 8 |
120361 |
Brush Holder Nut Price: Call Us |
| 8 |
530015775 |
Screw Price: $1.99 |
| 9 |
453435 |
Lockwasher Price: Call Us |
| 9 |
545000501 |
Cover-Air box Price: $3.99 |
| 10 |
1928015 |
Support Package Price: Call Us |
| 10 |
545082301 |
Filter-Air Price: $2.99 |
| 11 |
453468 |
Screw Price: Call Us |
| 11 |
530015849 |
Screw-Carb. Price: $1.99 |
| 12 |
1955946 |
Grommet Price: Call Us |
| 12 |
545000601 |
Box-Air Price: $4.99 |
| 13 |
132255 |
Screw Price: Call Us |
| 14 |
9421423 |
Lockwasher Price: Call Us |
| 15 |
1114356 |
Switch Price: Call Us |
| 15 |
545075305 |
Assy-Fuel Tank This part replaces 545075304. Price: $11.99 |
| 16 |
1958679 |
Spring Plunger Price: Call Us |
| 16 |
530015771 |
Screw-Crankcase Price: $1.99 |
| 17 |
1941113 |
Plunger Price: Call Us |
| 17 |
530015952 |
Screw-Shroud Price: $1.99 |
| 18 |
1951567 |
Lever Shift Price: Call Us |
| 18 |
545000701 |
Assy-Rear Shroud Price: $17.99 |
| 19 |
455106 |
Lever Pin Price: Call Us |
| 20 |
1932197 |
Lever Stud Price: Call Us |
| 20 |
530027593 |
Valve-Reed Price: $1.99 |
| 21 |
1965225 |
Drive Housing (Incl. Bushing) Price: Call Us |
| 21 |
530029781 |
Stop-Reed Price: $1.99 |
| 22 |
1926640 |
Nut Price: Call Us |
| 22 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 23 |
530015875 |
Screw-Retainer Price: $1.99 |
| 23 |
9421424 |
Lockwasher Price: Call Us |
| 24 |
1838568 |
Thrust Collar Price: Call Us |
| 24 |
530055492 |
Isolator-Tank Price: $1.99 |
| 25 |
1928022 |
Retainer Ring Price: Call Us |
| 25 |
530054941 |
Ret.-Tank Price: $1.99 |
| 26 |
1928021 |
Collar Stop Price: Call Us |
| 26 |
530054834 |
Handle-Starter Price: $1.99 |
| 27 |
545050409 |
Kit-Rope Price: $4.99 |
| 27 |
809593 |
Pin Dowl Price: Call Us |
| 28 |
1941157 |
Drive Assembly Price: Call Us |
| 28 |
545081601 |
Bearing-Inner Price: $7.99 |
| 29 |
1913960 |
Screw Price: Call Us |
| 29 |
530015787 |
Retainer Price: $1.99 |
| 30 |
1950417 |
Armature Price: Call Us |
| 30 |
530019158 |
Seal Price: $2.99 |
| 31 |
1914842 |
Washer-Brake Price: Call Us |
| 31 |
530032102 |
Bearing-Outer Price: $8.99 |
| 32 |
1955951 |
Coil Assembly Price: Call Us |
| 32 |
530015789 |
Ret.-Crankshaft Price: $2.99 |
| 33 |
274738 |
Screw Price: Call Us |
| 33 |
530028807 |
Assy-Crankshaft Price: $19.99 |
| 34 |
1887021 |
Pole Shoe Price: Call Us |
| 35 |
1960908 |
Bolt Price: Call Us |
| 36 |
274875 |
Screw Price: Call Us |
| 36 |
530055524 |
Assy-Flywheel Price: $22.99 |
| 37 |
530016030 |
Washer Price: $1.99 |
| 38 |
530055620 |
Spacer Price: $4.99 |
| 39 |
530015775 |
Screw-Baffle Price: $1.99 |
| 40 |
545115201 |
Plate-Baffle Price: $2.99 |
| 41 |
545050408 |
Kit-Pulley Price: $14.99 |
| 42 |
545008014 |
KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 43 |
530019182 |
Grommet Price: $1.99 |
| 44 |
530016386 |
Screw-F/hsg. Price: $5.99 |
| 45 |
530059254 |
Assy-Fan Housing Price: $17.99 |
| 46 |
530094189 |
Washer-Clutch Price: $2.99 |
| 47 |
530055122 |
Assy-Clutch Price: $8.99 |
| 48 |
530150247 |
Assy-Drum/Adapter Price: $17.99 |
| 49 |
530010960 |
Assy-Conn. Rod Price: $14.99 |
| 50 |
530015162 |
Ret.-Piston pin Price: $1.99 |
| 51 |
530012594 |
Ring-Piston Price: $3.99 |
| 54 |
530058846 |
Assy-Leadwire Price: $4.99 |
| 55 |
530016387 |
Bolt-Muffler 1/4"-20 Price: $1.99 |
| 57 |
545033201 |
Shield Price: $3.99 |
| 59 |
530012586 |
Cylinder Price: $17.99 |
| 61 |
530001624 |
Bolt-Cyl. 1/4"-20 Price: $1.99 |
| 62 |
545081826 |
Kit - Ignition Module This part replaces 530039234. Price: $32.99 |
| 63 |
530016357 |
Screw-Module Price: $1.99 |
