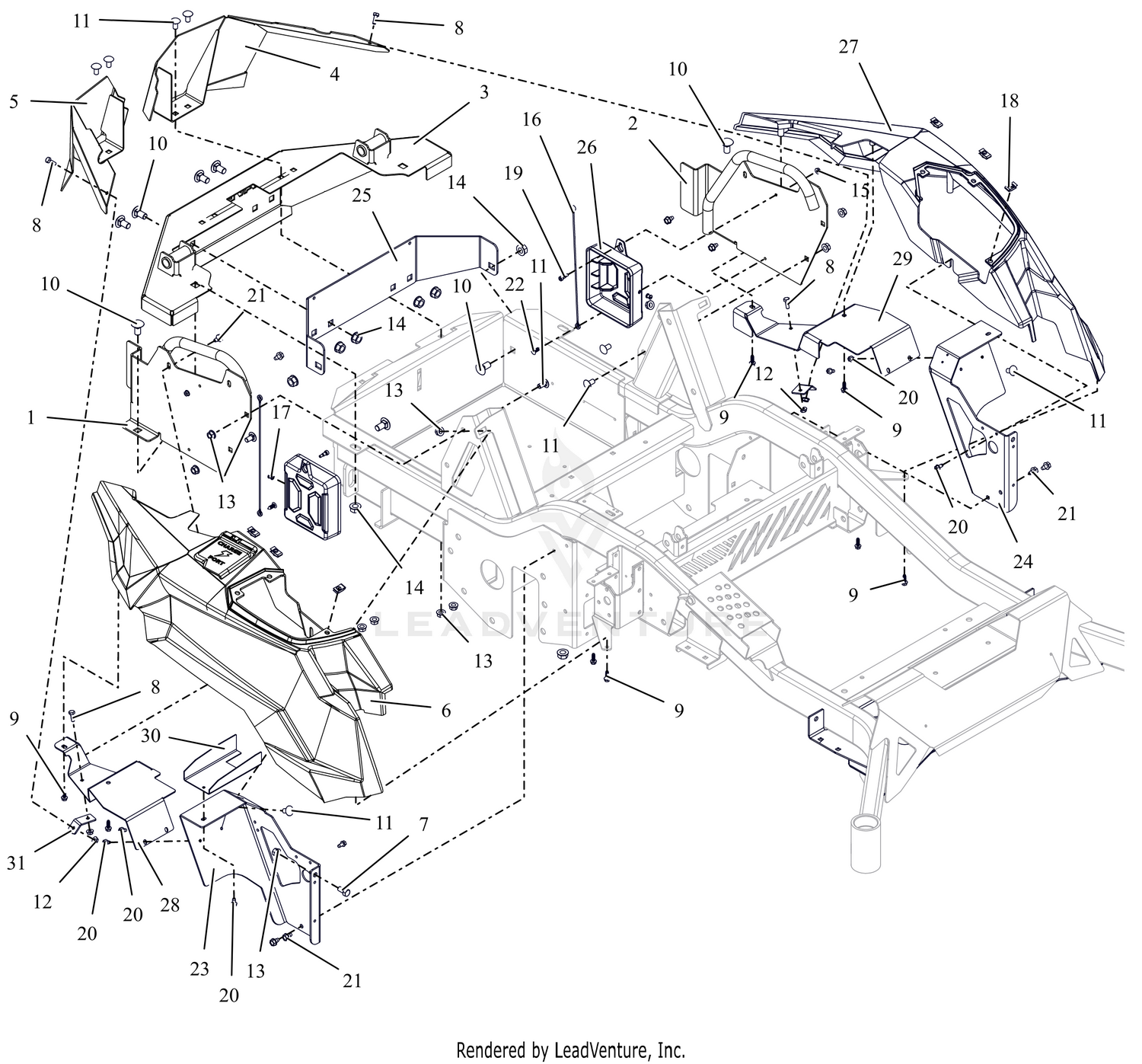

| Ref | Part Number | Description |
|---|
| 1 |
09179253 |
WLDMT, REAR FENDER MOUNT-RH (RED) Price: $81.95 |
| 2 |
09179353 |
WLDMT, REAR FENDER MOUNT-LH (RED) Price: $81.95 |
| 3 |
09180653 |
WLDMT, BUMPER PT EV (RED) Price: $122.45 |
| 4 |
09191751 |
WLDMT, REAR WRAP-LH (BLACK) Price: $50.95 |
| 5 |
09191851 |
WLDMT, REAR WRAP-RH (BLACK) Price: $50.95 |
| 6 |
09358800 |
ASM, FENDER RH PRO-TURN EV Price: $65.95 |
| 7 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC Price: $1.45 |
| 8 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC Price: $0.95 |
| 9 |
06100231 |
SCR, PLASTITE-HWH 0.25 X 0.75 ZC120 Price: $1.45 |
| 10 |
06200420 |
BLT, RHSN .50-13X1.00 G5 ZCC Price: $3.45 |
| 11 |
06200432 |
BTL,RHSSN .375-16 X 0.75 G5 FPB Price: $3.95 |
| 12 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 13 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 14 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 15 |
06500932 |
NUT, FLG-TOP LK #10-24 GRF ZCC Price: $3.45 |
| 16 |
06900317 |
CABLE, 12.0 LANYARD, NYLON Price: $3.45 |
| 17 |
07001918 |
POST, & SCREW, PUSH LOCK .25 X .25 Price: $3.45 |
| 18 |
07009000 |
NUT-RTNR .25-20X.56 Price: $0.95 |
| 19 |
07070101 |
BLT-SHLDR .25X.375 Price: $5.45 |
| 20 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 21 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC Price: $1.45 |
| 22 |
07500125 |
RIVET, .25 NYLON PANEL Price: $0.95 |
| 23 |
09179453 |
MOUNT, FRONT FENDER-RH Price: $45.95 |
| 24 |
09179553 |
MOUNT, FRONT FENDER-LH Price: $45.95 |
| 25 |
09180751 |
SUPPORT, BUMPER (BLACK) Price: $71.45 |
| 26 |
09185400 |
COVER, BATTERY BUSBAR TERMINAL Price: $10.95 |
| 27 |
09193700 |
FENDER, LH PRO-TURN EV Price: $87.95 |
| 28 |
09198051 |
SHIELD, FENDER MOUNT -RH (BLACK) Price: $30.95 |
| 29 |
09198151 |
SHIELD, FENDER MOUNT-LH (BLACK) Price: $30.95 |
| 30 |
09386651 |
SHIELD, DEBRIS -CHARGE PORT (BLACK) Price: $12.45 |
