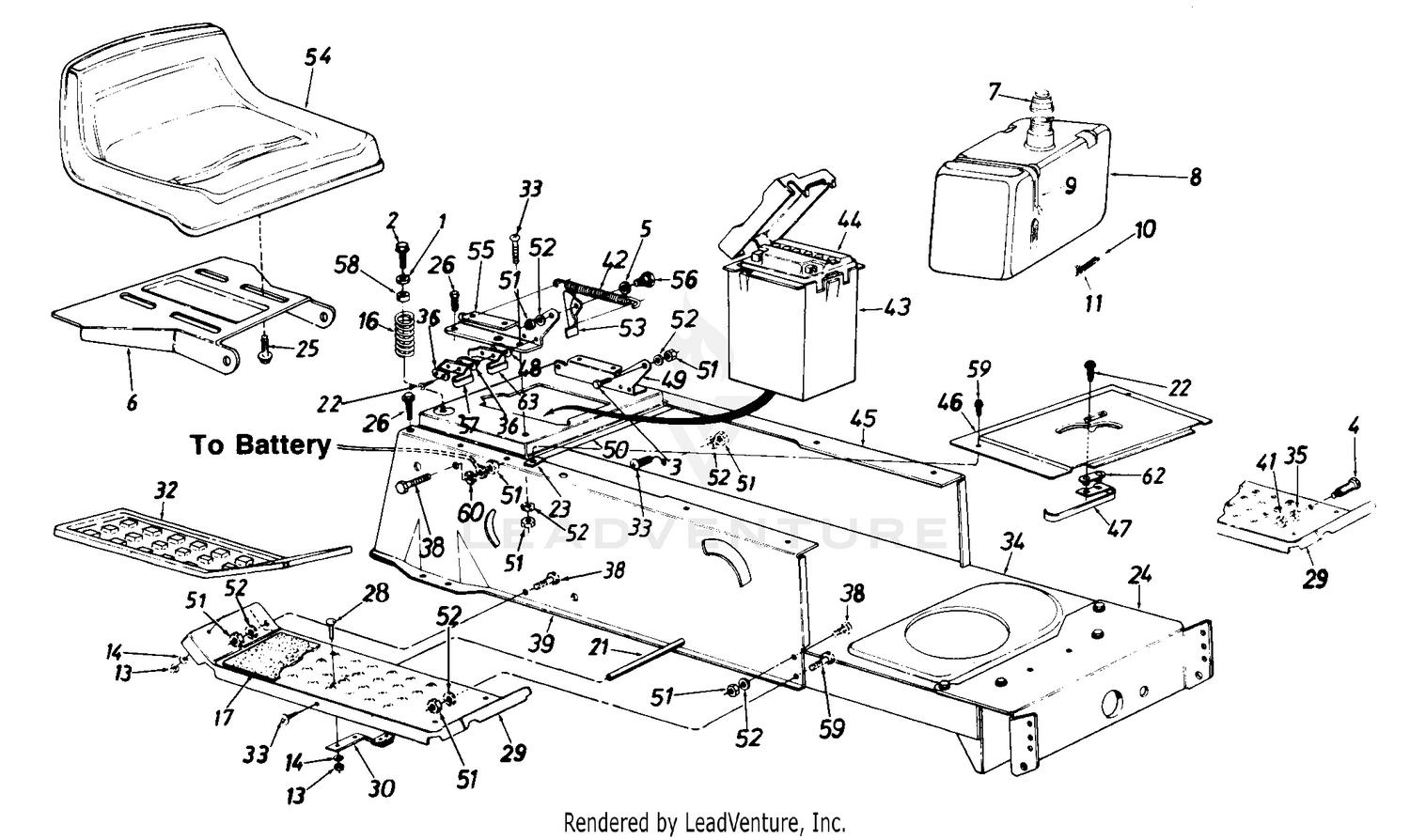

| Ref | Part Number | Description |
|---|
| 1 |
736-0159 |
Fl-Wash. .344" I.D. x .875" Price: $3.71 |
| 2 |
710-0817 |
Hex Wash. Hd. Tap Scr. 5/16-18 x 1.25" Lg. Price: $5.77 |
| 3 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 4 |
738-0145 |
Shld. Bolt .50" Dia. x .84" Price: $6.01 |
| 5 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 6 |
783-0039A |
SEAT PIVOT BRACKET Not Available This part replaces 15607D. Price: |
| 7 |
751-0603B |
TANK CAP This part replaces 751-3071. Price: $20.42 |
| 8 |
751-0555D |
FUEL TANK 1.36 GAL This part replaces 751-0553. Price: $78.46 |
| 9 |
726-0230 |
Cable Tie This part replaces 726-0209. Price: $23.95 |
| 10 |
751-22813-24 |
FUEL HOSE 1/4-24" This part replaces 751-0535-15. Price: $27.48 |
| 11 |
726-0205 |
Hose Clamp Price: $3.71 |
| 13 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 14 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 16 |
732-0588 |
COMPRESSION SPRING Not Available Price: |
| 21 |
738-0526 |
ROD-RUNNING BOARD Not Available Price: |
| 22 |
710-0227 |
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. Price: $3.90 |
| 23 |
726-0139 |
Speed Nut #10Z Price: $5.94 |
| 24 |
783-0041C |
PIVOT BAR BRACKET Not Available This part replaces 17621. Price: |
| 25 |
710-0623 |
Hex Tap Scr. 3/8-16 x .75" Price: $3.93 |
| 26 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 28 |
710-0134 |
Carriage Bolt 1/4-20 x .62" Price: $3.71 |
| 33 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 34 |
17620 |
LOWER FRAME Not Available Price: |
| 35 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 36 |
726-0279 |
Insulator Plate Price: $3.22 |
| 38 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 39 |
783-0042D |
UPPER FRAME (RH) Not Available This part replaces 17622. Price: |
| 41 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 42 |
932-0581B |
Extension Spring This part replaces 732-0581. Price: $12.55 |
| 43 |
731-0871B |
BATTERY BOX Not Available This part replaces 731-0871A. Price: |
| 44 |
753-0607 |
BATTERY Not Available This part replaces 725-0514A. Price: |
| 45 |
783-0043B |
UPPER FRAME (LH) Not Available This part replaces 17623. Price: |
| 47 |
725-0759 |
SAFETY SWITCH KIT Not Available Price: |
| 48 |
726-0278 |
Insulator Boss Plate Price: $5.95 |
| 49 |
17701-0637 |
BRACKET-SEAT SUP-L Not Available This part replaces 17701. Price: |
| 50 |
17225A |
PLATE HITCH Not Available Price: |
| 51 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 52 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 53 |
17239C |
BRACKET-SEAT LIFT Not Available This part replaces 17239A. Price: |
| 54 |
957-0378 |
LOW BACK SEAT BLACK W/SWITCH Not Available This part replaces 757-0345. Price: |
| 55 |
17702-0637 |
BRACKET-SEAT SUP-R Not Available This part replaces 17702. Price: |
| 56 |
738-0296 |
Shld. Bolt .437" Dia. x .268" Price: $3.93 |
| 57 |
925-1303 |
Outer Seat Spring Switch This part replaces 725-1303. Price: $5.58 |
| 58 |
722-0160 |
RUBBER BUSHING .318IDX.930OD Not Available Price: |
| 59 |
710-0971 |
SCREW 5/16-18 x 1 Not Available Price: |
| 60 |
736-0607 |
External L-Wash. 5116" I.D. Price: $3.66 |
| 62 |
926-0320 |
Insulatop Nut Plate This part replaces 726-0222. Price: $6.01 |
