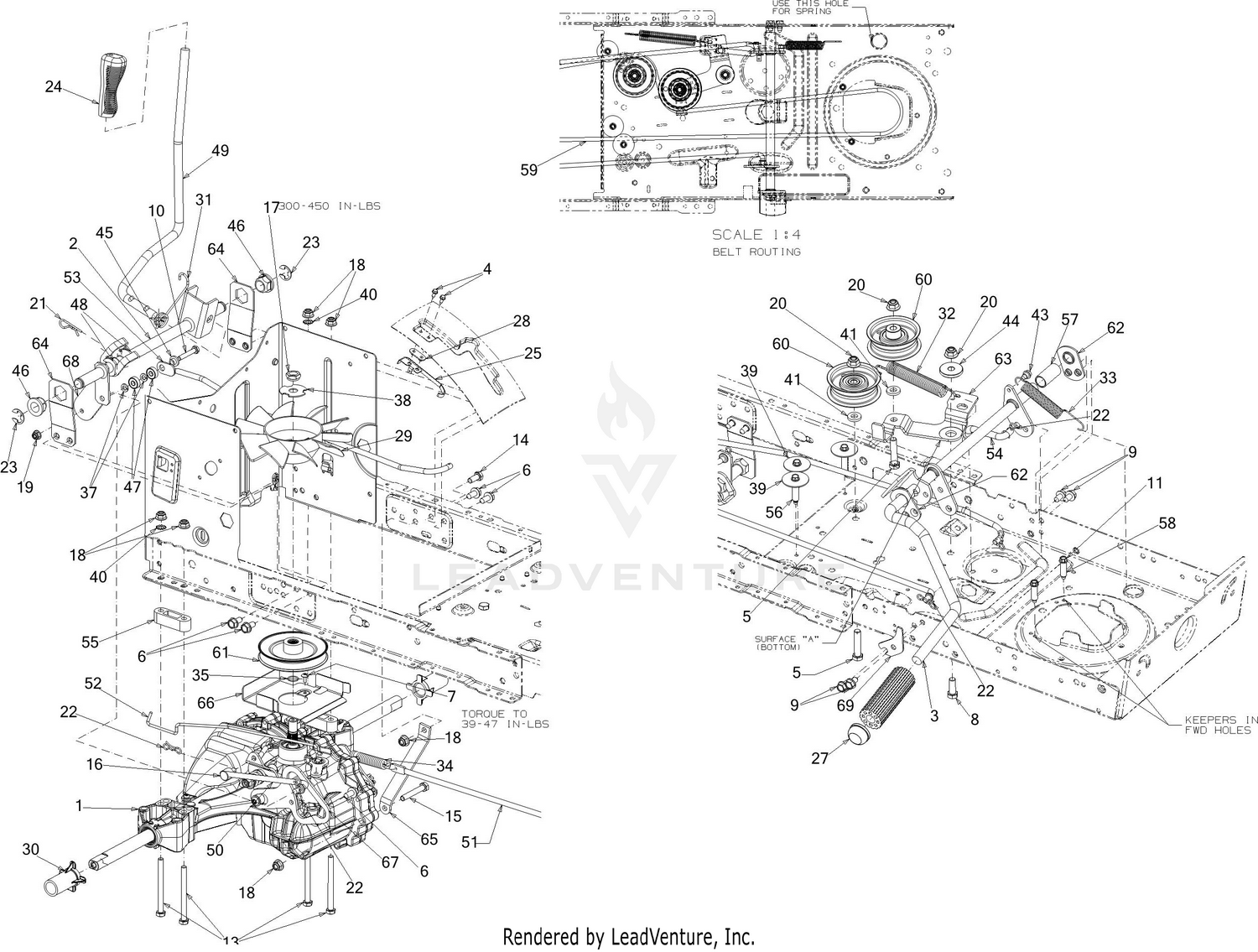

| Ref | Part Number | Description |
|---|
| 1 |
918-04892C |
HYDRO TRANSMISSION ASSEMBLY Price: $973.94 |
| 2 |
647-04200A |
CONTROL HANDLE ASSEMBLY Price: $21.40 |
| 3 |
647-04261A-0637 |
PEDAL ASSEMBLY Price: $32.92 |
| 4 |
710-0227 |
HEX SCREW WASHER HD #8-18 x 0.500 Price: $3.90 |
| 5 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-04997 |
SCREW-#10-24 x .400 SELF TAP Price: $2.84 |
| 8 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 9 |
710-0604A |
SCREW 5/16-18 x .625 Price: $3.96 |
| 10 |
710-0606 |
SCREW 1/4-20 x 1.50 GR.5 Price: $4.67 |
| 11 |
710-0809 |
SCREW 1/4-20 x 1.25 Price: $6.37 |
| 13 |
710-1266 |
SCREW 5/16-18X3.5 GR5 Price: $8.66 |
| 14 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 15 |
710-3103 |
SCREW 5/16-18 x 2.0 GR5 Price: $4.02 |
| 16 |
711-04448 |
FERRULE 5/16-24 x .312 Price: $9.07 |
| 17 |
712-0346 |
Jam Nut, 1/2-20 This part replaces 912-0346. Price: $3.95 |
| 18 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 19 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 20 |
712-04065 |
NUT Price: $3.68 |
| 21 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 22 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 23 |
716-0106A |
E-RING Price: $4.42 |
| 24 |
720-0311 |
HANDLE GRIP Price: $13.26 |
| 25 |
725-04249 |
SPRING SWITCH Price: $9.09 |
| 28 |
926-0320 |
INSULATOR PLATE Price: $6.01 |
| 29 |
731-06098 |
HYDRO FAN Price: $17.02 |
| 30 |
731-08237 |
AXLE SLEEVE .765 ID x 2.11 LG Price: $3.49 |
| 31 |
732-04225 |
TORSION SPRING Price: $10.75 |
| 32 |
732-04229 |
EXTENSION SPRING .75 DIA x 6.02LG Price: $19.09 |
| 33 |
732-04587 |
EXTENSION SPRING .63 x 4.95 Price: $6.51 |
| 34 |
732-0716D |
EXTENSION SPRING Price: $11.49 |
| 35 |
732-0729 |
WIRE RING Price: $4.20 |
| 37 |
936-0329 |
LOCK WASHER Price: $3.90 |
| 38 |
736-04263 |
LOCK WASHER Price: $5.94 |
| 39 |
736-0430 |
FLAT WASHER .350X1.59X.062 Price: $3.90 |
| 40 |
736-0607 |
WASHER Price: $3.66 |
| 41 |
736-3010 |
FLAT WASHER Price: $4.02 |
| 43 |
738-04278 |
SHOULDER SCREW 1/4-20X.50 19"PSH Price: $5.99 |
| 44 |
738-04430 |
SHOULDER SPACER 1.375 x .380 X.154 Price: $3.63 |
| 45 |
738-04483 |
SHOULDER SPACER Price: $3.53 |
| 46 |
941-0225 |
FLANGE BEARING Price: $6.55 |
| 47 |
741-04280 |
BALL BEARING .25 x .6875 x .25 Price: $13.98 |
| 48 |
741-3065B |
SPLIT HEX FLANGE BEARING .628 Price: $7.45 |
| 49 |
747-04296A |
CONTROL HANDLE Price: $36.19 |
| 50 |
747-04407A |
HYDRO CONTROL ROD Price: $15.64 |
| 51 |
747-05242A |
BRAKE ROD Price: $15.61 |
| 52 |
747-05245 |
HYDRO BYPASS ROD Price: $8.69 |
| 53 |
747-05598A-0637 |
HYDRO CONTROL ROD Price: $14.87 |
| 54 |
747-05603 |
HYDRO DECLUTCHING ROD Price: $10.24 |
| 55 |
948-0334 |
TRANSAXLE SPACER Price: $9.87 |
| 56 |
750-04456 |
SPACER:.260 x .372 x 1.420 Price: $6.20 |
| 57 |
750-05593 |
SPACER Price: $3.13 |
| 58 |
750-0566A |
SPACER Price: $9.17 |
| 59 |
954-04252 |
V-BELT 4L x 84.17" Price: $42.39 |
| 60 |
756-04224 |
FLAT IDLER PULLEY 2.75 OD Price: $24.80 |
| 61 |
756-04308 |
INPUT PULLEY Price: $27.39 |
| 63 |
783-04570B-0637 |
IDLER ARM Price: $17.04 |
| 64 |
783-04585A |
HYDRO HANDLE BRACKET Price: $4.95 |
| 65 |
783-06551-0637 |
TORQUE BRACKET Price: $11.59 |
| 66 |
783-06558-0637 |
BELT SUPPORT BRACKET Price: $6.01 |
| 67 |
783-06750A-0637 |
CAM BRACKET Price: $7.44 |
| 68 |
783-06756-0637 |
PIVOT BRACKET Price: $8.70 |
