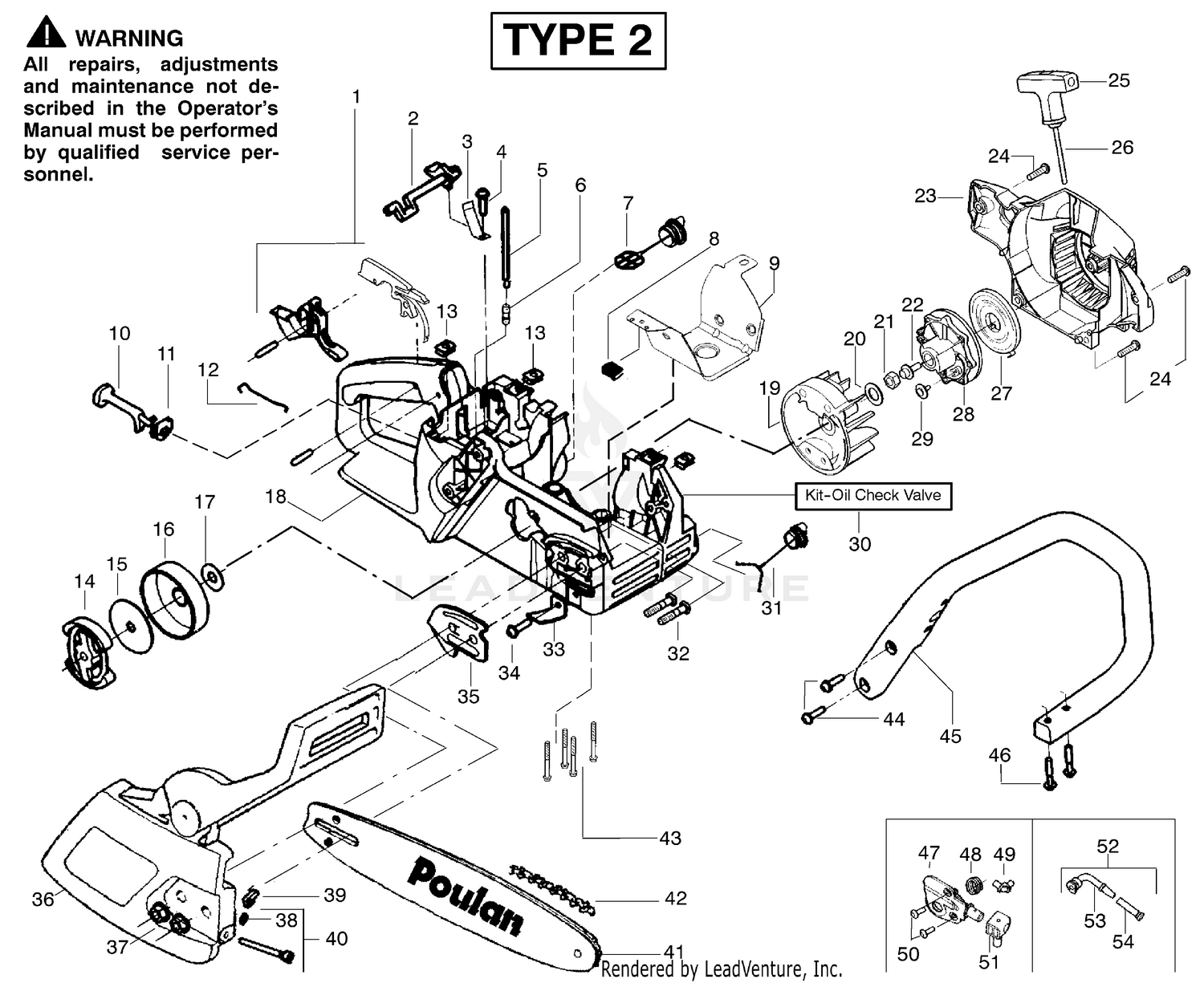

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 2 |
2410-30 |
CAP-PLASTIC Price: $0.83 |
| 2 |
530038227 |
Lever-Switch Price: $1.99 |
| 3 |
237-68 |
O-RING Price: $3.22 |
| 3 |
530016149 |
Spring-Switch Price: $1.99 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
530015775 |
Screw Price: $1.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
530023877 |
Fitting - Fuel line Price: $1.99 |
| 7 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
530055322 |
Clip - "U" Price: $1.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
530055183 |
Shield - Heat Price: $5.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
530047989 |
Lever-Choke Price: $1.99 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
530049005 |
Grommet-Choke lever Price: $1.99 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
530037809 |
Wire-Throttle Price: $1.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
530015922 |
Nut-Speed Price: $1.99 |
| 14 |
530014949 |
Assy.-Clutch Price: $7.99 |
| 15 |
105-8095-01 |
BEDBAR-FAIRWAY Price: $303.06 |
| 15 |
530015611 |
Washer-Clutch Price: $1.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
530047061 |
Assy-Drum W/brg. Price: $11.99 |
| 17 |
137-6094 |
BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 17 |
530015907 |
Washer - Thrust Price: $1.99 |
| 18 |
530058909 |
Assy-Chassis Price: $49.99 |
| 19 |
530047534 |
FLYWHEEL ASSY This part replaces 530039187. Price: $22.99 |
| 20 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 21 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
530015920 |
Screw Price: $1.99 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
530049334 |
Housing-Fan Price: $8.99 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 24 |
530015892 |
Screw Price: $1.99 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 25 |
530056402 |
Handle-Starter Price: $2.99 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 26 |
530069232 |
Kit-Rope Price: $3.99 |
| 27 |
108-9090-01 |
WEIGHT-END Price: $100.71 |
| 27 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 28 |
107-2954 |
NUT-ADJUSTER, BEARING Price: $17.63 |
| 28 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 29 |
530016080 |
Screw Price: $1.99 |
| 29 |
93-2489 |
BEARING Price: $24.37 |
| 30 |
107-4028 |
SEAL-GREASE Price: $21.51 |
| 30 |
530071666 |
Kit-Oil Check Valve Price: $7.99 |
| 31 |
530057236 |
OIL TANK CAP This part replaces 530010846. Price: $5.99 |
| 32 |
137-8416 |
REEL+,5IN FWY(22)8 BLD This part replaces 119-4270. Price: $701.38 |
| 32 |
530016133 |
Bolt - Bar Price: $1.99 |
| 33 |
530029850 |
Chain Catcher Price: $1.99 |
| 34 |
530015814 |
Screw Price: $1.99 |
| 35 |
530038238 |
Plate-Bar Mounting Price: $1.99 |
| 36 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 36 |
545139906 |
Assy.-Chain Brake Price: $29.99 |
| 37 |
530015917 |
Nut-Bar Mounting Price: $0.99 |
| 38 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 39 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 41 |
952044368 |
BAR 14" .050 3/8 041 52DL Price: $14.99 |
| 42 |
581562101 |
ACCY CHN 14" 52DL 3/8 .050 This part replaces 952051209. Price: $17.99 |
| 43 |
530016132 |
Screw Price: $1.99 |
| 44 |
530015814 |
Screw Price: $1.99 |
| 45 |
530059173 |
Handle-Front This part replaces 530056798. Price: $17.99 |
| 46 |
530015940 |
Screw Price: $1.99 |
| 48 |
530037820 |
Gear-Worm Spring Price: $1.99 |
| 49 |
530049477 |
Elbow-Oil Pickup Price: $1.99 |
| 50 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 51 |
530019206 |
Block-Seal Price: $1.99 |
| 53 |
530038373 |
Pickup-Oiler Price: $1.99 |
| 54 |
530056533 |
Filter-Oil Price: $2.99 |
