| Ref | Part Number | Description |
|---|
| 1 |
3212-5 |
SCREW-HH Price: $2.46 |
| 2 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 3 |
44-8160 |
DISCONTINUED Price: Call Us |
| 4 |
93-6706-03 |
PULLEY This part replaces 93-6706. Price: $137.29 |
| 5 |
68-6030 |
BOLT Price: $11.34 |
| 6 |
93-6725 |
KEEPER-WIRE Price: $10.15 |
| 7 |
33004-00 |
NUT-HF Price: $0.34 |
| 8 |
3290-412 |
RIVET-BLIND Price: $3.19 |
| 9 |
83-8080 |
KEY Price: $7.28 |
| 10 |
33114-016 |
SCREW-HH Price: $0.27 |
| 11 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
2412-96 |
CLAMP-R Price: $3.46 |
| 13 |
57-6390 |
NUT-JAM Price: $0.89 |
| 14 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 16 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 17 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 19 |
93-6719 |
MUFFLER ASM Price: $513.51 |
| 23 |
93-6721 |
DISCONTINUED Price: Call Us |
| 24 |
93-6720 |
DISCONTINUED Price: Call Us |
| 25 |
93-6722 |
DISCONTINUED Price: Call Us |
| 26 |
82-3110 |
SENDER-TEMP Price: $36.76 |
| 27 |
93-6728 |
HOSE-RADIATOR, TOP Price: $43.77 |
| 28 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 29 |
3217-6 |
NUT-HEX Price: $1.19 |
| 30 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 31 |
93-6713-03 |
BRACKET-MOUNT, ENGINE ASM This part replaces 93-6713. Price: $45.57 |
| 32 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 33 |
93-6729 |
HOSE-RADIATOR, LOWER Price: $54.09 |
| 37 |
81-1690 |
CLAMP-CABLE Price: $2.24 |
| 39 |
32128-19 |
NUT-HF Price: $0.99 |
| 40 |
93-6892-03 |
BRACKET-CABLE, THROTTLE This part replaces 93-6892. Price: $23.11 |
| 41 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 42 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 43 |
92-3154 |
TAB-THROTTLE Price: $7.93 |
| 44 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 45 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 46 |
93-6712-03 |
BRACKET-ENGINE MOUNT, FRONT ASM This part replaces 93-6712. Price: $50.27 |
| 47 |
32148-14 |
NUT-CLINCH Price: $1.29 |
| 48 |
33115-025 |
SCREW-HH Price: $0.61 |
| 49 |
93-6707 |
DISCONTINUED Price: Call Us |
| 50 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 51 |
3255-17 |
WASHER-LOCK, EXT Price: $0.29 |
| 53 |
33114-020 |
SCREW-HH Price: $0.28 |
| 54 |
93-6727 |
CLUTCH Price: $622.49 |
| 55 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 56 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 57 |
3290-432 |
SCREW-HH Price: $0.81 |
| 58 |
94-3692 |
DISCONTINUED Price: Call Us |
| 59 |
93-6775 |
CABLE-BATTERY, POS Price: $111.66 |
| 60 |
94-5980 |
CABLE-BATTERY, NEG Price: $92.64 |
| 61 |
75-4703 |
HOSE Price: $16.06 |
| 63 |
33004-00 |
NUT-HF Price: $0.34 |
| 64 |
93-6946-03 |
BRACKET-ENGINE MOUNT, RH REAR ASM This part replaces 93-6946. Price: $33.87 |
| 65 |
85-4930 |
FILTER - OIL Price: $10.88 |

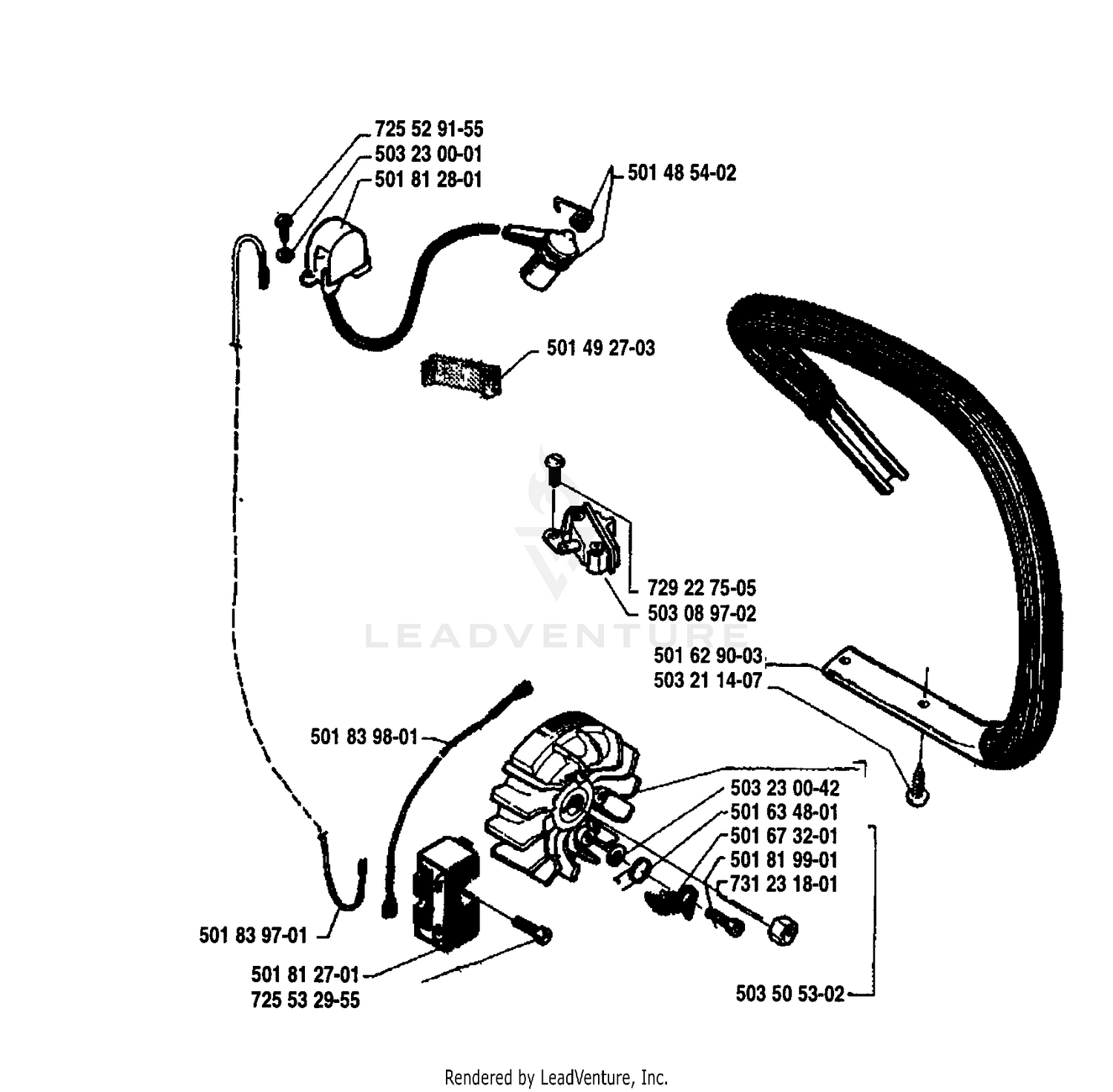

| 501485402 |
501485402 |
SPARK PLUG CONN. KIT Price: $6.99 |
| 501492703 |
501492703 |
COVER Price: $4.99 |
| 501629003 |
501629003 |
FRONT HANDLE Price: $64.99 |
| 501634801 |
501634801 |
SPRING Price: $3.99 |
| 501673201 |
501673201 |
PAWL Price: $6.99 |
| 501812701 |
501812701 |
ELECTRONIC BOX Price: $65.94 |
| 501812801 |
501812801 |
IGNITION COIL Price: $69.99 |
| 501819901 |
501819901 |
SCREW M5X14 Price: $2.99 |
| 501839801 |
501839801 |
SHORTING LEAD Price: $5.99 |
| 503089702 |
503717901 |
SWITCH ON/OFF This part replaces 503089702. Price: $12.99 |
| 503211407 |
503214974 |
Screws This part replaces 503211407. Price: $2.99 |
| 503230001 |
503230001 |
WASHER 4.2X9 Price: $3.99 |
| 503230042 |
503230042 |
WASHER Price: $3.99 |
| 503505302 |
503730601 |
FLYWHEEL This part replaces 503505302. Price: $138.67 |
| 725529155 |
725529155 |
SCREW MC6S 4X12 Price: $2.99 |
| 725532955 |
725532955 |
SCREW MC6S 5X16 Price: $6.99 |
| 729227505 |
503212806 |
SCREW This part replaces 729227505. Price: $3.99 |
| 731231801 |
731231801 |
NUT Price: $3.99 |
