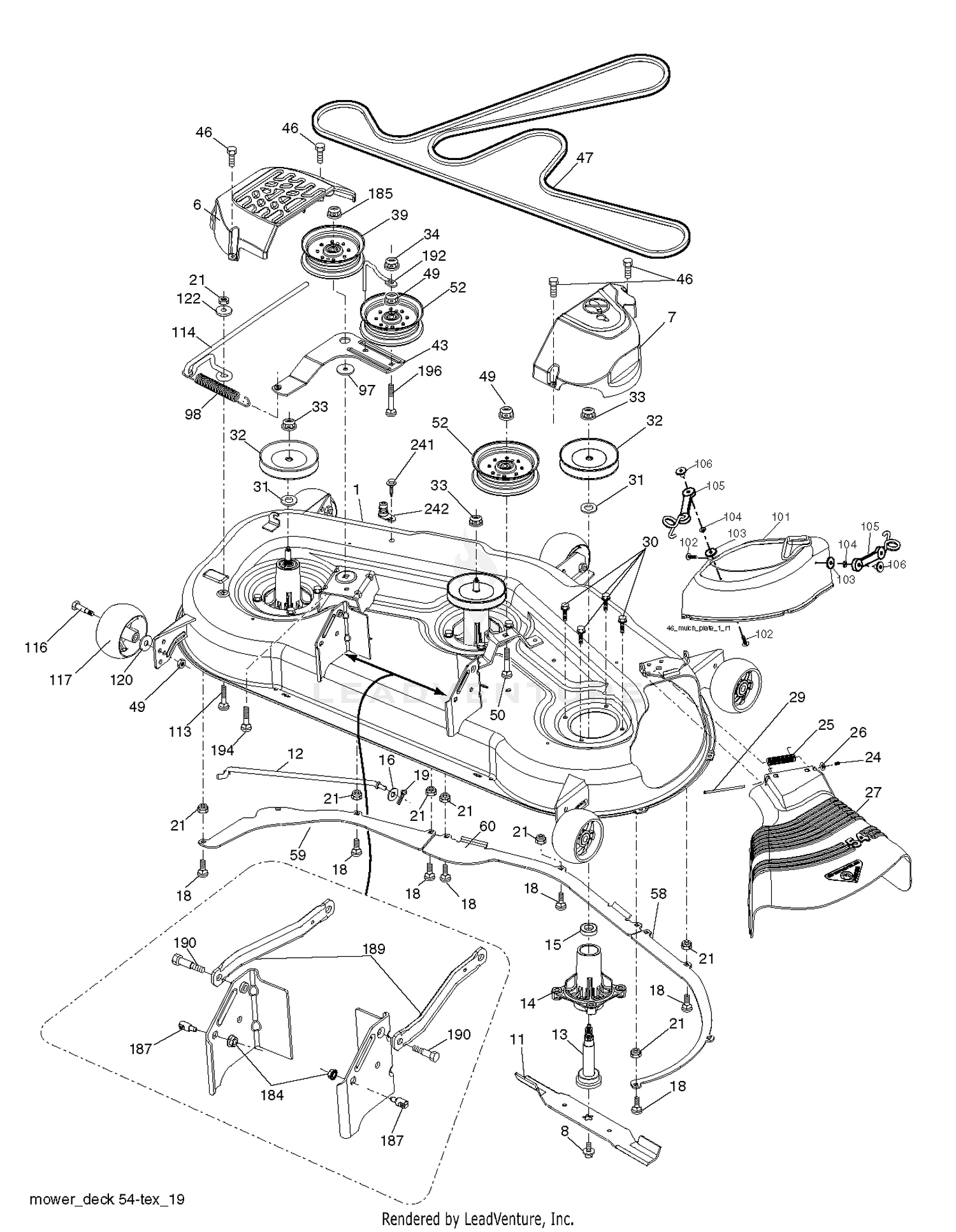

| Ref | Part Number | Description |
|---|
| 1 |
18-2970 |
CLIP-FUEL LINE Price: $8.67 |
| 1 |
532199298 |
DECK.SVC.54".5GWB.GREY This part replaces 532441547. Price: $449.99 |
| 2 |
3214441 |
Thread Form Screw Price: Call Us |
| 3 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 4 |
524360 |
Strap-Switch BaiI Price: Call Us |
| 5 |
323-6 |
SCREW-HH Price: $0.66 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
32105-8 |
SCREW-SHH Price: $1.99 |
| 8 |
218412 |
Key Price: Call Us |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 9 |
52-3890 |
DISCONTINUED Price: Call Us |
| 10 |
524100 |
Pump and Center Plate Assembly Price: Call Us |
| 11 |
28124 |
Reducer Bushing Price: Call Us |
| 12 |
353-880 |
DISCONTINUED Price: Call Us |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $22.99 |
| 13 |
2811-10 |
ELBOW-STREET, 90 DEG Price: $11.68 |
| 13 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 14 |
524290 |
Strap-Battery Box Price: Call Us |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
524320 |
Cover-Battery Box Price: Call Us |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
524310 |
Bottom-Battery Box Price: Call Us |
| 16 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 17 |
52-3900 |
DISCONTINUED Price: Call Us |
| 18 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
524410 |
Wire-Battery to Ground Price: Call Us |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 20 |
52-3810 |
DISCONTINUED Price: Call Us |
| 21 |
52-4330 |
BOX HOLD DOWN *R Price: $103.57 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 23 |
322-3 |
SCREW-HH Price: $0.79 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
322-6 |
SCREW-HH Price: $0.45 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
12-8140 |
KEY SWITCH Price: $39.86 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 28 |
3219-14 |
NUT-HEX Price: $0.25 |
| 29 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
52-3860 |
DISCONTINUED Price: Call Us |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
38-0430 |
SWITCH Price: $54.52 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
40-7420 |
DISCONTINUED Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
353-704 |
DISCONTINUED Price: Call Us |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 35 |
38-3260 |
DISCONTINUED Price: Call Us |
| 36 |
237-7 |
O-RING Price: $8.82 |
| 37 |
53-3850 |
DISCONTINUED Price: Call Us |
| 38 |
323-39 |
SCREW-HH This part replaces 323-21. Price: $1.60 |
| 39 |
52-4470 |
DISCONTINUED Price: Call Us |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH This part replaces 532197380. Price: $37.99 |
| 40 |
52-4350 |
SUPPORT-SW BAIL *R Price: $67.14 |
| 41 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 42 |
321-3 |
SCREW-HH Price: $0.28 |
| 43 |
3-8664 |
WASHER-THRUST Price: $5.69 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 44 |
52-4340 |
PIVOT SWITCH Price: $50.84 |
| 45 |
5-4460 |
WASHER-PIVOT This part replaces 5-1350. Price: $6.19 |
| 46 |
2412-85 |
DISCONTINUED Price: Call Us |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
218-331 |
BATTERY BOOT Price: $9.89 |
| 47 |
587686701 |
BELT.DECK.DRIVE.BELT.54 This part replaces 532196103. Price: $54.99 |
| 48 |
44-8520 |
DISCONTINUED Price: Call Us |
| 49 |
2412-84 |
DISCONTINUED Price: Call Us |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
52-4370 |
DISCONTINUED Price: Call Us |
| 50 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 101 |
532187298 |
MULCH COVER 54" Price: $30.99 |
| 102 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 103 |
819061216 |
WASHER Price: $3.99 |
| 104 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 105 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 106 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 120 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 184 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $9.99 |
| 196 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
