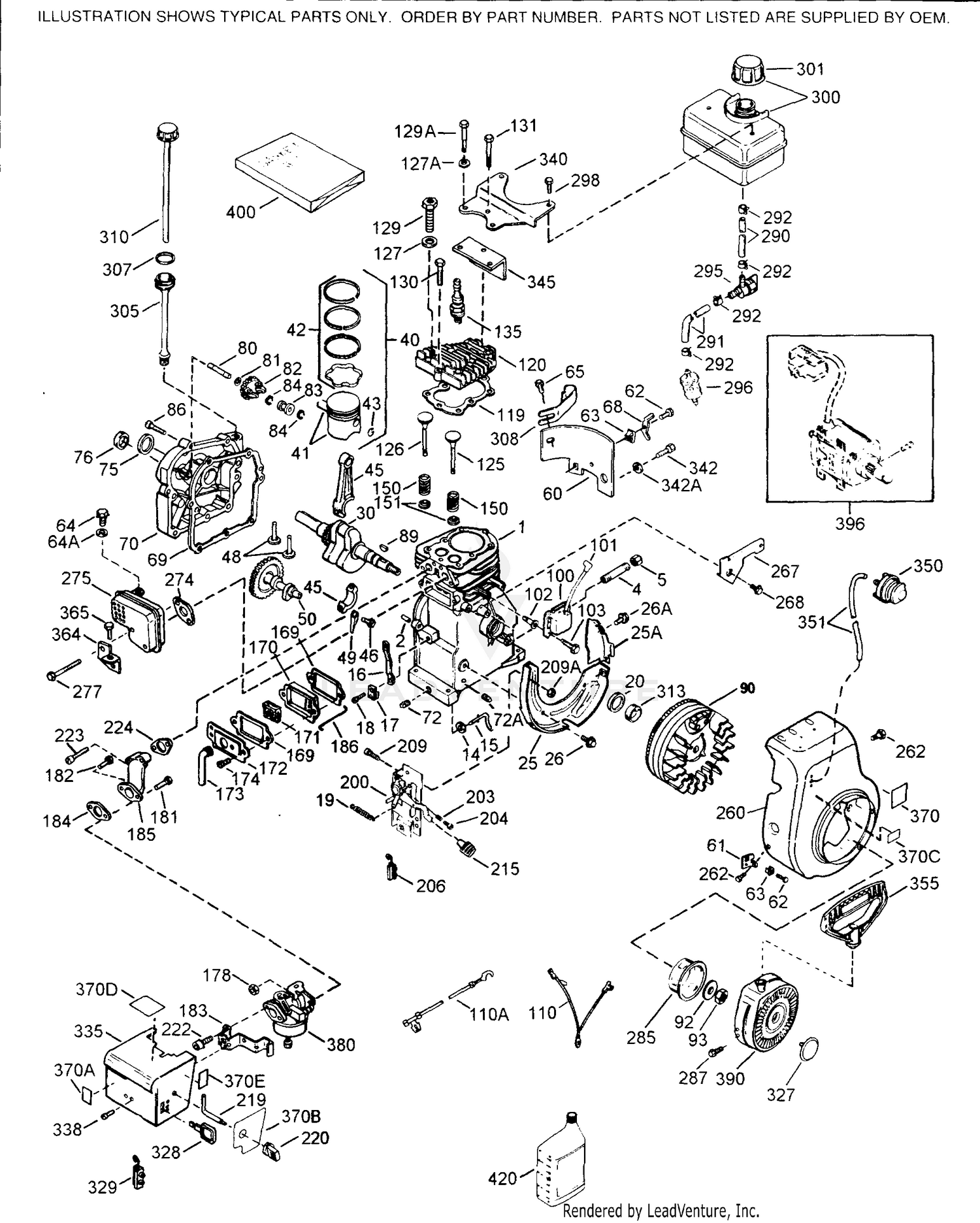

| Ref | Part Number | Description |
|---|
| 1 |
36561 |
CYLINDER Price: Call Us |
| 2 |
26727 |
DOWEL PIN Price: $1.26 |
| 4 |
30968 |
PIPE NIPPLE Price: $5.21 |
| 5 |
30969 |
PIPE CAP Price: $3.89 |
| 14 |
28277 |
WASHER Price: $1.26 |
| 15 |
31334 |
GOVERNOR ROD Price: $3.89 |
| 16 |
37735 |
LINK & LEVER This part replaces 31510. Price: $9.95 |
| 17 |
31335 |
CLAMP Price: $1.26 |
| 18 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 19 |
31426 |
EXT SPRING Price: $2.80 |
| 20 |
32600 |
OIL SEAL Price: $4.80 |
| 25 |
36552 |
BAFFLE Price: $6.54 |
| 25A |
35883 |
EXTENSION Price: $1.26 |
| 28 |
30322 |
NUT Price: $1.22 |
| 30 |
34846 |
CRANKSHAFT Price: $87.62 |
| 40 |
35544A |
PISTON ASSY STD Price: $43.10 |
| 40 |
35545A |
PISTON ASSY 010 Price: Call Us |
| 40 |
35546 |
PISTON ASSY 020 Price: $52.46 |
| 41 |
35541 |
PISTON & PIN ST Price: $32.31 |
| 41 |
35542 |
PISTON & PIN 10 Price: $31.11 |
| 41 |
35543 |
PISTON & PIN 20 Price: $31.11 |
| 42 |
35544A |
PISTON ASSY STD This part replaces 35547A. Price: $43.10 |
| 42 |
35548A |
RING SET 010 Price: Call Us |
| 42 |
35549 |
RING SET 020 Price: Call Us |
| 43 |
20381 |
RET RING Price: $1.26 |
| 45 |
32875A |
CONN ROD This part replaces 32875. Price: $33.84 |
| 46 |
32610A |
SCREW Price: $1.26 |
| 48 |
27241 |
VALVE LIFTER Price: $3.89 |
| 49 |
32654 |
OIL DIPPER Price: $6.40 |
| 50 |
33696 |
CAMSHAFT Price: $47.89 |
| 60 |
29745 |
EXTENSION Price: $2.62 |
| 61 |
34126 |
BRACKET Price: $1.26 |
| 62 |
650760 |
SCREW Price: $1.17 |
| 63 |
28545 |
GROMMET Price: $1.26 |
| 64A |
8345 |
WASHER Price: $1.26 |
| 65 |
30200 |
SCREW Price: $3.25 |
| 69 |
27677A |
GASKET Price: $5.31 |
| 70 |
34678A |
CYL COVER Price: $73.50 |
| 72 |
27642 |
PIPE PLUG Price: $1.26 |
| 75 |
27897 |
OIL SEAL Price: $5.95 |
| 76 |
30318 |
OIL SEAL Price: $5.21 |
| 80 |
30574A |
GOV SHAFT Price: $5.00 |
| 81 |
651080 |
WASHER This part replaces 30590A. Price: $1.24 |
| 82 |
30591 |
GEAR Price: $9.93 |
| 83 |
30588A |
GOV SPOOL Price: $1.26 |
| 86 |
650488 |
SCREW Price: $1.25 |
| 89 |
610961 |
KEY Price: $1.09 |
| 90 |
611199 |
FLYWHEEL Price: $111.17 |
| 92 |
650815 |
WASHER Price: $1.25 |
| 93 |
650863 |
NUT Price: $1.25 |
| 100 |
34443D |
LAMINATION This part replaces 34443A. Price: $35.95 |
| 101 |
610118 |
PLUG COVER Price: $4.45 |
| 102 |
651024 |
STUD This part replaces 650872. Price: $2.60 |
| 103 |
651007 |
SCREW Price: $1.17 |
| 110 |
35557 |
GROUND WIRE Price: $2.62 |
| 110A |
35285 |
GROUND WIRE Price: $2.62 |
| 119 |
33015A |
GASKET This part replaces 36440. Price: $7.89 |
| 120 |
37675 |
CYL HEAD This part replaces 36441. Price: $29.58 |
| 125 |
36471 |
EXH VALVE STD Price: $9.82 |
| 125 |
36472 |
EXH VALVE OS Price: Call Us |
| 126 |
32644A |
INT VALVE ST Price: $6.91 |
| 126 |
32645A |
INT VALVE OS Price: $43.82 |
| 127 |
650691 |
WASHER Price: $1.25 |
| 129 |
650818 |
SCREW Price: $2.60 |
| 130 |
6021A |
SCREW Price: $1.26 |
| 130B |
650737 |
SCREW Price: $1.25 |
| 131 |
650694A |
SCREW Price: $2.15 |
| 135 |
33636 |
SPARK PLUG Price: $5.05 |
| 150 |
31672 |
VALVE SPRING Price: $1.26 |
| 151 |
31673 |
VALVE CAP Price: $1.23 |
| 161 |
30063 |
SCREW Price: $1.26 |
| 169 |
27234A |
GASKET Price: $3.95 |
| 170 |
27666 |
BREATHER Price: $10.56 |
| 171 |
31410 |
ELEMENT Price: $1.19 |
| 172 |
34146 |
COVER Price: $2.62 |
| 173 |
35350 |
TUBE Price: $4.57 |
| 174 |
650128 |
SCREW Price: $3.60 |
| 178 |
29752 |
NUT Price: $1.26 |
| 181 |
6201 |
SCREW Price: $1.26 |
| 182 |
650870 |
SCREW Price: $1.20 |
| 183 |
34583A |
BRACKET This part replaces 34583. Price: $8.95 |
| 184 |
26756 |
Gasket Price: $2.95 |
| 185 |
32859 |
INTAKE PIPE Price: Call Us |
| 186 |
32698 |
GOV LINK Price: $1.26 |
| 200 |
36677 |
CONTROL ASSY Price: $29.60 |
| 203 |
31342 |
COMP SPRING Price: $3.95 |
| 204 |
651029 |
SCREW This part replaces 650549. Price: $1.22 |
| 206 |
610973 |
TERMINAL Price: $2.60 |
| 209 |
650139 |
SCREW Price: $1.25 |
| 215 |
35440 |
KNOB Price: $2.62 |
| 219 |
34582 |
CHOKE ROD Price: $3.89 |
| 220 |
35438 |
KNOB Price: $2.62 |
| 222 |
651081 |
SCREW This part replaces 28820. Price: $2.89 |
| 223A |
650664 |
SCREW Price: $1.25 |
| 224 |
32649A |
GASKET Price: $2.20 |
| 260 |
35656A |
BLOWER HSG Price: $24.92 |
| 264A |
650802 |
SCREW Price: $1.25 |
| 267 |
34212 |
BRACKET Price: $1.26 |
| 274 |
35865 |
GASKET This part replaces 33670A. Price: $3.95 |
| 275 |
35771A |
MUFFLER This part replaces 35771. Price: $23.42 |
| 277 |
650327A |
SCREW This part replaces 650327. Price: $1.25 |
| 285 |
36467A |
STARTER CUP Price: $6.82 |
| 287 |
650926 |
SCREW Price: $0.88 |
| 290 |
30705 |
FUEL LINE Price: $11.47 |
| 292 |
26460 |
CLAMP Price: $1.19 |
| 298 |
650665 |
SCREW Price: $1.25 |
| 300 |
35584 |
FUEL TANK Price: $28.00 |
| 301 |
37845 |
FUEL CAP This part replaces 35355. Price: $6.33 |
| 305 |
35554 |
FILLER TUBE Price: $14.00 |
| 307 |
35499 |
O RING Price: $0.88 |
| 308 |
35539 |
CLIP Price: $1.22 |
| 310 |
35556 |
DIPSTICK Price: $5.21 |
| 313 |
34080 |
SPACER Price: $1.26 |
| 319 |
650735 |
SCREW Price: $1.17 |
| 327 |
35392 |
STARTER PLUG Price: $1.22 |
| 328 |
35062 |
KEY This part replaces 35593. Price: $2.62 |
| 335 |
35072B |
CARB COVER This part replaces 35072. Price: $26.71 |
| 338 |
650257 |
SCREW Price: $0.87 |
| 340 |
36247 |
TANK BRACKET Price: $8.21 |
| 342A |
650675 |
WASHER Price: $1.25 |
| 345 |
33344 |
BAFFLE Price: $3.79 |
| 350 |
570682A |
PRIMER This part replaces 570682. Price: $7.43 |
| 351 |
32180C |
PRIMER LINE Price: $2.62 |
| 355 |
590574 |
START HANDLE Price: $4.25 |
| 364 |
33333 |
BRACKET Price: $2.62 |
| 370 |
35282 |
DECAL Price: $1.00 |
| 370 |
36501 |
DECAL Price: $1.00 |
| 370D |
37119 |
DECAL This part replaces 34414. Price: $1.00 |
| 380 |
632113A |
CARBURETOR Price: $86.47 |
| 390 |
590787 |
STARTER This part replaces 590707. Price: $37.98 |
| 396 |
33290E |
STARTER KIT This part replaces 33290D. Price: $163.81 |
