| Ref | Part Number | Description |
|---|
| 5 |
42-8810 |
GROOVED PIN K8712630 Price: $7.68 |
| 6 |
42-8780 |
CONT LEVER MM 409142 Price: $75.05 |
| 7 |
42-8830 |
O-RING Price: $2.96 |
| 8 |
42-8770 |
GOV LEVER MM 407035 Price: $14.55 |
| 9 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 10 |
33014-00 |
NUT-HEX This part replaces 42-9580. Price: $0.25 |
| 11 |
42-8740 |
ROD SPRING MM 409182 Price: $10.84 |
| 12 |
42-8750 |
TIE ROD MM 409181 Price: $32.04 |
| 13 |
42-8720 |
SLIDING SHAFT Price: $139.59 |
| 14 |
42-9430 |
SCREW-HH Price: $0.30 |
| 15 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 16 |
67-4040 |
WEIGHT ASSEMBLY Price: $98.67 |
| 17 |
43-2730 |
SOLENOID Price: $496.64 |
| 18 |
43-2750 |
NUT MM 409671 Price: $18.31 |
| 19 |
43-2740 |
GASKET ME 660042 Price: $8.23 |
| 20 |
42-8730 |
GOV LEVER MM407028 Price: $106.81 |
| 21 |
42-9450 |
BOLT/WASHER Price: $3.64 |
| 22 |
42-8760 |
GOV SHAFT MM 407030 Price: $82.48 |
| 23 |
42-8820 |
DISCONTINUED Price: Call Us |
| 24 |
43-2800 |
CAPSCREW HC 1806030 Price: $0.31 |
| 25 |
43-2820 |
SEALING CAP Price: $11.21 |
| 26 |
43-5960 |
DISCONTINUED Price: Call Us |
| 27 |
43-3120 |
DISCONTINUED Price: Call Us |
| 28 |
67-2560 |
BOLT W/WASHER Price: $1.89 |
| 29 |
42-8790 |
ROD COVER Price: $63.59 |
| 30 |
42-8800 |
DISCONTINUED Price: Call Us |
| 31 |
44-8090 |
LEVER ASM Price: $75.42 |
| 32 |
42-8810 |
GROOVED PIN K8712630 Price: $7.68 |
| 33 |
43-3160 |
ADJ SCREW MM 409167 Price: $2.18 |
| 34 |
44-8100 |
SPRING Price: $9.53 |
| 35 |
43-2770 |
STOP LEVER Price: $38.46 |
| 36 |
42-9640 |
JAM NUT Price: $4.69 |

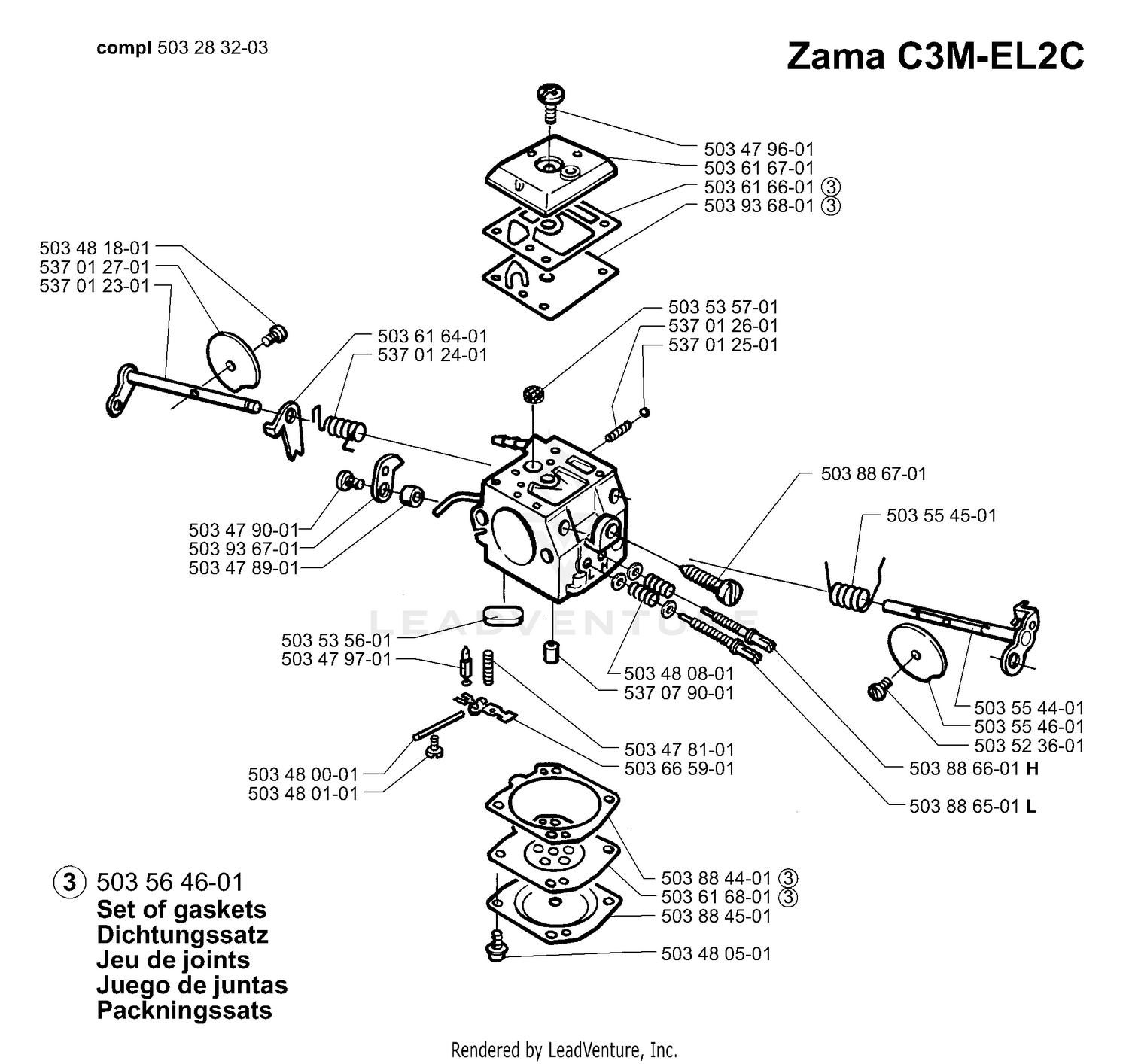

| 503283203 |
536033701 |
CARBRETOR HD-12C H372 This part replaces 503283203. Price: $99.99 |
| 503478101 |
503478101 |
SPRING Price: $2.99 |
| 503478901 |
503478901 |
SPACER Price: $3.99 |
| 503479001 |
503479001 |
SCREW Price: $2.99 |
| 503479601 |
503479601 |
SCREW Price: $2.99 |
| 503479701 |
503479701 |
INLET NEEDLE Price: $8.99 |
| 503480001 |
537020801 |
PIN This part replaces 503480001. Price: $2.99 |
| 503480101 |
503480101 |
SCREW Price: $2.99 |
| 503480501 |
503480501 |
SCREW Price: $2.99 |
| 503480801 |
503994301 |
SPRING This part replaces 503480801. Price: $2.99 |
| 503481801 |
503481801 |
SCREW Price: $2.99 |
| 503523601 |
503523601 |
SCREW Price: $2.99 |
| 503535601 |
503535601 |
PLUG Price: $3.99 |
| 503535701 |
503535701 |
STRAINER Price: $3.99 |
| 503554401 |
503554401 |
Throttle Shaft Price: $4.01 |
| 503554501 |
503554501 |
SPRING Price: $2.99 |
| 503554601 |
503554601 |
THROTTLE PLATE Price: $3.99 |
| 503564601 |
503564601 |
GASKET SET Price: $8.99 |
| 503616401 |
503616401 |
Pawl Price: $2.82 |
| 503616601 |
503616601 |
GASKET Price: $2.99 |
| 503616701 |
503616701 |
COVER Price: $5.99 |
| 503616801 |
503616801 |
DIAPHRAGM Price: $6.99 |
| 503665901 |
503665901 |
LEVER Price: $3.99 |
| 503884401 |
503884401 |
Gasket Price: $1.00 |
| 503884501 |
503884501 |
COVER Price: $7.99 |
| 503886501 |
503886501 |
NEEDLE/LOW SPEED Price: $12.99 |
| 503886601 |
503886601 |
Needle/High Speed Price: $2.35 |
| 503886701 |
503886701 |
SCREW Price: $4.99 |
| 503936701 |
503936701 |
Lever Price: $2.33 |
| 503936801 |
503936801 |
PUMP DIAPHRAGM Price: $8.99 |
| 537012301 |
537012301 |
CHOKE SHAFT AND LEVER Price: $8.99 |
| 537012401 |
537012401 |
SPRING Price: $2.99 |
| 537012501 |
537012501 |
BALL Price: $2.99 |
| 537012601 |
537012601 |
SPRING Price: $2.99 |
| 537012701 |
537012701 |
CHOKE VALVE Price: $1.41 |
