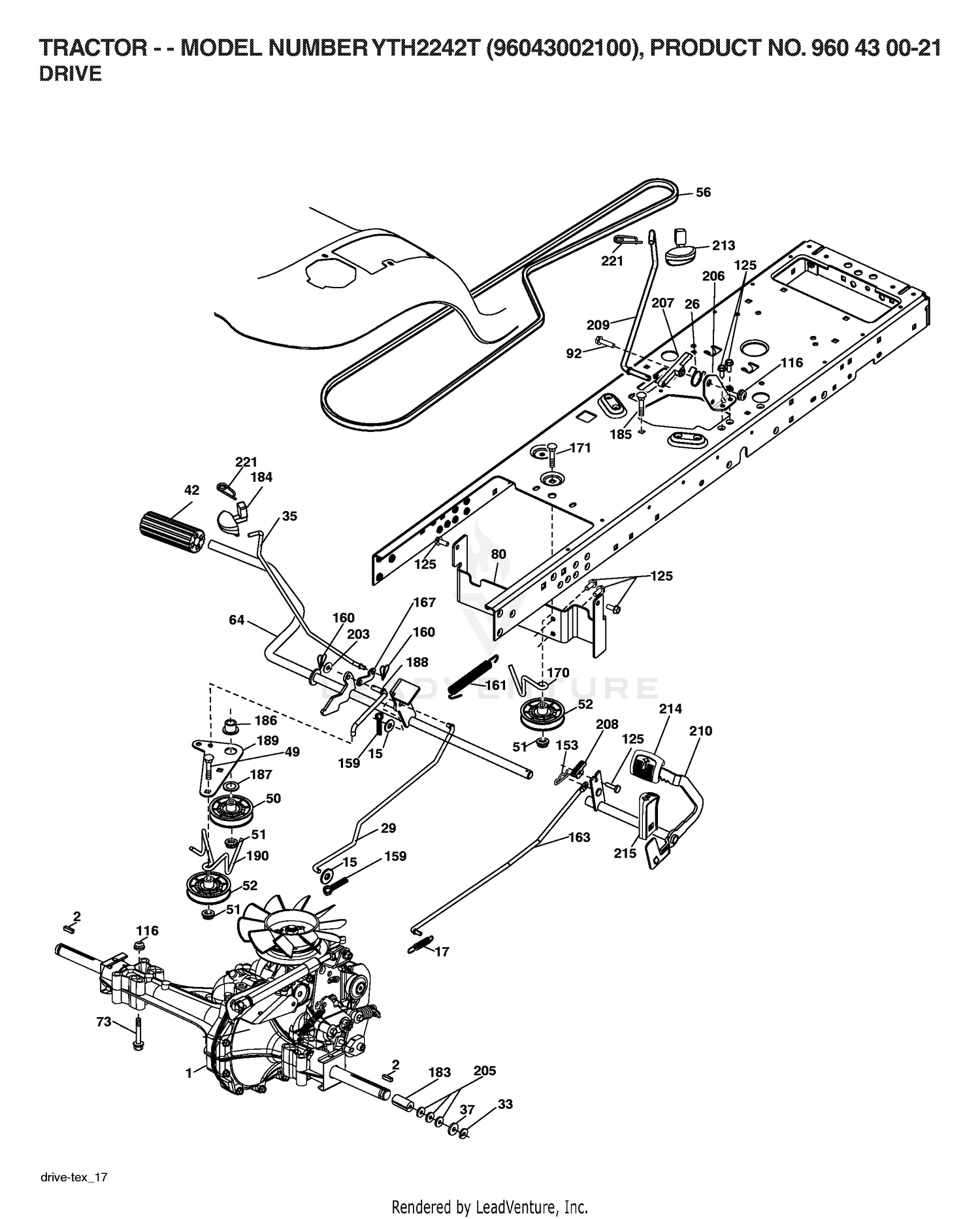

| Ref | Part Number | Description |
|---|
| 1 |
125-7044 |
OIL PUMP ASM Price: $432.63 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 14 |
125-7021 |
GASKET Price: $2.87 |
| 15 |
125-7232 |
BOLT Price: $3.28 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
125-6987 |
DIPSTICK Price: $68.96 |
| 17 |
125-6954 |
GUIDE-DIPSTICK Price: $9.80 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 18 |
125-7022 |
GASKET Price: $7.07 |
| 19 |
125-7023 |
PIPE ASM Price: $44.23 |
| 20 |
125-7217 |
BOLT Price: $4.58 |
| 21 |
125-7074 |
COOLER ASM Price: $811.84 |
| 22 |
125-7075 |
O-RING Price: $20.90 |
| 23 |
125-7041 |
NUT-COOLER, OIL Price: $51.50 |
| 24 |
125-6989 |
BRACKET ASM Price: $67.51 |
| 25 |
127-3009 |
BRACKET ASM This part replaces 125-6930. Price: $82.05 |
| 26 |
125-7042 |
STUD Price: $37.63 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
125-7024 |
GASKET Price: $3.16 |
| 29 |
125-6990 |
JOINT Price: $64.80 |
| 29 |
532197659 |
ROD.BRAKE.HG-0510 Price: $19.99 |
| 30 |
125-7078 |
PIPE ASM Price: $40.64 |
| 31 |
125-7162 |
CLIP Price: $6.55 |
| 33 |
125-7191 |
CLAMP-HOSE Price: $15.78 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
125-7079 |
PIPE ASM Price: $41.11 |
| 35 |
125-7162 |
CLIP Price: $6.55 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 37 |
125-6946 |
TUBE Price: $44.23 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 38 |
125-7191 |
CLAMP-HOSE Price: $15.78 |
| 39 |
125-7001 |
ELBOW Price: $40.49 |
| 40 |
125-7595 |
BOLT Price: $2.39 |
| 41 |
125-7171 |
PLUG-DRAIN Price: $23.08 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532140218 |
V-BELT. Price: $49.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 80 |
532400507 |
BRKT.STRP.TRQ.LT.HYD.C Price: $12.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT This part replaces 532195403. Price: $9.99 |
| 163 |
532199000 |
ROD.PEDAL.CONTROL.0510 Price: $27.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532196211. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
