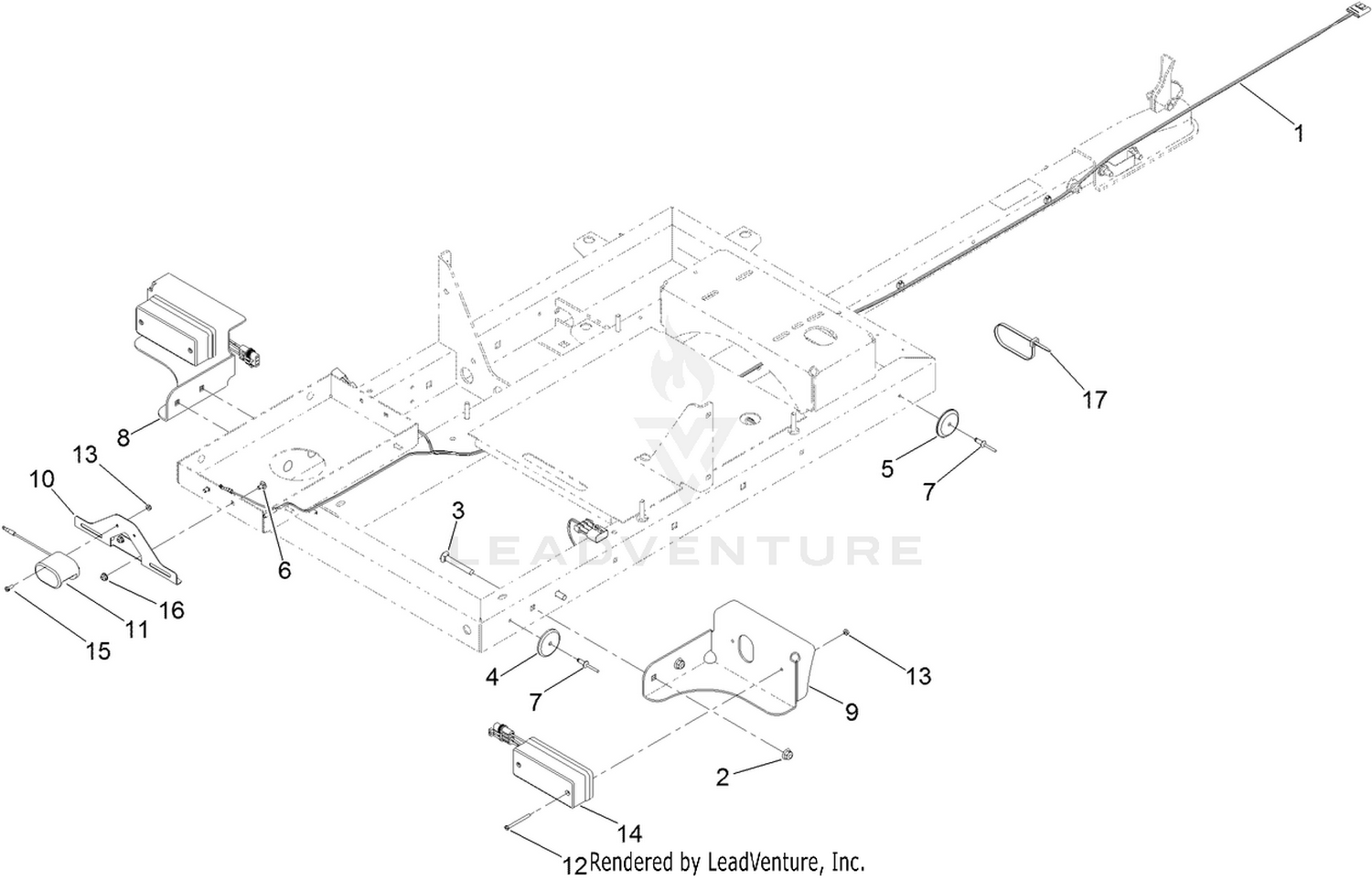

Tail Light Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-1792 | HARNESS-WIRE Price: $309.04 |
| 2 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 3 | 3231-9 | SCREW-CARR Price: $1.18 |
| 4 | 74-2390 | REFLECTOR-RED Price: $12.54 |
| 5 | 104-6962 | REFLECTOR-AMBER Price: $5.71 |
| 6 | 3229-10 | SCREW-CARR Price: $0.22 |
| 7 | 3290-412 | RIVET-BLIND Price: $3.19 |
| 8 | 119-3003-03 | BRACKET-LIGHT MOUNT (LH) Price: $69.85 |
| 9 | 119-3004-03 | BRACKET-LIGHT MOUNT (RH) Price: $69.07 |
| 10 | 119-6072-03 | BRACKET-PLATE, LICENSE Price: $31.23 |
| 11 | 119-3041 | LAMP-LICENSE Price: $72.84 |
| 12 | 32105-14 | SCREW-SHH Price: $3.19 |
| 13 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 14 | 119-3046 | TAIL-LIGHT Price: $95.09 |
| 15 | 32105-8 | SCREW-SHH Price: $1.99 |
| 16 | 104-7201 | NUT-HF Price: $0.69 |
