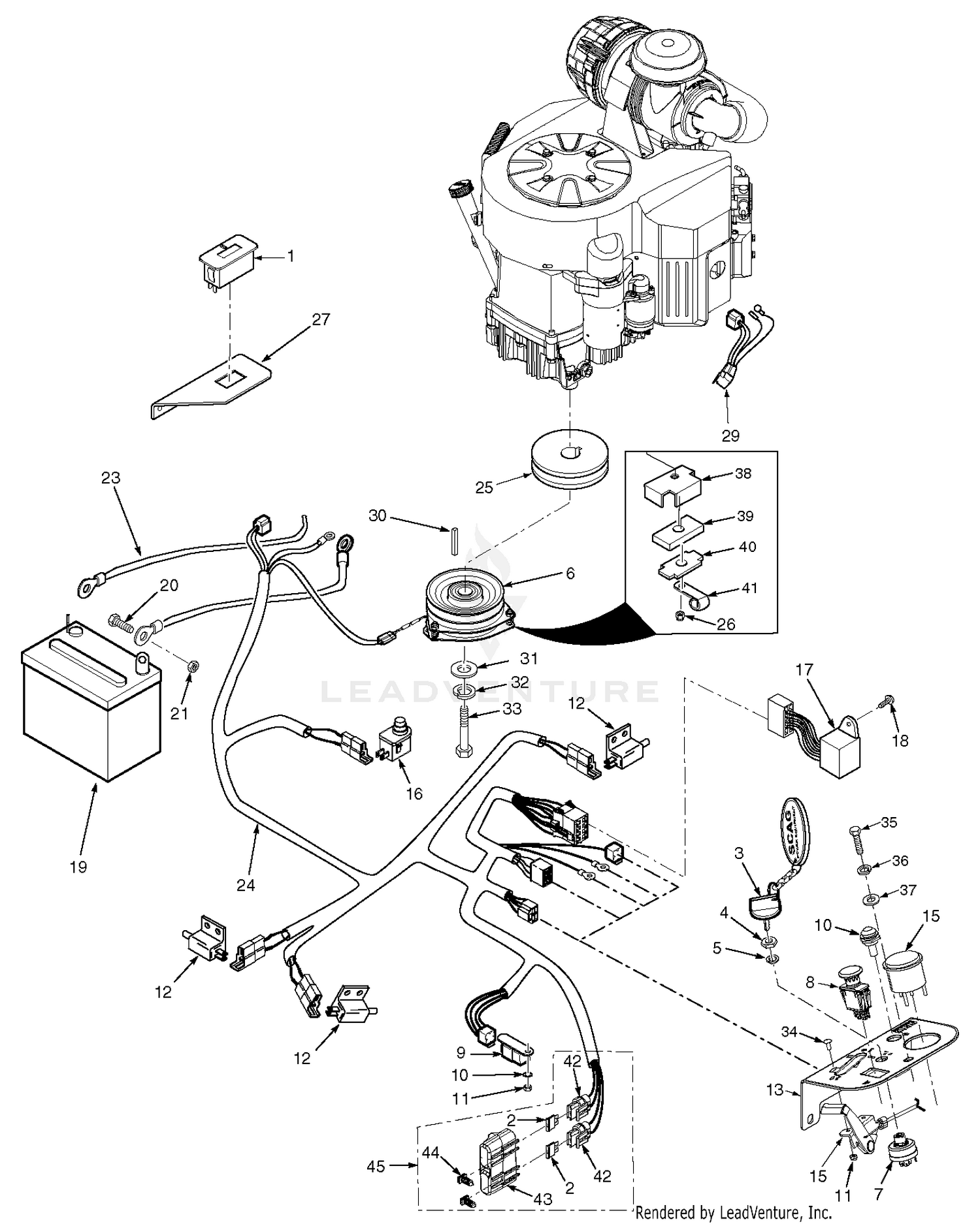

| Ref | Part Number | Description |
|---|
| 1 |
484565 |
Hourmeter Price: Call Us |
| 2 |
48298 |
Fuse, 20 amp Price: Call Us |
| 3 |
462069 |
Key Assembly w/Fob Price: Call Us |
| 3 |
483366 |
Key, Ignition Price: Call Us |
| 4 |
48017-04 |
Nut, Hex 5/8-32 Price: Call Us |
| 5 |
48017-03 |
Lockwasher, 5/8" Internal Price: Call Us |
| 6 |
461660 |
Electric PTO Clutch GT3.5 Price: Call Us |
| 7 |
48798 |
Switch, Ignition Price: Call Us |
| 8 |
463034 |
SEALED PTO SWITCH KIT This part replaces 483957. Price: Call Us |
| 9 |
483013 |
Relay Price: Call Us |
| 10 |
481182 |
Indicator Light Assembly Price: Call Us |
| 11 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 12 |
481637 |
Switch, N/O Price: Call Us |
| 13 |
462XXX |
Panel, Instrument w/Decal (Kohler EFI) Price: Call Us |
| 14 |
482032 |
Throttle Control Price: Call Us |
| 15 |
481184 |
Voltmeter Price: Call Us |
| 16 |
481638 |
Switch, Seat Price: Call Us |
| 17 |
483599 |
Module, Interlock Price: Call Us |
| 18 |
04010-01 |
Screw, #10-32 x .5" Phillips Head Price: Call Us |
| 19 |
483665 |
Battery, 350CCA (Not Available Through Scag) Price: Call Us |
| 20 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 21 |
04020-02 |
Nut, Hex 1/4-20 Price: Call Us |
| 22 |
48029-15 |
Cable, Battery Black (negative) Price: Call Us |
| 23 |
48029-12 |
Cable, Battery Red (positive) Price: Call Us |
| 24 |
484705 |
Wiring Harness, Main (Kohler EFI) Price: Call Us |
| 25 |
483081 |
Pulley, 5.45 OD x 1.125" Bore Price: Call Us |
| 26 |
04021-10 |
Nut, Elastic Stop 5/16-18 Key Price: Call Us |
| 27 |
424112 |
Mounting Bracket, Hour Meter Price: Call Us |
| 28 |
04010-11 |
Screw, #10-32 x 1.5" Phillips Head Price: Call Us |
| 29 |
484704 |
Adapter, Wiring Harness (Kohler EFI only) Price: Call Us |
| 30 |
04063-23 |
Key, 1/4 x 1/4 x 3-1/4” Price: Call Us |
| 31 |
04041-28 |
Flatwasher, 7/16-.469 x 1-3/4" x 1/4" Price: Call Us |
| 32 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 33 |
04001-101 |
Bolt, Hex Head 7/16-20 x 2-1/2" UNF Price: Call Us |
| 34 |
04003-43 |
Bolt, Carriage #10-24 x 3/4" Price: Call Us |
| 35 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 36 |
04030-03 |
Lockwasher, 5/16" Price: Call Us |
| 37 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 38 |
423909 |
Backing Plate Price: Call Us |
| 39 |
481716 |
Rubber Pad, Clutch Stop Price: Call Us |
| 40 |
422534 |
Plate, Backing Price: Call Us |
| 41 |
48030-09 |
Clamp Price: Call Us |
| 42 |
483629 |
Fuse Holder Price: Call Us |
| 43 |
483571 |
Cover, Sealed Double Price: Call Us |
| 44 |
482588 |
Clip, Wire Price: Call Us |
