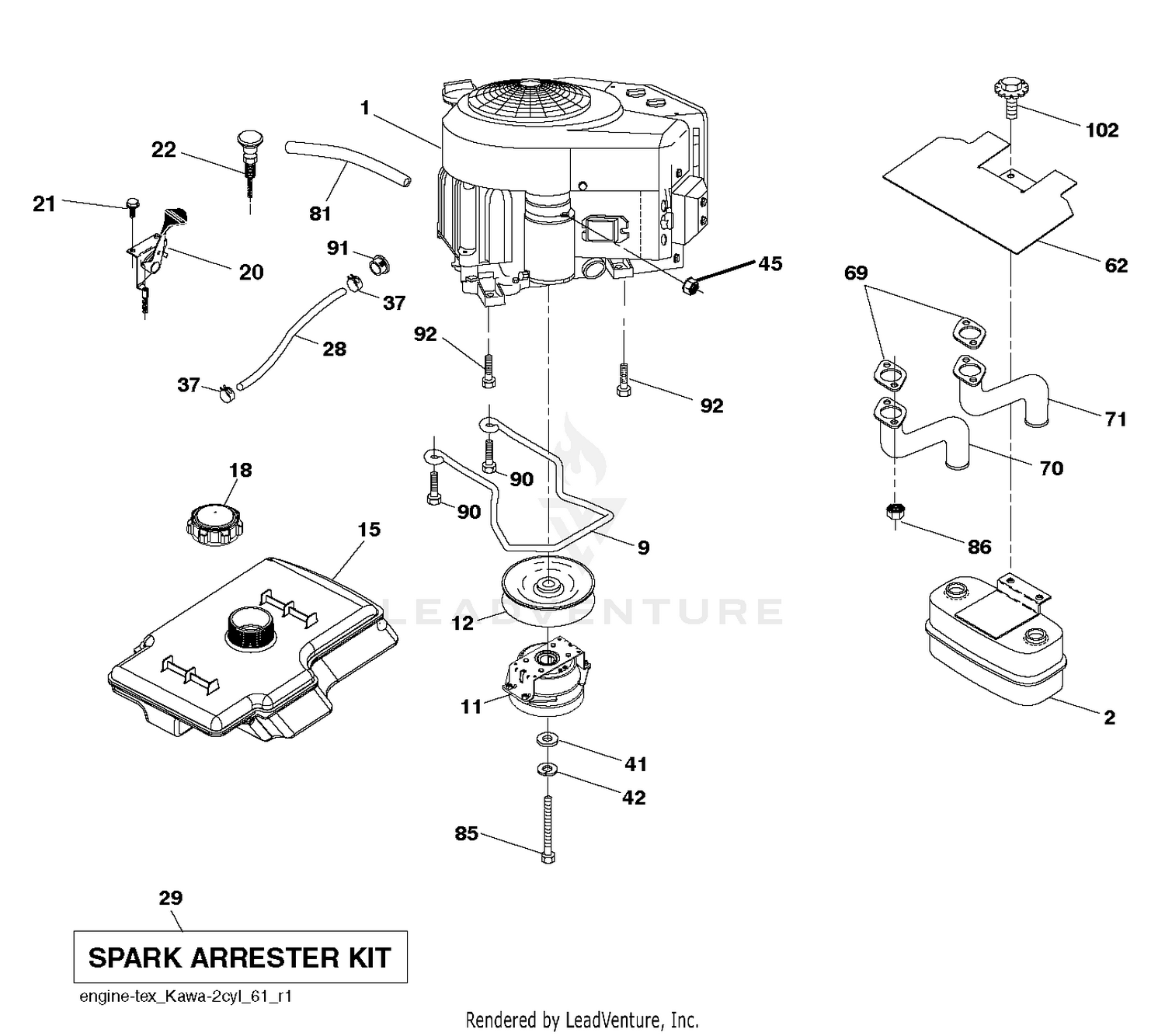

| Ref | Part Number | Description |
|---|
| 1 |
67-440 |
Bolt Price: Call Us |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 2 |
67-4520 |
PIPE Price: $118.49 |
| 3 |
67-4540 |
O-RING Price: $4.15 |
| 4 |
42-7510 |
DISCONTINUED Price: Call Us |
| 5 |
67-4530 |
INTAKE SUB-ASM COVER Price: $70.93 |
| 6 |
67-2750 |
COVER ASSEMBLY Price: $375.29 |
| 7 |
42-9430 |
SCREW-HH Price: $0.30 |
| 8 |
67-2670 |
DISCONTINUED Price: Call Us |
| 9 |
42-7510 |
DISCONTINUED Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 10 |
67-2660 |
O-RING Price: $6.73 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 11 |
67-2650 |
OIL FILTER CAP ASSEMBLY Price: $20.14 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
67-2770 |
DISCONTINUED Price: Call Us |
| 13 |
67-2780 |
WASHER Price: $1.35 |
| 14 |
67-2760 |
GASKET Price: $25.95 |
| 15 |
583462301 |
TANK ASM.REAR.2.5GA.DAPCO.E10 This part replaces 532418179. Price: $99.99 |
| 15 |
67-2740 |
FLANGE BOLT This part replaces 67-2140. Price: $7.07 |
| 16 |
67-2680 |
ENGINE HANGER Price: $9.36 |
| 17 |
67-2340 |
BOLT W/WASHER Price: $2.19 |
| 18 |
56-0020 |
EXPANSION PLUG Price: $14.38 |
| 18 |
584248701 |
CAP.ASSY.FUEL.3".N-EPA.BLK.428 Price: $14.99 |
| 19 |
86-6240 |
PLUG-TAPERED This part replaces 67-2570. Price: $5.11 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 20 |
70-8750 |
DISCONTINUED Price: Call Us |
| 21 |
42-9110 |
GASKET Price: $29.21 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
42-9570 |
STUD Price: $2.57 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 23 |
60-7370 |
BOLT This part replaces 67-4590. Price: $2.75 |
| 24 |
70-8670 |
CYLINDER HEAD GASKET Price: $228.72 |
| 25 |
112-8435 |
GASKET-EXHAUST MANIFOLD This part replaces 67-4570. Price: $9.18 |
| 26 |
67-4700 |
GLOW LAMP Price: $117.35 |
| 27 |
70-8660 |
DISCONTINUED Price: Call Us |
| 28 |
587044860 |
HOSE.1/4".LOW.PERM.FUEL.LN.60" This part replaces 587044660. Price: $17.99 |
| 28 |
93-3526 |
SWITCH This part replaces 67-4500. Price: $177.42 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
93-3527 |
GASKET This part replaces 67-4490. Price: $4.82 |
| 30 |
67-4460 |
GASKET-FITTING, THERMOSTAT Price: $4.73 |
| 31 |
67-4450 |
FITTING-THERMOSTAT Price: $266.48 |
| 32 |
67-4470 |
DISCONTINUED Price: Call Us |
| 33 |
67-2330 |
BOLT Price: $2.25 |
| 34 |
67-4510 |
GUAGE-TEMP, WATER Price: $151.90 |
| 35 |
43-2710 |
O-RING Price: $6.47 |
| 36 |
67-4480 |
BY-PASS PIPE Price: $15.39 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
67-5050 |
THERMOSTAT (F/W) Price: $85.97 |
| 38 |
67-4680 |
GLOW PLUG Price: $56.05 |
| 39 |
67-4690 |
GLOW PLUG PLATE Price: $11.69 |
| 40 |
99-1801 |
CAP - SEALING (DIA 20) This part replaces 67-2710. Price: $13.58 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 41 |
67-2700 |
VALVE GUIDE Price: $30.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 42 |
67-2730 |
BOLT Price: $13.81 |
| 43 |
67-4550 |
INTAKE MANIFOLD GASKET Price: $15.80 |
| 44 |
67-4430 |
GASKET-FITTING, WATER OUTLET Price: $4.75 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 45 |
67-4420 |
DISCONTINUED Price: Call Us |
| 46 |
67-2330 |
BOLT Price: $2.25 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
