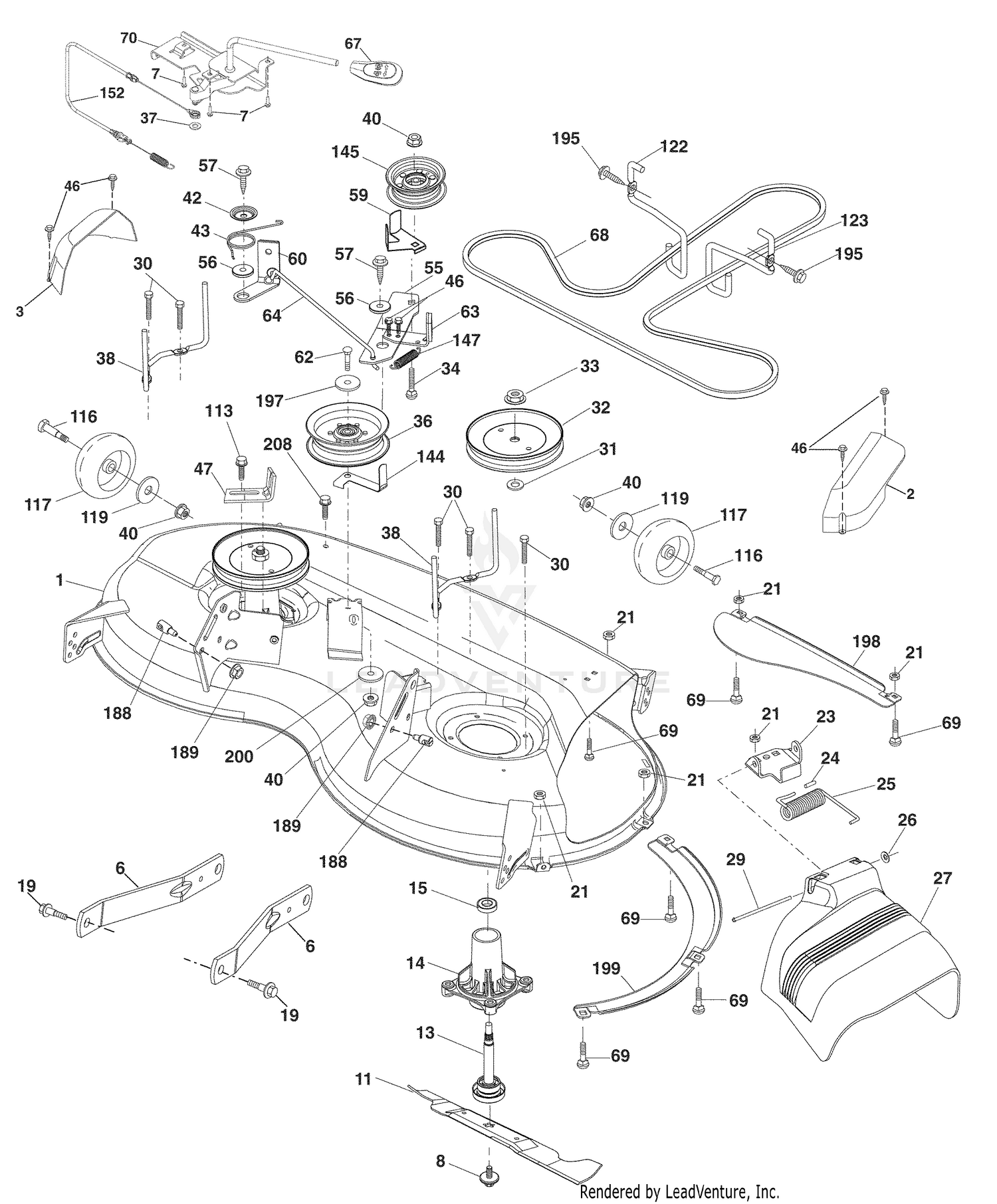

| Ref | Part Number | Description |
|---|
| 1 |
547745901 |
KIT.SVC.DECK.WELD.46.TEX_428 This part replaces 532410863. Price: $449.99 |
| 1 |
65-9940 |
SPRING Price: $4.01 |
| 2 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 2 |
65-9930 |
CAP & PLUNGER ASM Price: $77.47 |
| 3 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 3 |
532405507 |
COVER.MANDREL.LH.46" Price: $19.99 |
| 4 |
284-3 |
PLUG Price: $7.14 |
| 5 |
65-9670 |
SPRING-COMPRESSION Price: $6.77 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
65-9580 |
SPRING Price: $2.76 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 7 |
65-9560 |
ADJUSTMENT KNOB ASM Price: $190.35 |
| 8 |
2410-68 |
COVER-PIN Price: $0.38 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 9 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 10 |
65-9550 |
CAP Price: $28.33 |
| 11 |
65-9830 |
RAMP-QUICK UP Price: $128.27 |
| 12 |
70-7470 |
MTG BLOCK (MODIFIED) Price: $92.44 |
| 13 |
3290-271 |
RIVET-POP Price: $0.25 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 14 |
94-6346 |
PLATE - CAUTION This part replaces 65-9950. Price: $12.27 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
65-9810 |
SPRING-ADJUSTMENT Price: $11.26 |
| 16 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 17 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 18 |
65-9860 |
BEARING Price: $7.60 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
65-9820 |
SPACER Price: $2.09 |
| 20 |
65-9330 |
SPACER Price: $2.58 |
| 21 |
251-328 |
BEARING-BALL Price: $14.66 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
65-9350 |
ADAPTER Price: $183.35 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
3289-19 |
SCREW-FH Price: $1.42 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
3253-12 |
WASHER-LOCK/SP Price: $0.25 |
| 27 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 28 |
3274-13 |
SCREW-HSH Price: $3.19 |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 30 |
65-9710 |
BELT COVER Price: $166.13 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 31 |
65-9890 |
BOLT-CARR.MOD. Price: $66.84 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 32 |
65-9340 |
BOLT-SHOULDER Price: $10.02 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 33 |
65-9320 |
IDLER Price: $33.55 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 34 |
65-9980 |
SPACER Price: $13.03 |
| 35 |
65-9700 |
BELT-DRIVE Price: $15.96 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 36 |
65-9290 |
PULLEY-DRIVEN Price: $251.33 |
| 37 |
3274-22 |
SCREW-HSH Price: $0.68 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 38 |
589676103 |
KEEPER 42 MANDREL BELT FOR 6.2 This part replaces 532199189. Price: $6.99 |
| 39 |
65-9310 |
DISCONTINUED Price: Call Us |
| 40 |
251-327 |
BEARING-BALL Price: $21.22 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
65-9270 |
DISCONTINUED Price: Call Us |
| 42 |
32120-18 |
E-RING Price: $0.97 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 43 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 44 |
92-3046 |
SPACER This part replaces 65-9300. Price: $36.62 |
| 45 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 46 |
3274-86 |
SCREW-HSH Price: $1.76 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 60 |
532199471 |
ARM BRAKE MOWER RH 38" Price: $14.99 |
| 62 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $14.99 |
| 64 |
532405139 |
LINKAGE.ASM.BRAKE.CLEAR.ZINC This part replaces 532405138. Price: $14.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $49.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX Price: $71.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
531169501 |
SERVICE KIT BELT KEEPER This part replaces 532197258. Price: $4.99 |
| 123 |
531169701 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532197259. Price: $6.99 |
| 144 |
531169801 |
SERVICE KIT BELT KEEPER This part replaces 532199204. Price: $4.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532401872 |
SPRING RETURN Price: $4.99 |
| 152 |
532435110 |
CABLE.CLUTCH.CABLE.W/SPRING This part replaces 532408319. Price: $32.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 197 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 198 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 199 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 200 |
596135501 |
Washers This part replaces 532413524. Price: $4.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
