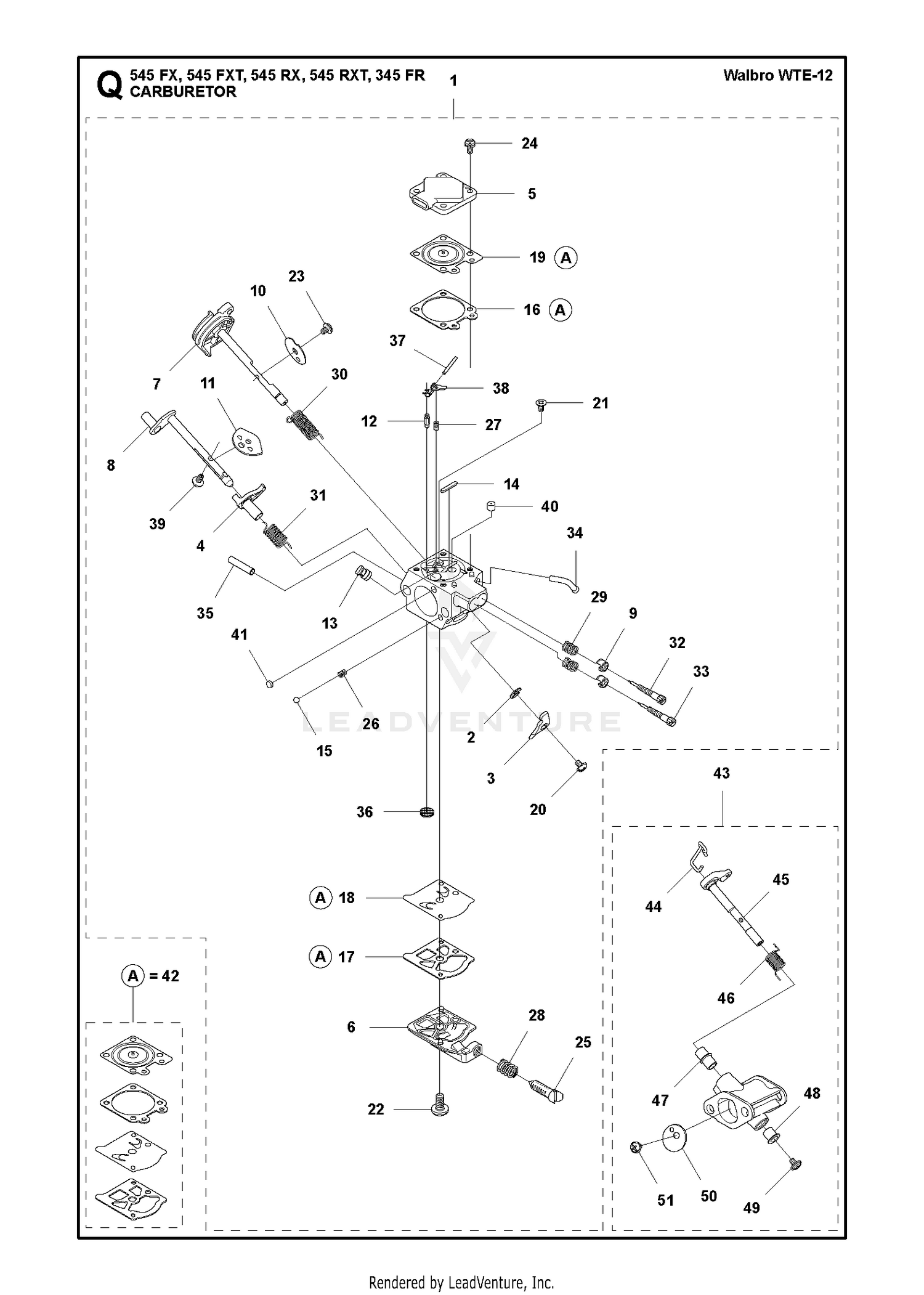

CARBURETOR
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 502119801 | CLIPS This part replaces 505316736. Price: $7.99 |
| 3 | 575463701 | LEVER Price: $4.99 |
| 4 | 544177701 | LEVER Price: $3.99 |
| 5 | 574358101 | COVER Price: $8.99 |
| 6 | 503584301 | COVER Price: $5.99 |
| 7 | 577016701 | SHAFT ASSY Price: $6.99 |
| 8 | 544044001 | SHAFT Price: $11.99 |
| 9 | 544970801 | LIMITER CAP Price: $3.99 |
| 10 | 503935101 | THROTTLE FLAP Price: $7.99 |
| 11 | 537109601 | VALVE Price: $6.99 |
| 12 | 503563401 | INLET NEEDLE Price: $14.99 |
| 13 | 502846801 | NOZZLE ASSY Price: $5.99 |
| 14 | 502846901 | PLUG Price: $8.99 |
| 15 | 501468501 | BALL Price: $6.99 |
| 16 | 504350906 | GASKET Price: $9.99 |
| 17 | 504130906 | GASKET Price: $9.99 |
| 18 | 577016601 | DIAPHRAGM Price: $12.99 |
| 19 | 576684501 | DIAPHRAGM ASSY Price: $27.99 |
| 20 | 501468701 | SCREW Price: $6.99 |
| 21 | 502847101 | SCREW Price: $6.99 |
| 22 | 501466901 | SCREW Price: $7.99 |
| 23 | 501468701 | SCREW This part replaces 537003401. Price: $6.99 |
| 24 | 537003101 | SCREW Price: $7.99 |
| 25 | 537408201 | SCREW Price: $14.99 |
| 26 | 501468401 | SPRING Price: $6.99 |
| 27 | 501795901 | SPRING Price: $9.99 |
| 28 | 530035121 | IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 30 | 544177601 | SPRING Price: $11.99 |
| 31 | 544971101 | SPRING Price: $8.99 |
| 32 | 502847201 | NEEDLE Price: $5.99 |
| 33 | 502847301 | NEEDLE Price: $4.99 |
| 34 | 577016801 | FITTING Price: $6.99 |
| 35 | 544971601 | FITTING Price: $5.99 |
| 36 | 501666101 | FUEL INLET SCREEN Price: $12.99 |
| 37 | 505520125 | FULCRUM PIN Price: $6.99 |
| 38 | 502847401 | LEVER Price: $3.99 |
| 39 | 544111501 | SCREW Price: $6.99 |
| 40 | 505426901 | JET Price: $8.99 |
| 41 | 503574301 | PLUG WELCH Price: $4.99 |
| 42 | 515999601 | KIT Price: $11.99 |
| 43 | 574297901 | HOUSING Price: $19.99 |
| 44 | 522543301 | LINK Price: $4.99 |
| 45 | 574323901 | SHAFT Price: $9.99 |
| 46 | 544971801 | SPRING Price: $4.99 |
| 47 | 501021901 | BUSHING Price: $2.99 |
| 48 | 501022001 | BUSHING Price: $2.99 |
| 49 | 503625201 | SCREW This part replaces 503515501. Price: $0.55 |
| 50 | 522543501 | VALVE Price: $5.99 |
| 51 | 501468701 | SCREW This part replaces 537003401. Price: $6.99 |
