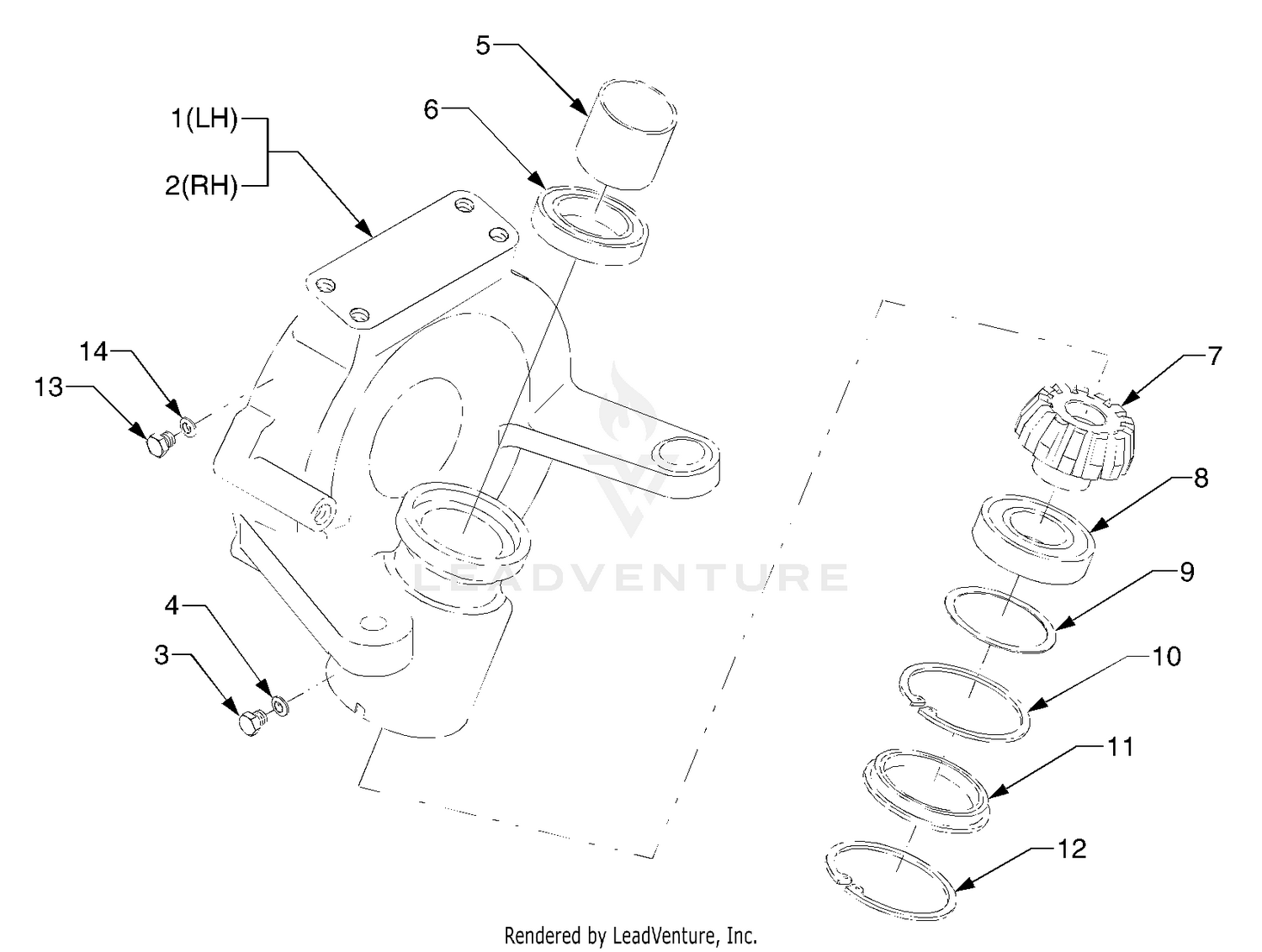

Front Axle Case Group
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-2453 | SEAT KIT This part replaces 92-8976. Price: $303.45 |
| 1 | DD-T2620-43636 | CASE-FRONT AXLE Not Available Price: |
| 2 | 322-6 | SCREW-HH Price: $0.45 |
| 2 | DD-T2620-43646 | CASE-FRONT AXLE Not Available Price: |
| 3 | 2412-133 | CLAMP-R Price: $3.19 |
| 3 | DD-06331-35010 | THREADED PLUG Not Available Price: |
| 4 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 4 | DD-04717-01000 | SEAL WASHER Not Available Price: |
| 5 | 74-0720 | TUBE-MANUAL Price: $22.99 |
| 5 | DD-T2630-43601 | AXLE BUSHING CASE Not Available Price: |
| 6 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 6 | DD-T4520-43381 | THRUST BEARING BAL Not Available Price: |
| 7 | 3234-14 | SCREW-HHF Price: $0.61 |
| 7 | DD-T2620-43521 | BEVEL GEAR 11T Not Available Price: |
| 8 | 92-8972 | CLAMP-SEAT Price: $13.28 |
| 8 | DD-08101-06208 | BALL BEARING Not Available Price: |
| 9 | 93-7251 | DECAL-BLANK Price: $11.65 |
| 9 | 95-0646 | DECAL-SERVICE Price: $17.82 |
| 9 | DD-T4520-43011 | SHIM-PINION GEAR 0 Not Available Price: |
| 10 | 74-0340 | CUSHION-RUBBER Price: $4.39 |
| 10 | DD-04611-00800 | SNAP RING Not Available Price: |
| 11 | 95-0637-03 | PLATE-SEAT This part replaces 95-0637. Price: $109.04 |
| 11 | DD-T4620-43541 | SEAL-DUST AXLE Not Available Price: |
| 12 | 92-8973 | ANGLE Price: $11.98 |
| 12 | DD-04611-00920 | SNAP RING Not Available Price: |
| 13 | DD-34150-14261 | DRAIN PLUG Not Available Price: |
| 28 | 95-5840-03 | SHIELD-BASE, SEAT This part replaces 95-5840. Price: $46.54 |
| 30 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 31 | 321-4 | SCREW-HH Price: $0.99 |
| 33 | 86-7610-03 | MOUNT-SEAT This part replaces 86-7610. Price: $54.09 |
| 34 | 51-0790 | ADJUSTER-SEAT, LH Price: $127.92 |
| 35 | 51-0780 | SLIDER-SEAT Price: $116.02 |
