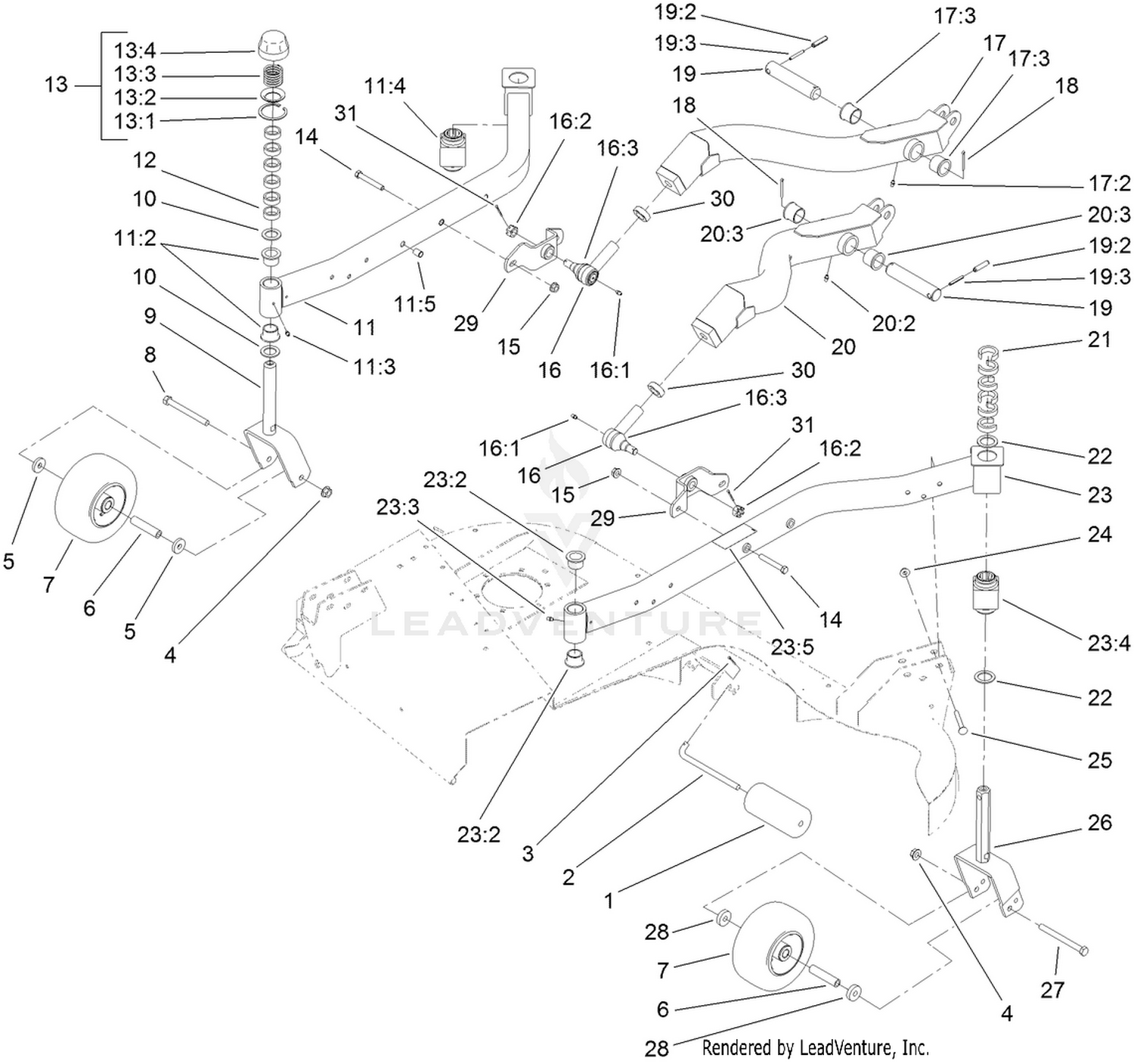

| Ref | Part Number | Description |
|---|
| 1 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 2 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 3 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 4 |
32128-23 |
NUT-HF Price: $1.51 |
| 5 |
70-8040 |
WASHER Price: $5.46 |
| 6 |
68-8980 |
SPANNER-TIRE Price: $8.72 |
| 7 |
99-1268 |
CASTOR WHEEL ASM Price: $123.15 |
| 8 |
325-19 |
SCREW-HH Price: $2.57 |
| 9 |
98-7921-01 |
FORK-CASTOR ASM Price: $113.33 |
| 10 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 11 |
99-1262 |
RH CASTOR ARM ASM Price: $720.44 |
| 12 |
63-0070 |
SPACER Price: $1.82 |
| 13 |
92-8862 |
HOC CAP ASM Price: $71.16 |
| 14 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 15 |
32128-42 |
NUT-HF Price: $0.98 |
| 16 |
86-8100-01 |
BALL JOINT ASM This part replaces 86-8100. Price: $137.53 |
| 17 |
99-1254 |
RH LIFT ARM ASM Price: $930.19 |
| 18 |
3272-19 |
PIN-COTTER Price: $0.31 |
| 19 |
98-2330 |
PIVOT PIN ASM Price: $62.61 |
| 20 |
99-1257 |
LH LIFT ARM ASM Price: $930.19 |
| 21 |
92-8866 |
SPACER Price: $8.43 |
| 22 |
92-1765 |
WASHER-THRUST Price: $2.57 |
| 23 |
99-1265 |
LH CASTOR ARM ASM Price: $720.44 |
| 24 |
32128-19 |
NUT-HF Price: $0.99 |
| 25 |
3231-10 |
SCREW-CARR Price: $1.22 |
| 26 |
92-5578-01 |
FORK-CASTOR, REAR ASM Price: $148.46 |
| 27 |
325-22 |
SCREW-HH Price: $4.26 |
| 28 |
99-1291 |
SPACER Price: $17.18 |
| 29 |
98-7944 |
MOUNT-BALLJOINT This part replaces 98-7944-01. Price: $141.04 |
| 30 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
