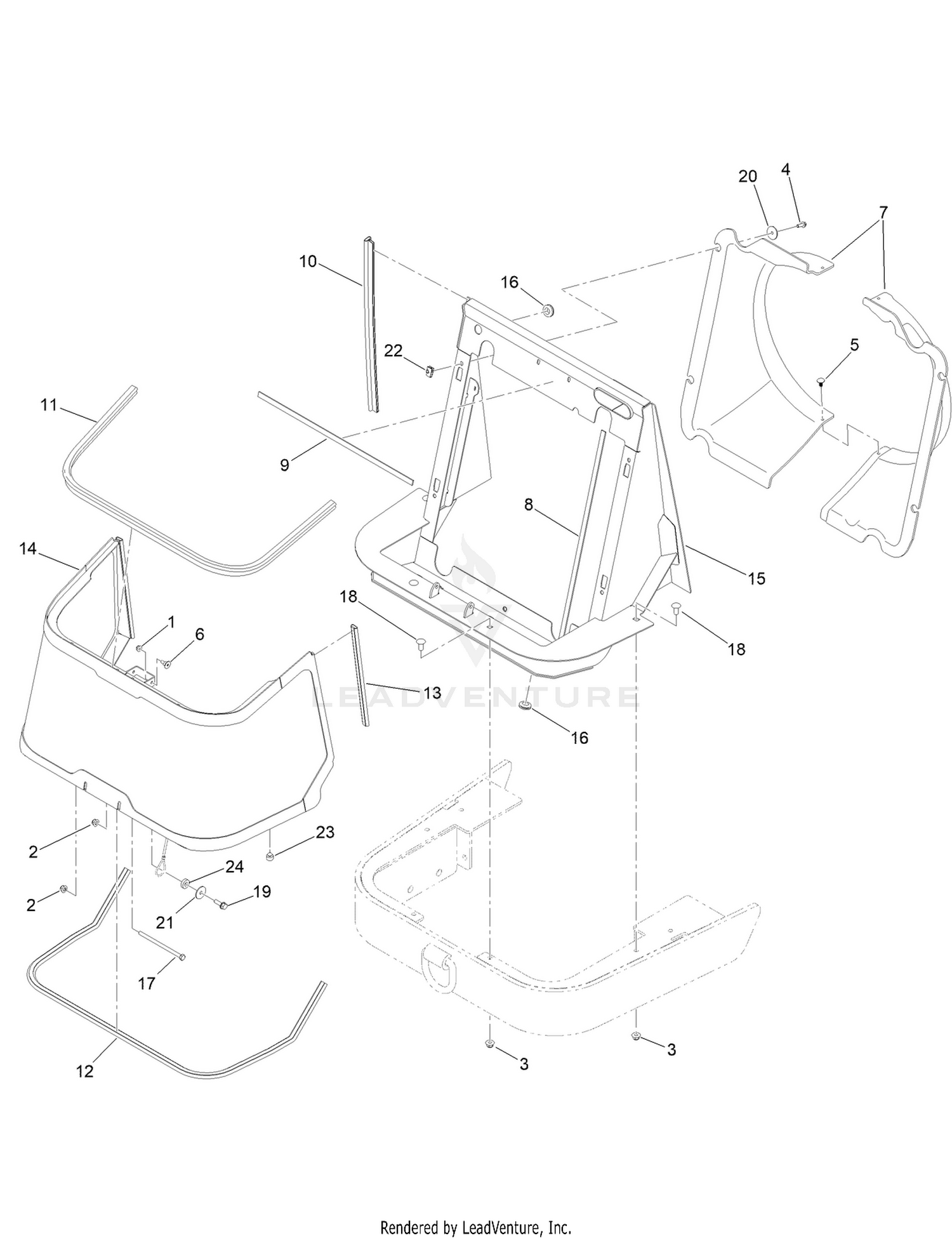

Screen and Support Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-7201 | NUT-HF Price: $0.69 |
| 2 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 3 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 4 | 115-5103 | SCREW-HHF Price: $0.34 |
| 5 | 117-2382 | PLUG-PLASTIC Price: $0.69 |
| 6 | 125-1122 | SCREW Price: $2.24 |
| 7 | 136-5166 | FAN SHROUD ASM Price: $306.06 |
| 8 | 136-9862 | SEAL-FOAM Price: $12.65 |
| 9 | 136-9865 | SEAL-FOAM Price: $11.32 |
| 10 | 138-2025 | SEAL-BULB Price: $23.63 |
| 11 | 138-2026 | SEAL-BULB Price: $44.45 |
| 12 | 138-2027 | SEAL-BULB Price: $18.22 |
| 13 | 138-2028 | SEAL-BULB Price: $5.15 |
| 14 | 138-2030-03 | SCREEN Price: $792.55 |
| 15 | 138-4175-01 | MOUNT-COOLING Price: $780.84 |
| 16 | 237-124 | GROMMET Price: $2.30 |
| 17 | 322-49 | BOLT-HH Price: $2.57 |
| 18 | 3231-27 | SCREW-CARR Price: $0.54 |
| 19 | 3234-29 | SCREW-HHF Price: $1.84 |
| 20 | 3256-55 | WASHER-FLAT Price: $3.69 |
| 21 | 3256-57 | WASHER-FLAT Price: $0.41 |
| 22 | 107069 | CLIP Price: $1.79 |
| 23 | 107-8042 | BUMPER-RUBBER Price: $1.30 |
