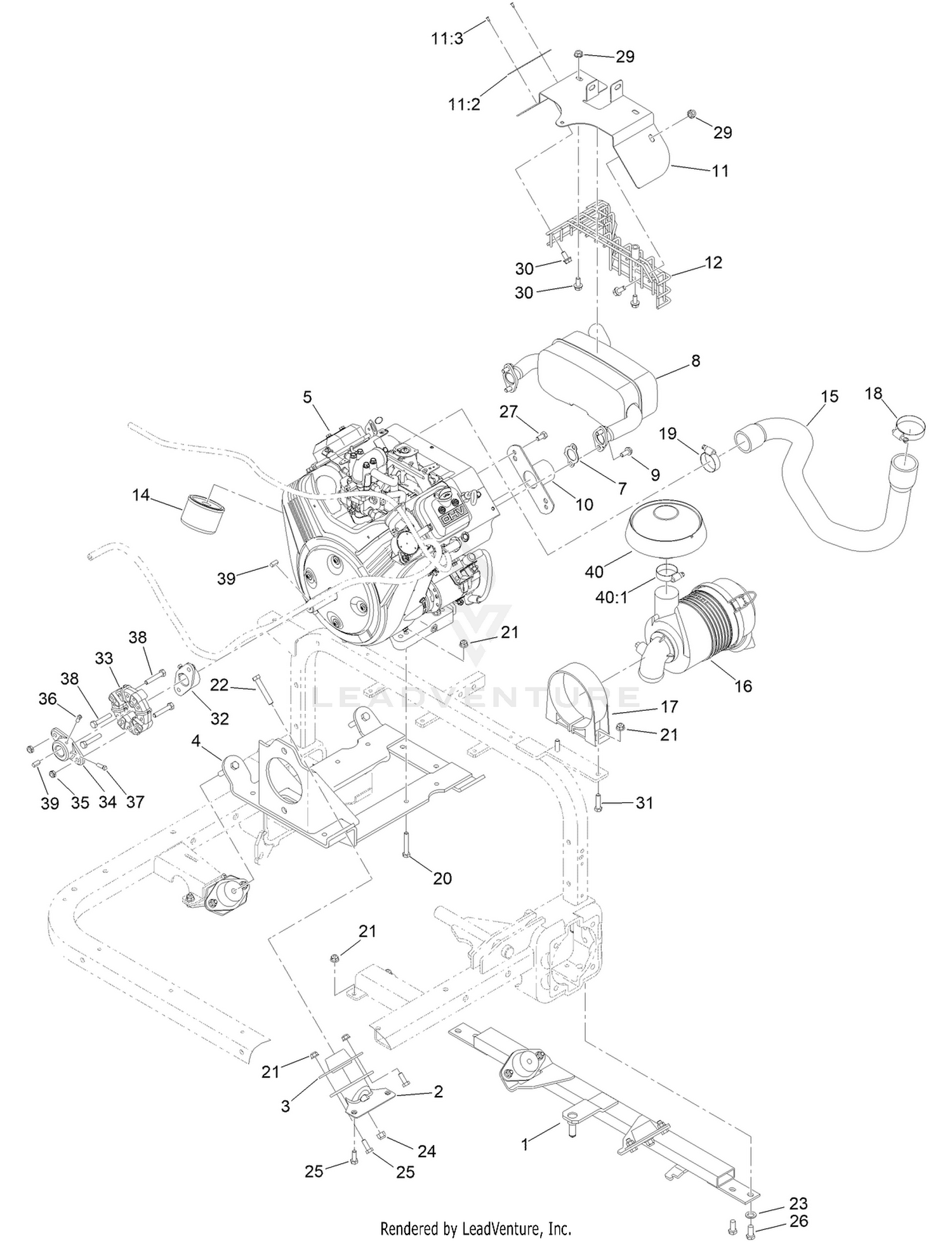

| Ref | Part Number | Description |
|---|
| 1 |
120-3461-01 |
MOUNT-ENGINE Price: $335.93 |
| 2 |
125-1954 |
MOUNT-FRONT Price: $61.78 |
| 3 |
121-9076 |
MOUNT-ENGINE Price: $37.76 |
| 4 |
108-2809-0P |
SUPPORT-ENGINE Price: $494.14 |
| 7 |
94-5844 |
GASKET This part replaces 94-3449. Price: $8.03 |
| 8 |
120-3476 |
MUFFLER-DUAL INLET Price: $131.65 |
| 9 |
94-5300 |
SCREW-HHF Price: $0.80 |
| 10 |
95-0632-03 |
COVER Price: $35.30 |
| 11 |
119-7191 |
MUFFLER SHIELD ASM Price: $66.63 |
| 12 |
110-6348-03 |
SHIELD-EXHAUST Price: $224.09 |
| 14 |
107-7817 |
FILTER-OIL, ENGINE Price: $13.42 |
| 15 |
117-9576 |
HOSE-AIR Price: $108.34 |
| 16 |
93-2190 |
AIR CLEANER ASM Price: $217.17 |
| 17 |
95-5806 |
BRACKET-MOUNTING Price: $28.01 |
| 18 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 19 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 20 |
322-10 |
SCREW-HH Price: $0.70 |
| 21 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 22 |
323-11 |
SCREW-HH Price: $1.08 |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 25 |
322-4 |
SCREW-HH Price: $0.35 |
| 26 |
323-5 |
SCREW-HH Price: $0.41 |
| 27 |
3210-2 |
SCREW-HH Price: $0.41 |
| 29 |
32128-25 |
NUT-HF Price: $3.19 |
| 30 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 31 |
322-6 |
SCREW-HH Price: $0.45 |
| 32 |
110-5236 |
HUB-ENGINE Price: $30.97 |
| 33 |
119-0652 |
COUPLER-RUBBER Price: $72.52 |
| 34 |
110-5227 |
HUB-PUMP Price: $38.93 |
| 35 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 36 |
3241-7 |
SCREW-SQH Price: $3.39 |
| 37 |
3241-6 |
SCREW-SQH Price: $4.80 |
| 38 |
322-9 |
SCREW-HH Price: $3.09 |
| 39 |
85-9020 |
KEY-SQUARE Price: $3.11 |
| 40 |
136-7859 |
RAIN CAP KIT Price: $23.88 |
