| Ref | Part Number | Description |
|---|
| 1 |
115-8047-01 |
NO. 3 LIFT ARM ASM This part replaces 92-9291-01. Price: $1,059.77 |
| 1 |
157032 |
Decal Oper Price: Call Us |
| 2 |
68-6480 |
BUSHING-FLANGE Price: $3.19 |
| 3 |
186164 |
Decal Hood LH Price: Call Us |
| 3 |
325-17 |
SCREW-HH Price: $2.90 |
| 4 |
189033 |
Decal Side Panel Logo Price: Call Us |
| 4 |
323-7 |
SCREW-HH Price: $0.65 |
| 5 |
189489 |
Decal HP Engine Price: Call Us |
| 6 |
170563 |
Decal Warning, Keep Hand Away Price: Call Us |
| 6 |
52-6180 |
SPACER Price: $1.65 |
| 7 |
189118 |
Decal Replacement Parts Price: Call Us |
| 7 |
60-3250 |
WASHER Price: $5.21 |
| 8 |
179128 |
Decal Deck "B" 42" Price: Call Us |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 9 |
172740 |
Decal Fender Logo Price: Call Us |
| 9 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 10 |
157140 |
Decal Fender Danger E/F Price: Call Us |
| 10 |
92-9246-03 |
A-FRAME Price: $525.35 |
| 11 |
172743 |
Decal Ins Strg Whl Price: Call Us |
| 11 |
325-7 |
SCREW-HH Price: $1.53 |
| 12 |
115-8046-01 |
NO. 2 LIFT ARM ASM This part replaces 92-9290-01. Price: $933.22 |
| 12 |
173587 |
Decal Fend Reflector Rh Price: Call Us |
| 13 |
173589 |
Decal Fend Reflector Lh Price: Call Us |
| 14 |
160396 |
Decal V-Belt Schematic Price: Call Us |
| 14 |
60-1280 |
PIN Price: $3.53 |
| 15 |
58-4380 |
PIN Price: $25.11 |
| 16 |
186163 |
Decal Hood Rh Price: Call Us |
| 17 |
115-8017 |
REEL MOTOR KIT This part replaces 93-1412. Price: $1,999.51 |
| 18 |
3246-17 |
SETSCREW-HSH Price: $0.47 |
| 19 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 20 |
145005 |
Decal Bat Dan/Psn Price: Call Us |
| 20 |
323-14 |
SCREW-HH Price: $1.34 |
| 21 |
324-6 |
SCREW-HH Price: $0.81 |
| 26 |
340-87 |
FITTING-ELBOW, 45 DEG Price: $18.39 |
| 31 |
115-8011 |
CYLINDER-HYD This part replaces 104-5225. Price: $784.12 |
| 32 |
93-7331 |
DECAL-WARNING Price: $10.35 |
| 34 |
325-34 |
SCREW-HH Price: $2.37 |
| 37 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |

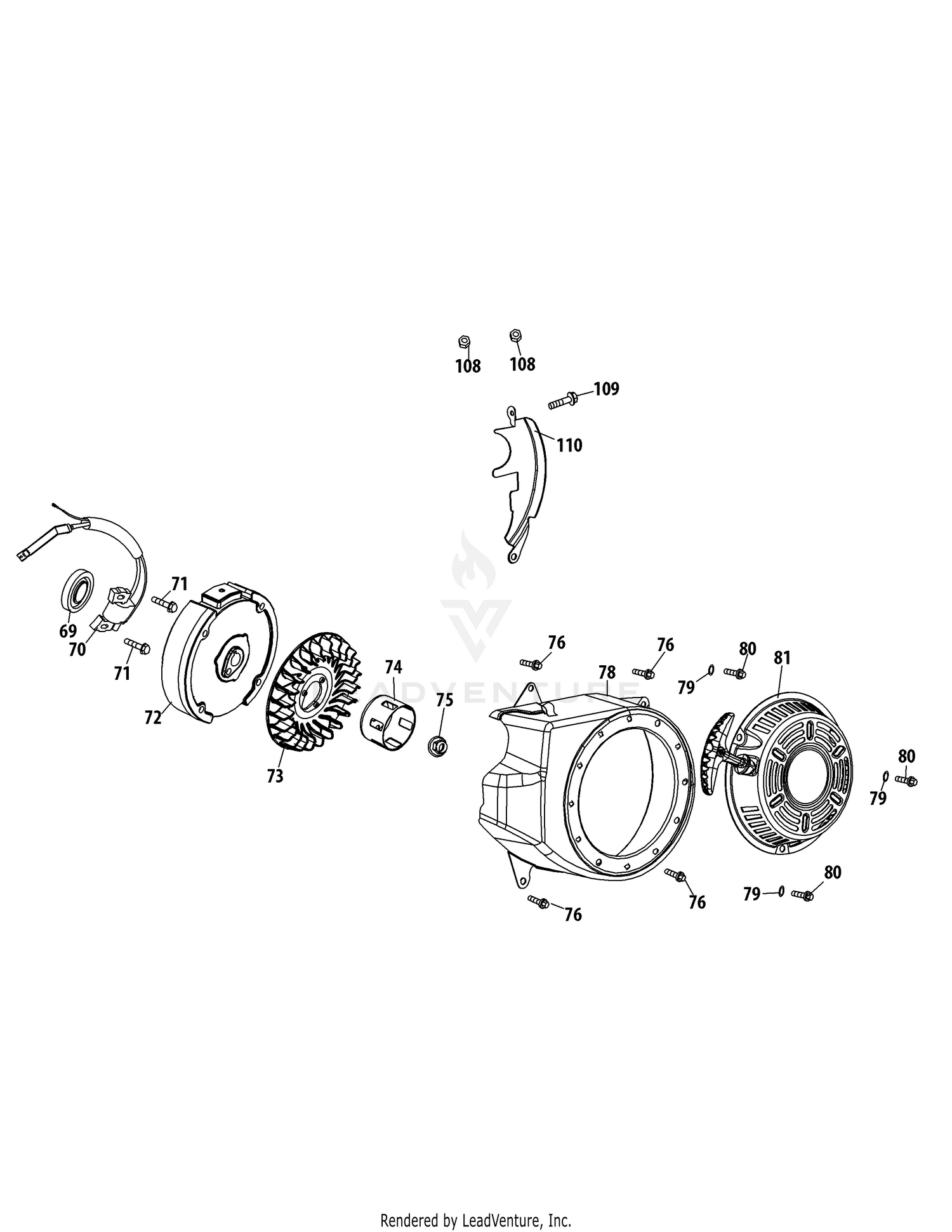

| 69 |
951-12126 |
Oil Seal, 25×?41.25×6 Price: $12.42 |
| 70 |
951-10792 |
Ignition Coil Assembly Price: $84.66 |
| 71 |
710-04919 |
Bolt M6×25 Price: $3.86 |
| 72 |
951-10805 |
Flywheel Price: $117.33 |
| 73 |
951-10909B |
COOLING FAN This part replaces 951-10909. Price: $20.39 |
| 74 |
951-10911 |
Starter Cup Price: $15.19 |
| 75 |
712-04287A |
FLYWHEEL NUT M14-1.5 This part replaces 712-04209. Price: $5.33 |
| 76 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 78 |
951-11583 |
BLOWER HOUSING Price: $84.66 |
| 79 |
736-04455B |
FLAT WASHER This part replaces 736-04455. Price: $5.94 |
| 80 |
710-04974 |
Bolt M6×10 Price: $6.07 |
| 81 |
951-12418 |
Recoil Starter Price: $79.04 |
| 108 |
712-05015 |
Nut M6 This part replaces 712-04212. Price: $5.78 |
| 109 |
710-04918 |
Bolt M6×20 Price: $3.56 |
| 138311 |
Decal |
Handle Lft Height Adjust Price: Call Us 138311 |
| 166960 |
Decal |
By Pass Lt Hydro Price: Call Us 166960 |
| 184310X428 |
Pad |
Footrest LH Price: Call Us 184310X428 |
| 184311X428 |
Pad |
Footrest RH Price: Call Us 184311X428 |
| 191897 |
Manual |
Owner's (English) Price: Call Us 191897 |
