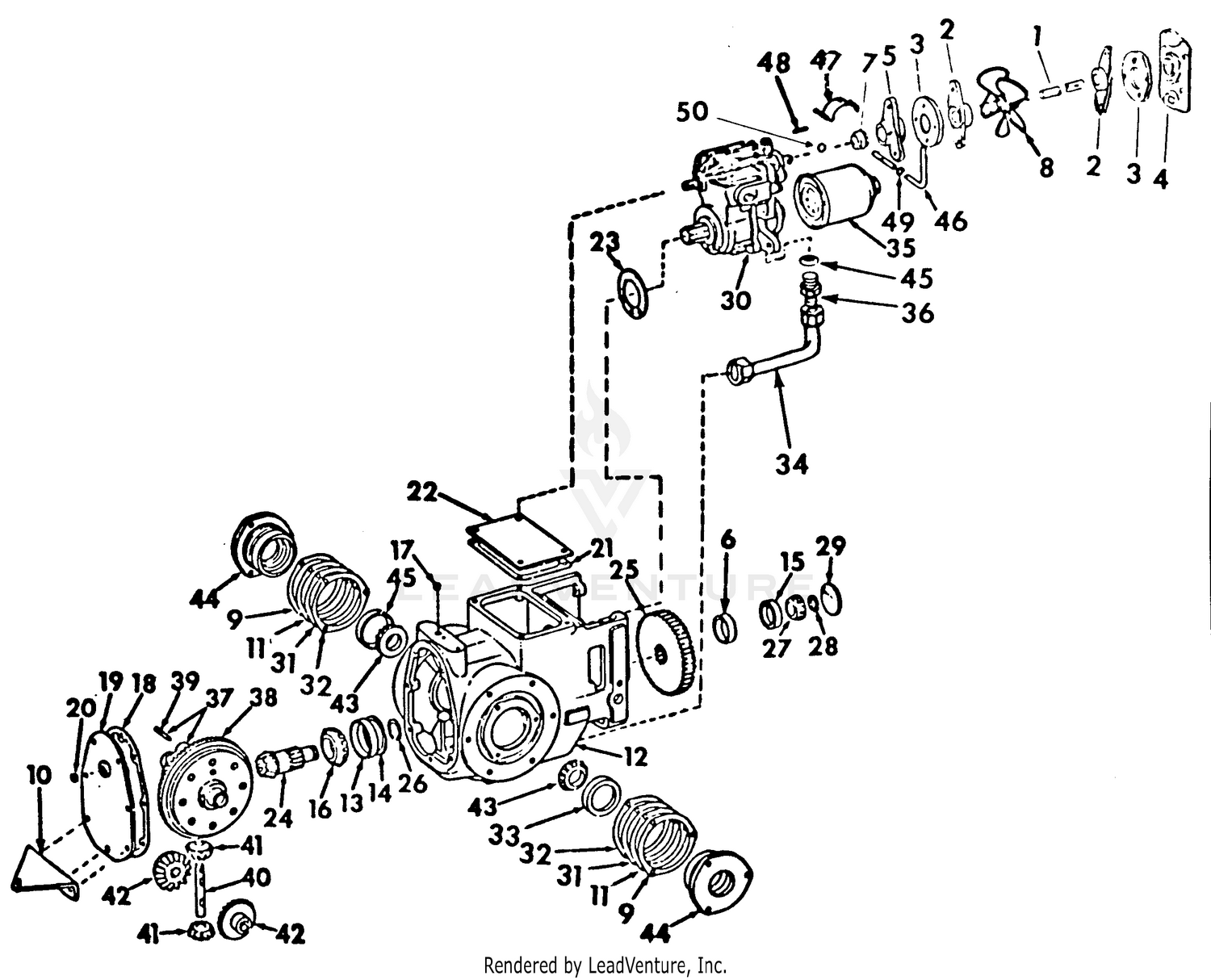

| Ref | Part Number | Description |
|---|
| 1 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 2 |
748-3001 |
ARM-COUPLING Not Available Price: |
| 2 |
93-9313 |
DISCONTINUED Price: Call Us |
| 3 |
32152-10 |
LOCKNUT Price: $0.81 |
| 3 |
722-3000 |
Disc, Flexible Coupling Price: $25.02 |
| 4 |
903-0204 |
DRIVE SHAFT FLANGE ASSEMBLY This part replaces 703-0204. Price: $35.89 |
| 5 |
70-2780 |
PISTON Price: $133.22 |
| 5 |
919-3027 |
COUPLING This part replaces 719-3027. Price: $103.29 |
| 7 |
75-3790 |
SHAFT W/TUBE Price: $205.50 |
| 7 |
941-3004 |
BALL BUSHING This part replaces 741-3004. Price: $44.91 |
| 8 |
IH-547749-R2 |
FAN This part replaces IH-547749-R1. Price: $19.92 |
| 9 |
717-3097 |
SHIM, BEARING RETAINER, .004 Not Available Price: |
| 10 |
703-0401 |
BAR-FIXED DRAW Not Available Price: |
| 11 |
717-3098 |
SHIM, BEARING RETAINER, .007 Not Available Price: |
| 11 |
98-7353 |
DISCONTINUED This part replaces 93-7990. Price: Call Us |
| 13 |
93-7991 |
COLLAR Price: $73.29 |
| 13 |
IH-394083-R91 |
BEARING Not Available Price: |
| 14 |
717-3123 |
SHIM Not Available Price: |
| 15 |
741-04548 |
Cup Bearing This part replaces 741-0372. Price: $7.72 |
| 16 |
IH-394083-R91 |
BEARING Not Available Price: |
| 17 |
727-3025 |
Plug, Breather Price: Call Us |
| 18 |
IH-350837-R3 |
GASKET This part replaces IH-350837-R2. Price: $25.86 |
| 19 |
IH-394089-R11 |
Plate Assy, Rear Cover Price: Call Us |
| 20 |
737-0177 |
DRAIN PLUG Not Available Price: |
| 21 |
IH-394091-R1 |
GASKET Not Available Price: |
| 22 |
IH-394090-R1 |
Cover, Top Price: Call Us |
| 23 |
921-3004 |
GASKET This part replaces 721-3004. Price: $9.36 |
| 24 |
IH-394093-R1 |
Shaft, Bevel Pinion Price: Call Us |
| 25 |
717-3141 |
GEAR-REDUCTION Not Available Price: |
| 26 |
IH-323315-C1 |
RING Not Available Price: |
| 27 |
741-04549 |
Cone Bearing This part replaces 741-0373. Price: $17.28 |
| 28 |
717-3127 |
RETAINER RING Not Available Price: |
| 29 |
726-0216 |
EXPANSION PLUG Not Available Price: |
| 31 |
717-3099 |
Shim, Bearing Retainer, .0149 Price: $32.65 |
| 32 |
717-3100 |
SHIM .028 Not Available Price: |
| 33 |
IH-ST974 |
BEARING Not Available Price: |
| 34 |
927-3008 |
HYDRAULIC TUBE ASSEMBLY Not Available This part replaces 727-3008. Price: |
| 35 |
923-3014 |
Filter, Oil This part replaces 723-3014. Price: $18.90 |
| 36 |
727-3009 |
CONNECTOR-37 DEGREE-7/8-14 Not Available Price: |
| 37 |
IH-223472-C91 |
Case, Diff w/Drive Gear Price: Call Us |
| 38 |
IH-350787-R1 |
GEAR Not Available Price: |
| 39 |
IH-350788-R1 |
PIN Not Available Price: |
| 40 |
IH-350789-R1 |
Shaft, Pinion Price: Call Us |
| 41 |
717-3113 |
PINION-10T Not Available Price: |
| 42 |
None |
Gear, Side |
| 43 |
741-0369 |
CONE BEARING ROLLER Not Available Price: |
| 44 |
IH-376158-R91 |
Cage Assy, Differential Bearing Price: Call Us |
| 45 |
721-3005 |
O-RING Not Available Price: |
| 46 |
IH-545727-R1 |
HANDLE Not Available Price: |
| 47 |
IH-545728-R1 |
Lever, Dump Valve Price: Call Us |
| 48 |
715-3008 |
SPRING PIN1/8X 3/4 HVY Not Available Price: |
| 49 |
735-3008 |
RUBBER GROMMET 328 x 438 Not Available Price: |
| 501691702 |
501691702 |
COMB.TOOL Price: $8.99 |
