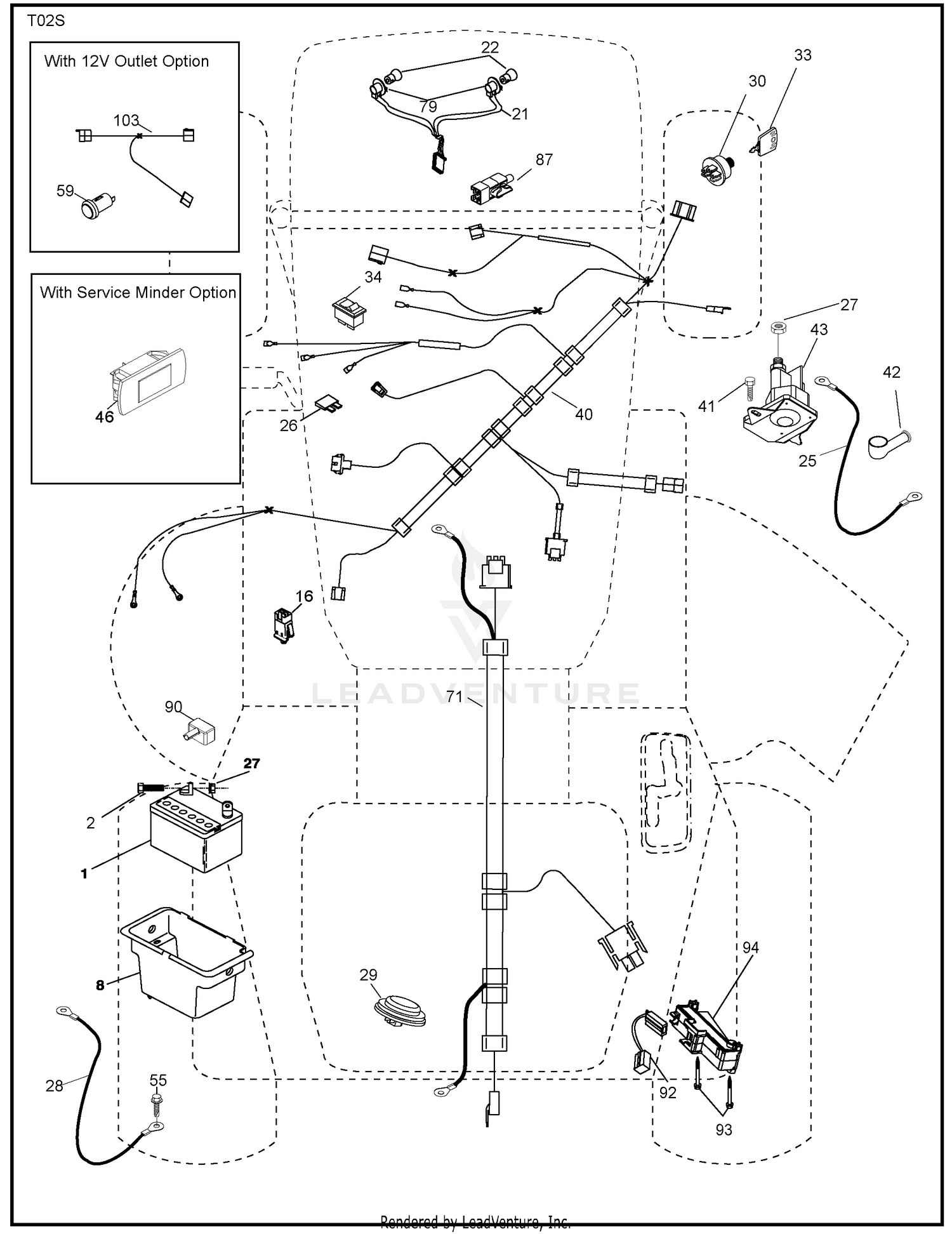

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
59-8140 |
RING Price: $1.44 |
| 4 |
59-8160 |
PLUG Price: $18.66 |
| 5 |
63-4440 |
O-RING Price: $13.18 |
| 6 |
59-7860 |
WASHER Price: $4.31 |
| 7 |
42-1260 |
SEAL KIT This part replaces 42-1220. Price: $31.81 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 8 |
63-4780 |
VALVE-RELIEF Price: $485.19 |
| 9 |
59-8060 |
PLUG Price: $22.35 |
| 10 |
59-8050 |
SPRING Price: $15.65 |
| 11 |
59-8150 |
PAWL Price: $36.37 |
| 12 |
66-5440 |
NUT-HEX Price: $1.07 |
| 13 |
3253-19 |
WASHER-LOCK Price: $0.25 |
| 14 |
63-4860 |
CIRCLIP Price: $28.63 |
| 15 |
63-4510 |
SPRING Price: $38.85 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
59-8230 |
PLUG Price: $47.93 |
| 17 |
66-5420 |
SLEEVE Price: $29.51 |
| 18 |
63-4850 |
PLUNGER Price: $88.33 |
| 19 |
60-4550 |
SWITCH-MICRO Price: $318.29 |
| 20 |
3256-12 |
WASHER-FLAT This part replaces 3256-13. Price: $0.99 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 21 |
66-5430 |
SCREW Price: $10.07 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
63-4830 |
CAPSCREW Price: $0.85 |
| 23 |
59-8070 |
LOCKWASHER Price: $0.49 |
| 24 |
302-66 |
FITTING-GREASE Price: $5.13 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 25 |
63-4820 |
BLOCK-DETENT Price: $275.22 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
63-4840 |
SCREW-DETENT Price: $172.21 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 27 |
59-8100 |
WASHER Price: $8.63 |
| 28 |
532198885 |
CABLE.BLACK.18"REAR.BA Price: $17.99 |
| 28 |
59-8170 |
WASHER Price: $8.09 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 29 |
59-8040 |
SPRING Price: $7.29 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
59-8080 |
WASHER Price: $18.05 |
| 31 |
59-8180 |
WASHER Price: $33.37 |
| 32 |
AU114313A1 |
O-RING This part replaces 59-7780. Price: $2.40 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 33 |
59-8120 |
RING Price: $3.69 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 34 |
59-8190 |
WIPER Price: $10.41 |
| 40 |
532401098 |
HARNESS IGN. DASH Price: $69.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532400449 |
HARNESS.IGN.CHASS.TEX.REAR.BAT Price: $32.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532400725. Price: $4.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
