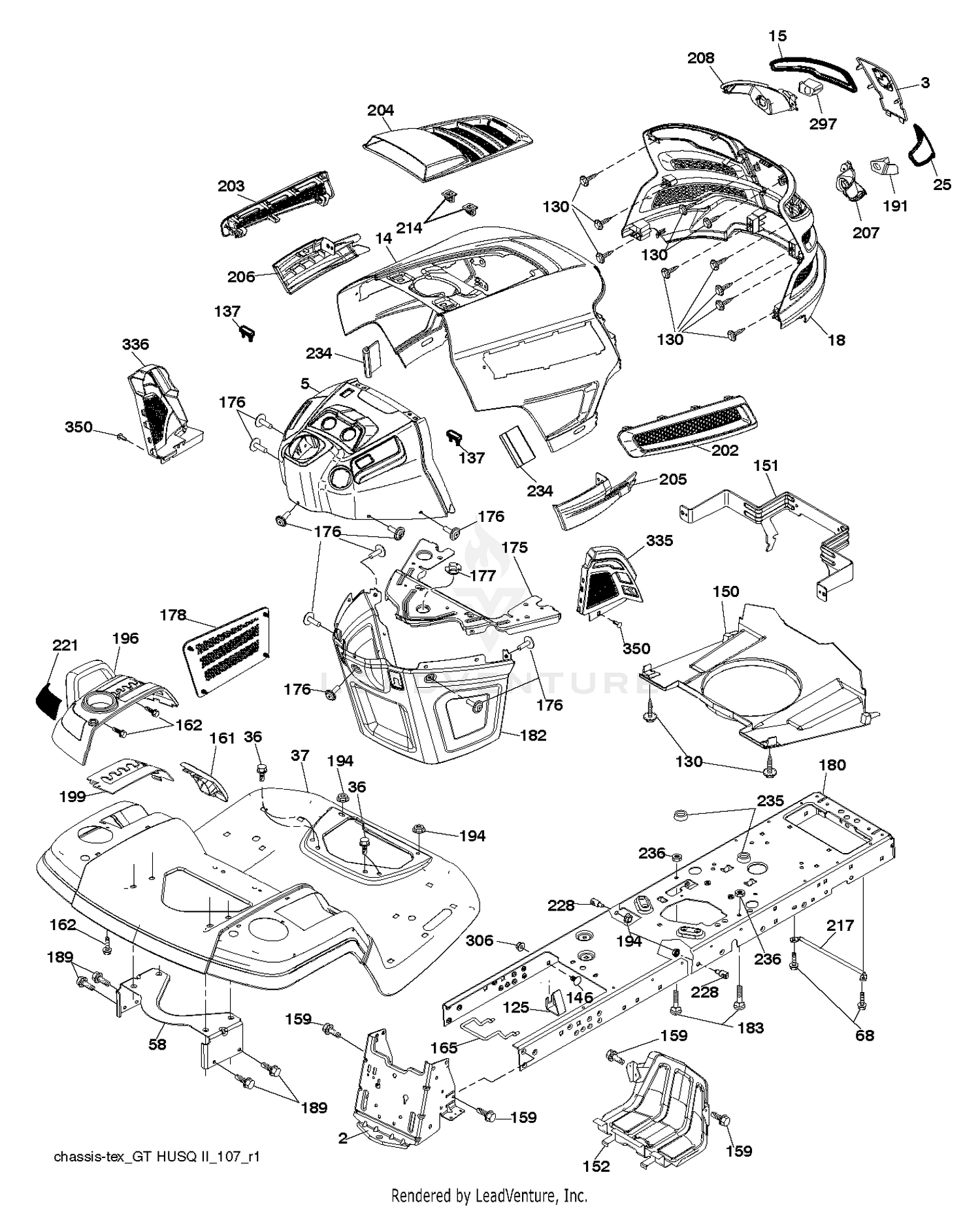

| Ref | Part Number | Description |
|---|
| 1 |
92-0450-03 |
BRACKET-PIN Price: $19.10 |
| 2 |
580434401 |
DRAWBAR.STGT Price: $99.99 |
| 2 |
92-0448 |
PIN-PIVOT Price: $100.36 |
| 3 |
106-5247-03 |
TRACTION PEDAL ASM Price: $244.19 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 4 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 5 |
532437470 |
DASH.UPP.GT2.DUAL.RD.PTO.MCHOK Price: $59.99 |
| 5 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 6 |
80-7730 |
SPACER Price: $1.97 |
| 7 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 8 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 9 |
3220-3 |
NUT-HJ Price: $0.28 |
| 10 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 11 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 12 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 13 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 14 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532439725. Price: $74.99 |
| 15 |
104-7201 |
NUT-HF Price: $0.69 |
| 16 |
321-9 |
SCREW-HH Price: $0.27 |
| 17 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 18 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 18 |
597247201 |
Grilles This part replaces 532440653. Price: $84.99 |
| 19 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 20 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 21 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 22 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 23 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 24 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ Price: $219.99 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532194330 |
SUPPORT.TANK.REAR.B/TE Price: $17.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 532194260. Price: $229.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 196 |
532439674 |
CONSOLE.ASM.DECKLIFT.HUSQGT.DL Price: $84.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 This part replaces 532435714. Price: $22.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
